FS-TSDO-04UNI | HONEYWELL Safe Digital Output Module

in stock#

Brand/ Manufacturer:
HONEYWELL
Dimensions:
6x7x5.4cm
Weight:
0.14 kg
Country of Origin: :
USA
Description:
HONEYWELL FS-TSDO-04UNI Safe Digital Output Module

Inquiry now

Mfr. Part Number:	FS-TSDO-04UNI

Manufacturer:	HONEYWELL

Description:	HONEYWELL FS-TSDO-04UNI Safe Digital Output Module

Full Description:	The FS-TSDO-04UNI Safe Digital Output Module is equipped with four output channels

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for HONEYWELL. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

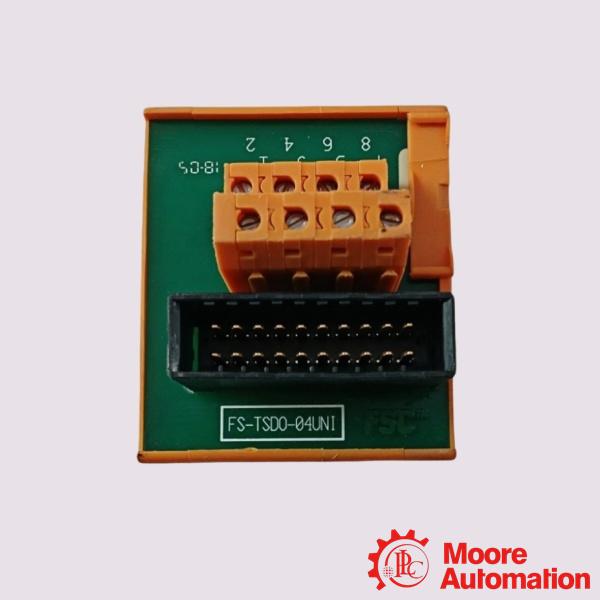

The FS-TSDO-04UNI Safe Digital Output Module is the interface between the system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). The four channels of a redundant pair of SDO-04x module(s) or SDOL-04x module(s) can be connected to the FS-TSDO-04UNI module via the system interconnection cable SICC-0001/Lx. The FTA module has a universal snap-in provision for standard DIN EN rails, and screw terminals for connecting field wiring.

The FS-TSDO-04UNI module is equipped with four output channels and supports a maximum voltage of 50 Vdc, ensuring compatibility with a wide range of field devices. The screw terminals are designed to accommodate wires up to 2.5 mm² (AWG 14), providing secure and stable connections for safe and dependable operation.

Application:

Oil and gas: Electromagnetic coils driving large emergency shut-off valves (SSV/SDV) in refineries.
Petrochemical and large chemical plants: Driving high-power audio-visual alarm arrays, smoke exhaust fan starters, or fire extinguishing agent release valves.
Offshore platforms and deepwater operations: Control of remotely located underwater valves.
Electricity and nuclear power industry: Boiler fuel cut-off systems and turbine trip systems in power plants.

Frequently Asked Questions (FAQ)

Q:What is the tightening torque for the HONEYWELL FS-TSDO-04UNI?
A:The tightening torque is 0.5 Nm (0.37 ft-lb).

Q:How many channels does the HONEYWELL FS-TSDO-04UNI module have?
A:The HONEYWELL FS-TSDO-04UNI module has 4 output channels.

Q:How are the FS-TSDO-04UNI packaged?
A:FS-TSDO-04UNI packaging generally involves multiple layers of protection to ensure safe transit.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: FS-TSDO-04UNI
Number of Channels	4
Maximum Voltage	50 Vdc
Maximum Continuous Current per Channel	2 A
Max. Wire Diameter	2.5 mm² (AWG 14)
Strip Length	7 mm (0.28 in)
Tightening Torque	0.5 Nm (0.37 ft-lb)
Approvals	CE, TUV, UL, CSA, FM
