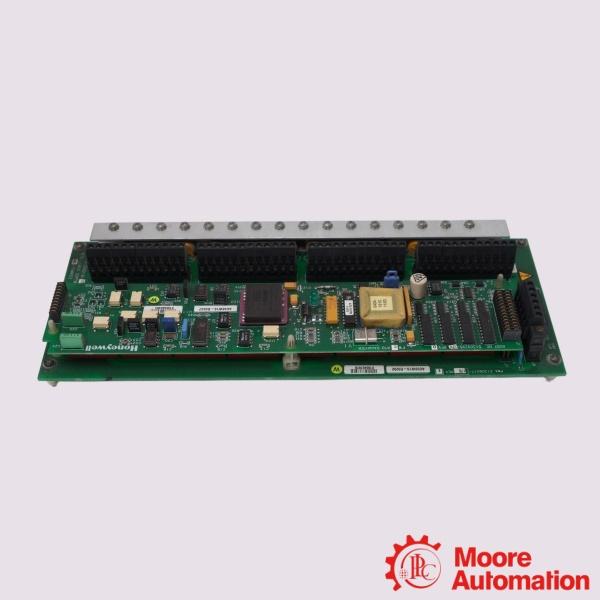

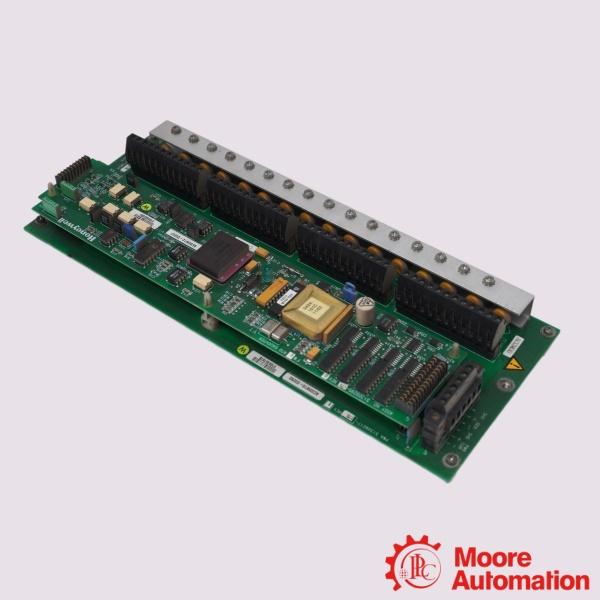

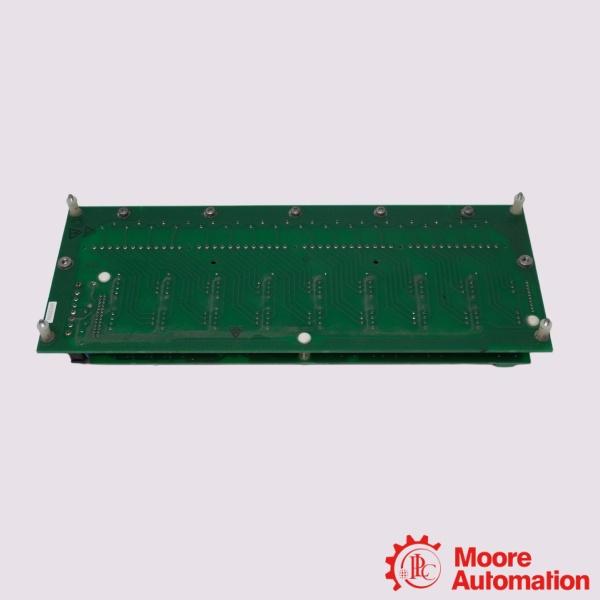

Honeywell MC-TAMR03 51309223-175 LLMux RTD Field Termination Assembly

Description

The Honeywell MC-TAMR03 51309223-175 is a conformally coated LLMux RTD Field Termination Assembly for Honeywell Process Manager and Experion PKS systems. It supports termination for as many as 16 RTD input channels and forms the connection between field wiring and the matching LLMux I/O Processor. During installation, the assembly is used together with compatible LLMux power adapters and connection cables that make up the complete hardware arrangement.  In normal operation, the assembly keeps field wiring organized while allowing RTD signals to pass to the control system through the associated LLMux hardware.

Parameter

Model: MC-TAMR03 51309223-175 LLMux RTD Field Termination Assembly
Wiring Connection: 3-Wire or 4-Wire RTD configuration per channel
Number of Channels: 16 Input Channels
Operating Voltage: 24 VDC
Isolation Voltage: 500 VAC channel-to-ground isolation
Operating Temperature: 0 to 60 °C
Storage Temperature: -40 to 85 °C
Relative Humidity: 5% to 95% RH (Non-condensing)

Frequently asked questions

Q:What is the function of the Honeywell MC-TAMR03 51309223-175?
A:It provides a termination point for field RTD signals and connects those signals to a compatible Honeywell LLMux I/O Processor within the control system.

Q:Which Honeywell control systems can use this module?
A:The module is intended for Honeywell Process Manager and Experion PKS systems that support LLMux field termination assemblies.

Q:How many RTD input channels does the MC-TAMR03 support?
A:The assembly supports up to 16 RTD input channels when installed with the appropriate LLMux hardware.

Application areas

The Honeywell MC-TAMR03 51309223-175 is a conformally coated Low Level Multiplexer (LLMux) RTD Field Termination Assembly (FTA) The detailed application areas include:

• Alumina Digestion & Smelting Pots: Tracks the precise temperature profiles of chemical digestions and electrolytic reduction lines.
• Industrial Bioreactors & Fermentation Vessels: Monitors tight sterilized temperature bands during delicate biological cultivation loops.
• Gas Compression Modules: Monitors intercooler and discharge gas temperatures on critical compressor skids.
