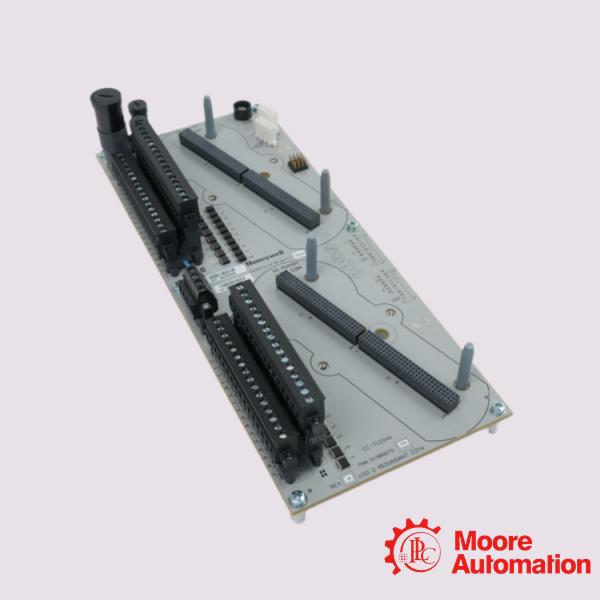

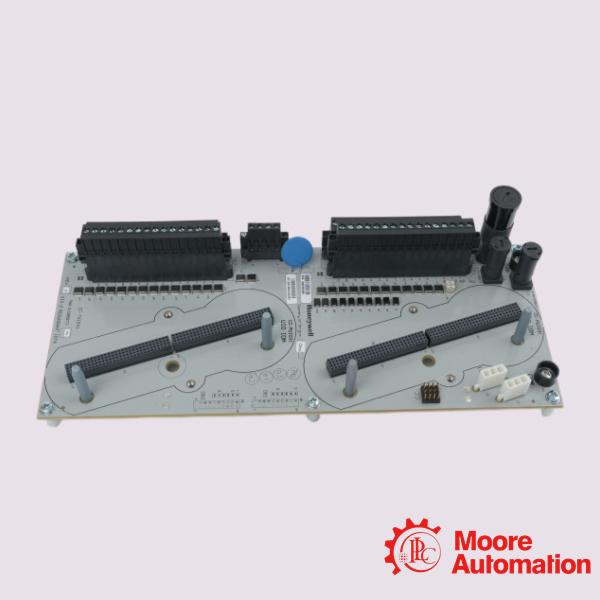

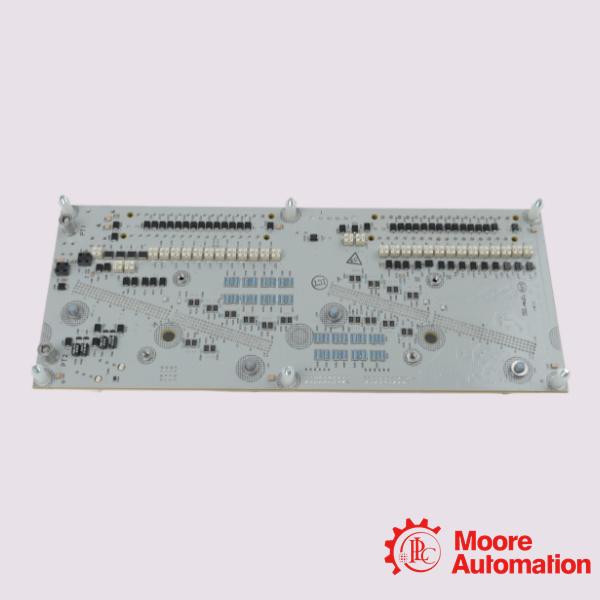

CC-TUIO41 51306873-176 | HONEYWELL Universal Input Output IOTA Red

Description

The Honeywell CC-TUIO41 51306873-176 is a redundant Universal Input Output Termination Assembly (IOTA) for the Experion® Series C platform. Used with the CC-PUIO31 Universal I/O Module, it supports up to 32 configurable channels for analog and digital signals. The assembly provides field wiring termination, supports redundant module configurations, and enables flexible I/O allocation for industrial process control applications.

Parameter

Input / Output Model: CC-PAIH02 – High-Level Analog Input with HART
Input Type: Voltage, Current
Input Channels: 16 Channels
Common Mode Rejection Ratio (DC to 60 Hz): 70 dB
Common Mode Voltage (DC to 60 Hz): -6 V to +5 V Peak
A/D Converter Resolution: 16 Bits
Normal Mode Rejection Ratio (60 Hz): 19 dB
Maximum Normal Mode Input: ±30 V
Crosstalk (DC to 60 Hz): -60 dB
Input Impedance: > 10 MΩ Powered
Input Scan Rate: 50 ms

Frequently asked questions

What are the advantages of CC-TUIO41?
CC-TUIO41 supports channel redundancy: The chassis is equipped with two I/O module slots. By installing a second general-purpose I/O module, hardware-level hot-swappable redundancy is automatically enabled, without the need for additional external cables.

Why is it often said that CC-TUIO41 can eliminate the need for intermediate wiring cabinets ?
The CC-TUIO41, when used in conjunction with general-purpose I/O modules, can directly supply power to the field channels via the backplane (IOTA), eliminating the need for external power distributors. Additionally, any channel can receive signals from any source.

Is it necessary to shut down the system when replacing the I/O module (IOM) connected to the CC-TUIO41?
No downtime is required. Thanks to its redundant design, if the main module fails during operation, the system seamlessly switches to the backup module, ensuring continuous production.

Application areas:
Upstream extraction: Offshore operations by CNOOC and multinational oil and gas drilling platforms, onshore oil and gas gathering and transportation stations, FPSOs.
Traditional thermal power generation: Main unit control system (DCS), auxiliary system control, gas-steam combined cycle power generation (CCPP).
Large-scale water treatment: Large-scale urban wastewater treatment plants, reverse osmosis (RO) seawater desalination plants.

Metallurgy and Mining: Automation control of blast furnaces, process control in large-scale mineral processing plants, and automation of coal washing and processing.
