FS-TRO-0824 | HONEYWELL Digital Output Module

in stock#

Brand/ Manufacturer:
HONEYWELL
Dimensions:
19.5x7x6cm
Weight:
0.14 kg
Country of Origin: :
USA
Description:
HONEYWELL FS-TRO-0824 Digital Output Module

Inquiry now

Mfr. Part Number:	FS-TRO-0824

Manufacturer:	HONEYWELL

Description:	HONEYWELL FS-TRO-0824 Digital Output Module

Full Description:	The HONEYWELL FS-TRO-0824 Digital Output Module with 5 AT fuse rating

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for HONEYWELL. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

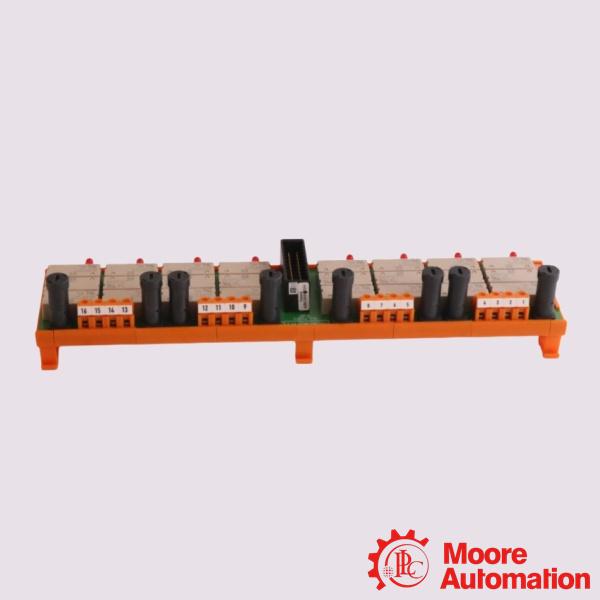

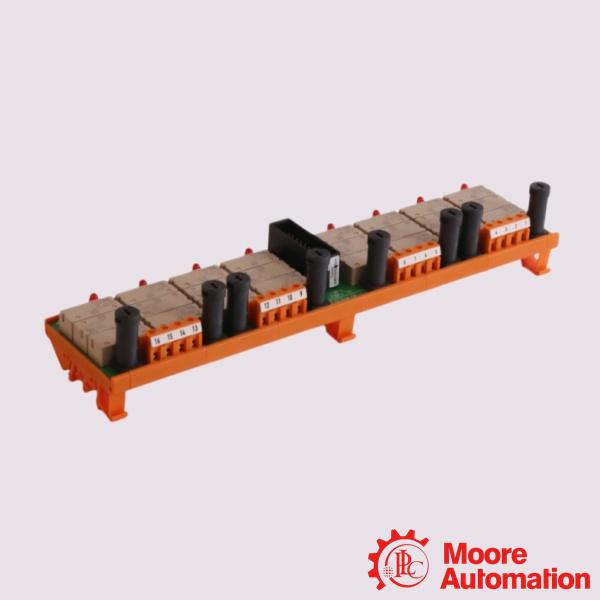

The FS-TRO-0824 Module is the interface between the system interconnection cable SIC-C-12 and the external field wiring (screw terminals). It has eight non-fail-safe potential-free relay changeover contacts (NO/NC), and the energized state of each relay is indicated by an LED on the module.

Eight channels can be connected to the FS-TRO-0824 module via the system interconnection cable SIC-C-12, which is plugged into the SIC connector on the FTA module and connects to a redundant pair of 10201/2/1 modules. The FTA module also features a universal snap-in facility for mounting on standard DIN EN rails, along with screw terminals for connecting the field wiring.

Application:

Oil and gas: Relay control in the emergency shutdown system of refineries.
Petrochemical and chemical industry: Control of feed cut-off and emergency relief valves for reaction vessels.
Electricity and energy: Command control of boilers in power plants and safety interlocks for generator sets.
Fire and gas monitoring: Factory-wide broadcast alarms, activation of exhaust fans or closing of fire dampers.

Core functions:
Signal conversion: As a bridge between the system connection cable and the external field wiring, it converts logical signals into passive contact outputs of relays.
Status monitoring: Each channel is equipped with an LED indicator light, which is used to display the energized state of the relay in real time.

Frequently Asked Questions (FAQ)

Q:What is the function of the HONEYWELL FS-TRO-0824 Digital Output Module?
A:The HONEYWELL FS-TRO-0824 Digital Output Module serves as an interface between the SIC-C-12 system interconnection cable and external field wiring, providing relay-based output control with LED status indication.

Q:What is the fuse rating of the HONEYWELL FS-TRO-0824?
A:The fuse rating of the HONEYWELL FS-TRO-0824 is 5 AT.

Q:Do you offer global delivery?
A:Yes. We delivery the FS-TRO-0824 to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: FS-TRO-0824
Nominal Input Voltage	24 Vdc
Maximum Input Voltage	31 Vdc
Relay Cut-in Voltage	19 Vdc
Input Current	Typically 27 mA at 24 Vdc
Number of Output Channels	8
Maximum Output Current	5 A
Maximum Output Voltage	250 Vac / 300 Vdc
Fuse Rating	5 AT
Maximum Switching Frequency	20 Hz
Ambient Temperature	–40°C to +70°C (–40°F to +158°F)
