05704-A-0148 | Honeywell 5704F Fire Status Panel

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
2.5x17x12.7cm
Weight:
0.16kg
Country of Origin: :
USA
Description:

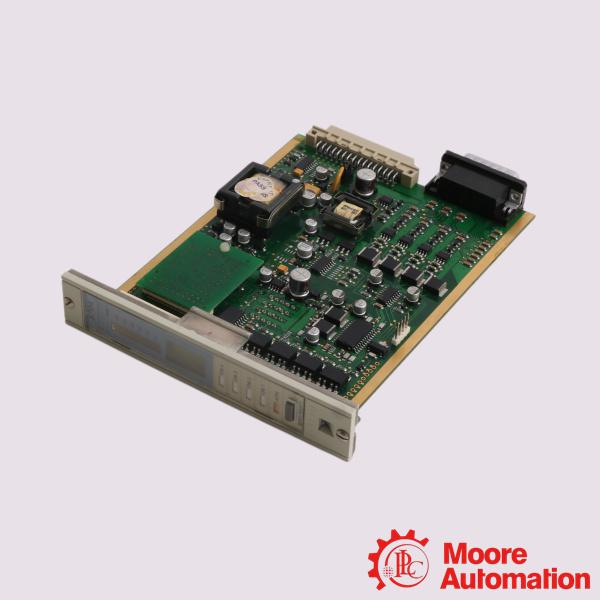

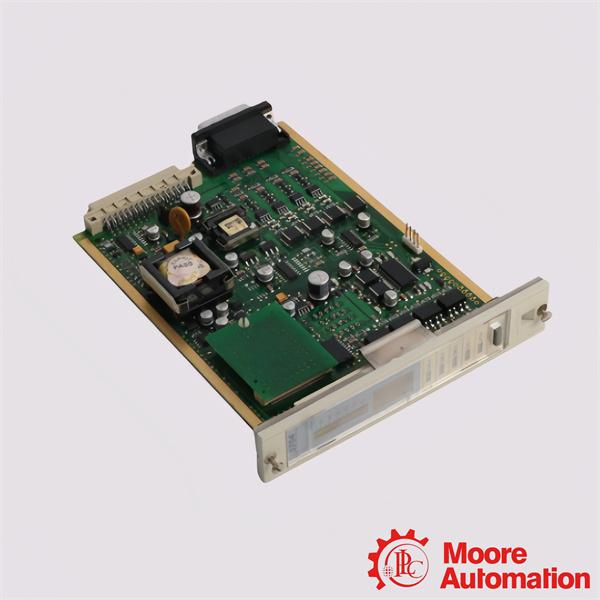

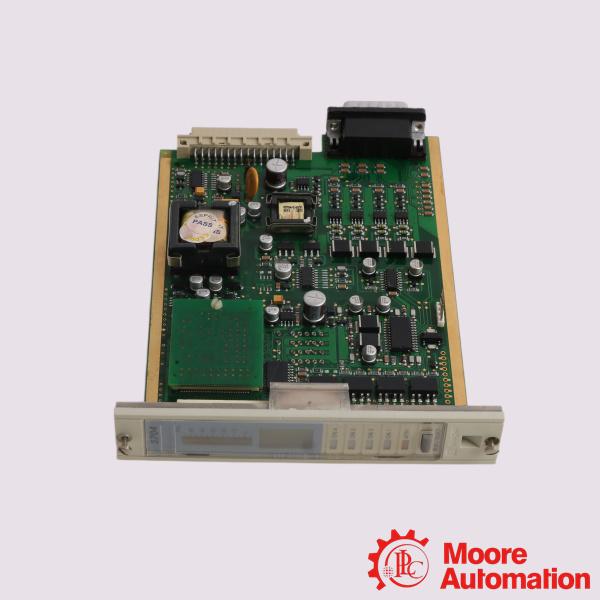

Honeywell 05704-A-0148 5704F Fire Status Panel

Inquiry now

Mfr. Part Number:	05704-A-0148

Manufacturer:	Honeywell

Description:	Honeywell 05704-A-0148 5704F Fire Status Panel

Full Description:	Each rack that contains a 5704F fire card has one Fire Status Card 5704FS (05704-A-0148) fitted

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Honeywell. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

Each rack that contains a 5704F fire card has one Fire Status Card 5704FS (05704-A-0148) fitted. The Fire Status Card 5704FS provides common display and alarm indication for all of the fire cards in a rack as well as a local audible sounder. It also provides common push buttons for executing specific fire card related functions.

Application:

Oil and Gas Exploration: Installed on offshore drilling platforms, floating production storage and offloading (FPSO) units, and upstream production facilities.
Petrochemical and Refining: Used across oil refineries and major chemical processing plants to handle multi-zone critical flame and fire diagnostics.
High-Risk Process Areas: Integrated into manufacturing environments with severe thermal or explosive profiles, including combustion test facilities and chemical storage bays.
Integrated Fire & Gas Systems: Used in complex automation environments where fire detection must link directly to Distributed Control Systems (DCS) or Programmable Logic Controllers (PLCs) via serial communications.

Frequently Asked Questions (FAQ)

Q:What is the purpose of the 5704FS Fire Status Panel?
A:The panel serves as a centralized display and control interface for all of the fire cards mounted in a single control rack. It provides common push-buttons for maintenance and engineering tasks alongside a local audible alert sounder to signal active hazards or electronic faults
Q:How does it connect to the control card?
A:It bridges to the main infrastructure via a short, attached flying lead ribbon cable. This cable connects directly into a dedicated header interface built onto the side of the companion 5704F Fire Control Card.

Q:How many status panels are needed per rack?
A:Only one 5704FS status panel is required per rack. It must be physically installed immediately to the right side of the main Fire Control Card and occupies exactly one slot width (1 inch) of the 19-inch rack assembly

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：05704-A-0148
Audible Sounder	60dB at 1m
Supply Voltage	18V to 32VDC
Power Consumption	0.75W
Operating Temperature	-5°C to +55°C
Storage Temperature	-25°C to +55°C
Operating Humidity	20-90% RH (non condensing)
Approvals	EN50270
