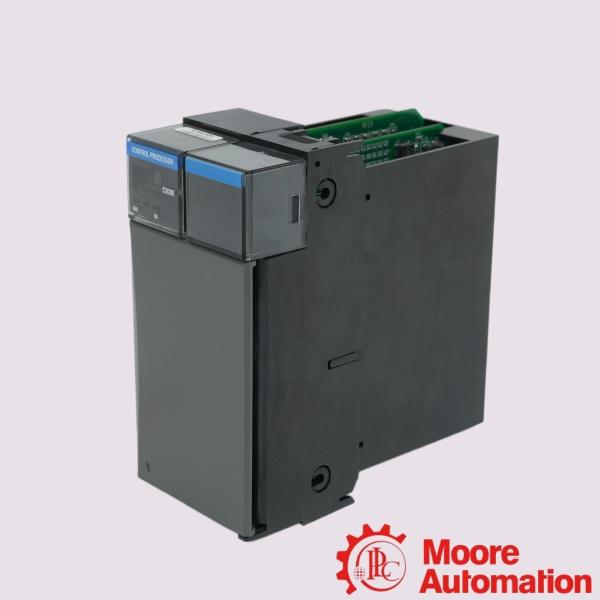

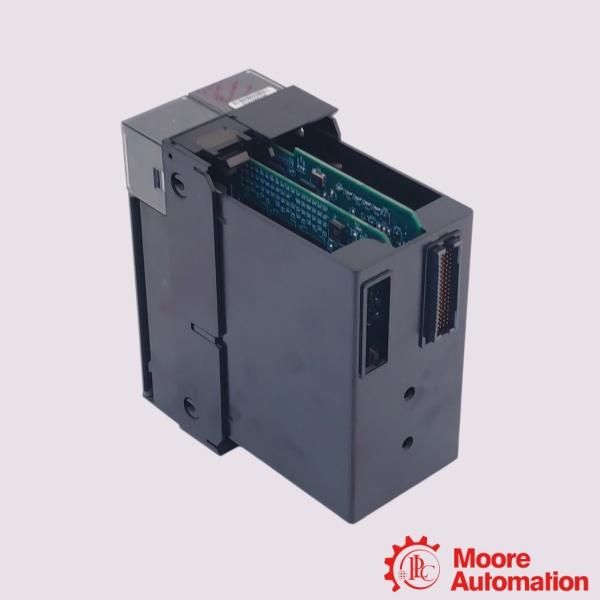

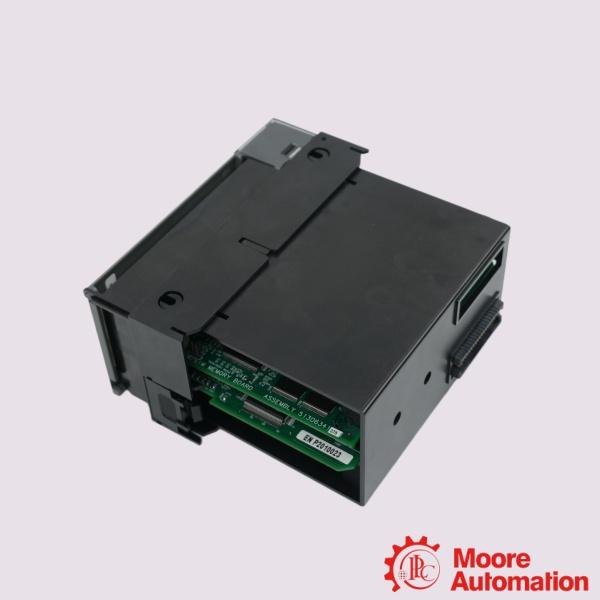

Honeywell TK-PRS022 51404305-575 C200E Control Processor Module

Description

The Honeywell TK-PRS022 51404305-575 is a C200E Control Processor developed for the Experion® PKS Series C platform. It performs the control processing functions required by distributed process control systems, providing the computing capability needed to execute control strategies and coordinate communication between field devices and the control network. As part of the Series C architecture, the processor is designed to integrate with compatible I/O modules and system components, supporting a modular control environment that can be expanded or maintained with minimal disruption. The TK-PRS022 51404305-575 is intended for continuous operation in industrial automation and process control applications where dependable controller performance is required. Its modular design simplifies installation and replacement within existing Series C cabinets while maintaining compatibility with other Series C hardware. The processor supports stable system operation by handling control execution, data exchange, and communication tasks as part of the Experion PKS control architecture.

Parameter

Model: TK-PRS022 51404305-575 C200E Control Processor Module
Operating Input Voltage: 24 V DC
Base Assembly Voltage: 12 V DC / 24 V DC Configurable
IO Architecture Support: Series C I/O modules & Series A legacy I/O infrastructure
Operating Temperature: -40°C to +70°C (-40°F to 158°F)
Relative Humidity: 5% to 95% RH (Non-condensing)
Enclosure Protection Class: IP20 Rating

Frequently asked questions

Q:What is the Honeywell TK-PRS022 51404305-575?
A:The TK-PRS022 51404305-575 is a C200E Control Processor used in the Honeywell Experion® PKS Series C platform. It performs the control processing functions required by the distributed control system.

Q:Can the TK-PRS022 be used with Series C I/O modules?
A:Yes. The TK-PRS022 operates with compatible Series C I/O modules and other Series C hardware as part of the Experion PKS architecture.

Q:Does the TK-PRS022 operate independently?
A:YesNo. The processor is intended to operate as part of a complete Experion PKS control system and requires compatible Series C hardware and system software.

Application areas

The Honeywell TK-PRS022 51404305-575 primary application areas include:

• Hydroprocessing & Hydrocracking Loops: Controls high-pressure hydrogen injection ratios and coordinates exothermic multi-bed reactor temperature monitoring via dense analog loops.
• Continuous In-Line Blending Systems: Drives precise ratio control loops regulating multi-component chemical streams, additives, and catalysts into mainstream pipelines.
• Steam Turbine Auxiliary Interlocking: Coordinates critical auxiliary networks, including lube oil conditioning skids, condenser vacuum loops, and gland seal steam pressure blocks.
