Honeywell TMG 740-3 MOD 43-35 Microprocessor Controlled Burner Safety Management System

Frequently asked questions
Q:What is the Honeywell TMG 740-3 MOD 43-35 used for?
A:The TMG 740-3 MOD 43-35 is a burner control box designed to control and monitor medium- to high-capacity forced draught and dual-fuel oil/gas burners operating in intermittent service. It supports single-stage, two-stage, multi-stage, and modulating burner applications.

Q:Which flame detectors are compatible with the TMG 740-3 MOD 43-35?
A:The controller is compatible with ionisation probes, UV flame detectors (UVZ 780 series), and infrared flicker flame detectors, allowing it to be used in a wide range of combustion systems.

Q:What power supply is required for the Honeywell TMG 740-3 MOD 43-35?
A:It operates from a 220/240 VAC (-15% to +10%), 50 Hz power supply and can tolerate frequency variations between 40 and 60 Hz.

Description

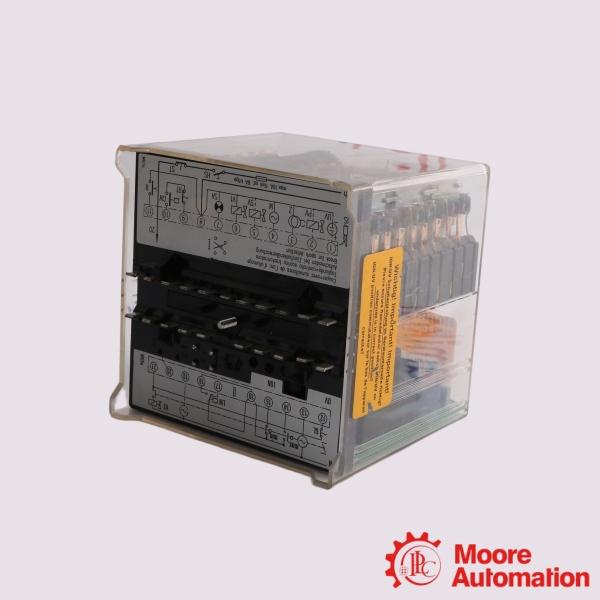

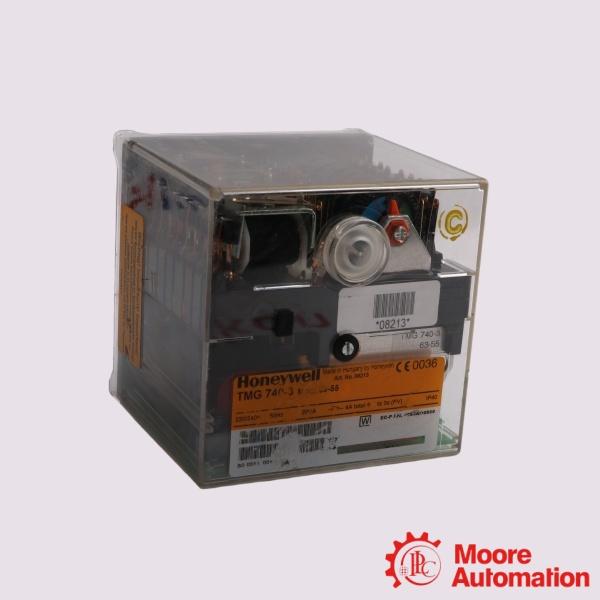

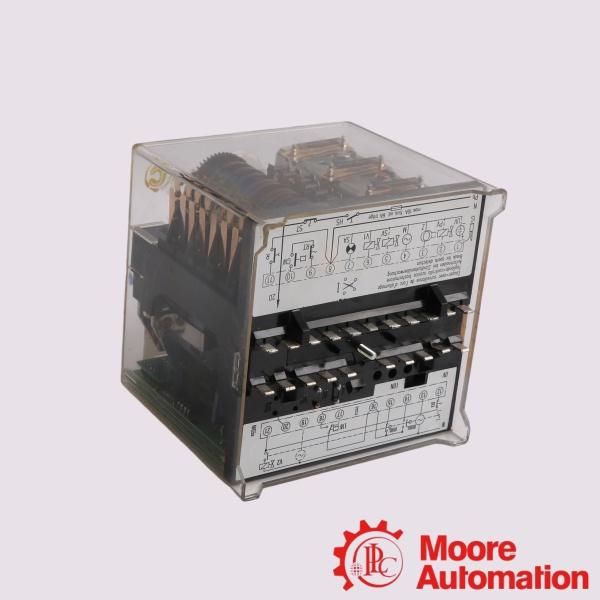

The Honeywell TMG 740-3 MOD 43-35 is a burner control box designed for medium- to high-capacity forced draught and dual-fuel oil/gas burners operating in intermittent service. It supports single-stage, two-stage, multi-stage, and modulating burner applications, while providing complete burner sequence control, including pre-purge, ignition, flame supervision, fuel valve management, post-purge, and safety lockout functions. The controller is compatible with ionisation probes, UV flame detectors, and infrared flicker detectors, with selectable flame detection and programmable air pressure switch and ignition spark monitoring. Its flame-resistant transparent housing contains a synchronous motor, cam-operated programme switch, electronic control circuitry, and a five-LED flame signal indicator for clear operating status and simplified maintenance. The MOD 43-35 programme version features a 32 s supervised pre-purge, 40 s air damper open pre-purge, 4 s fixed pre-ignition, 3 s start valve safety interval, 3 s pilot valve safety interval, 14 s pilot valve energising time, 5 s main valve 1 safety interval, 10 s valve 1 delay, 10 s valve 2 delay, and 10 s post-purge. The unit operates from a 220/240 VAC (-15% to +10%), 50 Hz (40–60 Hz) supply, consumes approximately 15 VA, provides a maximum 4 A per output and 6 A total output, operates within an ambient temperature range of -20°C to +60°C, is rated IP44, complies with EN 298, and is fully interchangeable with the earlier TMG 740-1 and TMG 740-2 versions.

Parameter

Model: TMG 740-3 MOD 43-35 Microprocessor Controlled Burner Safety Management System
Supply voltage: 220 / 240 V (-15 to +10%) 50 HZ (40 - 60 Hz)
Fuse rating: 10 A rapid, 6 A slow
Power consumption: approx. 15 VA
Output terminal: 4 A
Ionisation input: 1.6 µA
UV input: 70 µA
Permissable ambient temp: -20° C to +60° C incl
Air proving switch: 6 A, 220 V
Insulation standard: IP 44

Application areas

The Honeywell Satronic TMG 740-3 MOD 43-35 is a high-performance ⁠burner control box designed to manage, control, and monitor industrial combustion processes.

• Forced Draught Burners: Controls medium to high-performance fan-assisted burners.
• Ionisation Probes: Typically used for standard gas burners.
• Direct Air Heaters: Frequently applied in industrial air heating units conforming to standards like DIN 4794.
