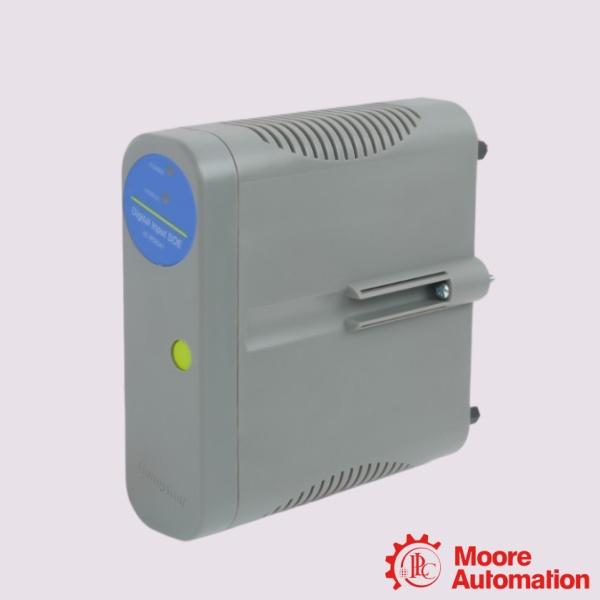

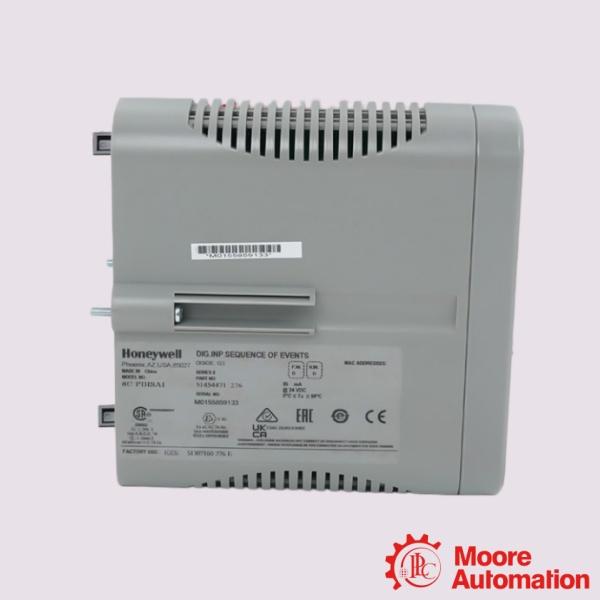

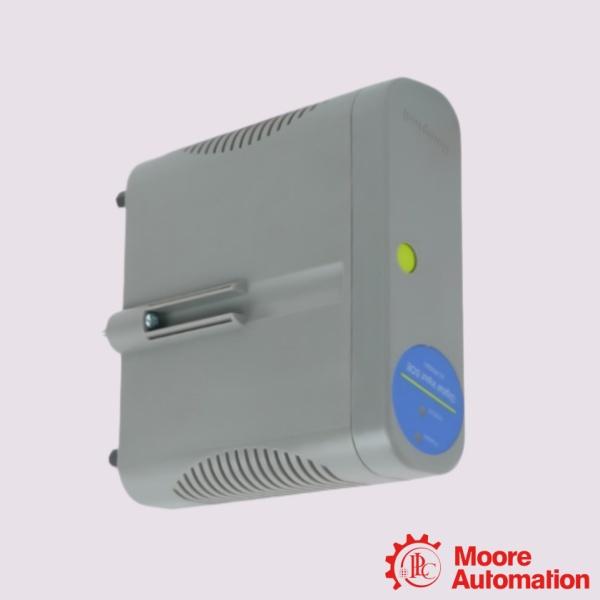

Honeywell 8C-PDISA1 51454471-276 Digital Input SOE Module

Description

The Honeywell 8C-PDISA1 51454471-276 is a Series 8 Digital Input Sequence of Events (DISOE) module for Experion PKS control systems. The module accepts thirty-two 24 VDC discrete input signals and records input state changes with time tagging at 1 ms resolution for Sequence of Events applications. It supports standard process monitoring together with event recording, allowing both operating status and event history to be collected from the same input channels. Three operating modes are available. Normal mode performs process variable scanning at 20 ms intervals, Sequence of Events mode combines a 20 ms process scan with 1 ms event time stamping, and Low Latency mode reduces the process scan interval to 5 ms for applications requiring faster input updates. The module also supports direct or reverse input indication, onboard field excitation power, and selection between internal or external field power sources. The 8C-PDISA1 includes optical galvanic isolation between field circuits and the I/O electronics and supports module removal and insertion while system power remains applied. It is installed with the corresponding Series 8 IOTA assembly and is used in process plants where accurate recording of digital events and continuous input monitoring are required.

Parameter

Model: 8C-PDISA1 51454471-276 Digital Input SOE Module
Nominal Input Voltage: 24 VDC
SOE Time Tagging Resolution: 1 millisecond (ms)
Galvanic Isolation: Optical galvanic isolation between field circuits and I/O electronics
Operating Temperature: 0 °C to 60 °C (Standard internal cabinet assembly rating)
Storage Temperature: -40 °C to 85 °C
Relative Humidity Limits: 5% to 95% RH (Non-condensing)
Coating Specification: Series 8 standard conformal coating for harsh environments
Input Configuration: Configurable for Direct or Reverse input logic indication

Frequently asked questions

Q:What is the Honeywell 8C-PDISA1 51454471-276 used for?
A:The 8C-PDISA1 51454471-276 is a Series 8 Digital Input Sequence of Events (DISOE) module used in Honeywell Experion control systems. It receives 24 VDC discrete input signals and records signal changes with Sequence of Events time tagging.

Q:How many input channels does the 8C-PDISA1 provide?
A:The module provides 32 digital input channels for connecting compatible 24 VDC field signals.

Q:Does the 8C-PDISA1 support internal and external field power?
A:Yes. The module supports selection between internal and external field power sources according to the system configuration.

Application areas

The Schneider Honeywell 8C-PDISA1 51454471-276 detailed application areas  include:

• Blast Furnace Charging Safety Systems: Interoperates with position limit switches on coke/ore distribution hoppers to guarantee interlock conditions are met before raw materials are dropped.
• Emergency Diesel Generator (EDG) Start Synchronization: Monitors the fast digital step-changes during an automatic utility mains failure transfer, tracking breaker positions and engine starter feedback in Low Latency mode.
• Compressor and Surge Protection Interlocks: Monitors axial and centrifugal compressor auxiliary contacts, low-flow switches, and anti-surge valve limit switches in Low Latency (5 ms) mode to feed safety logic without processing delay.
