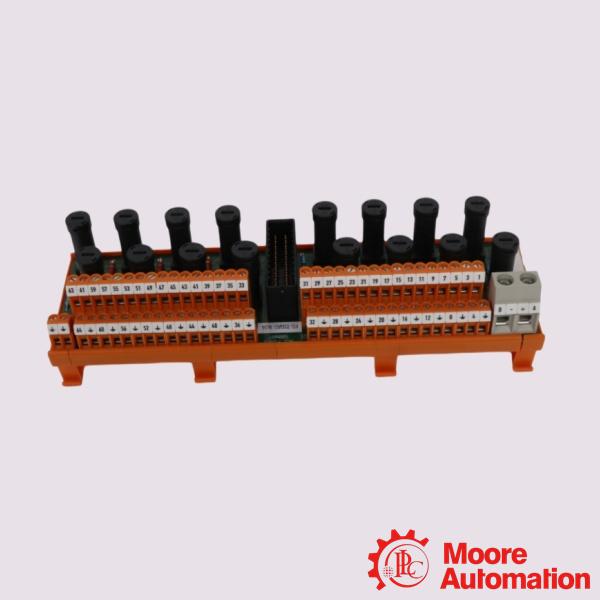

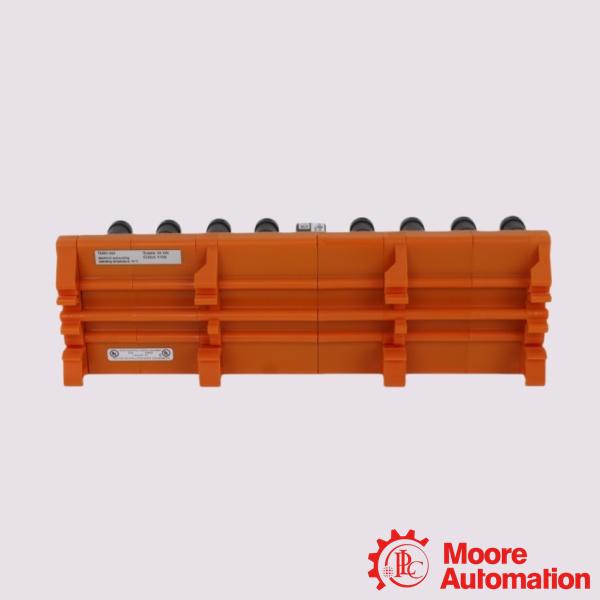

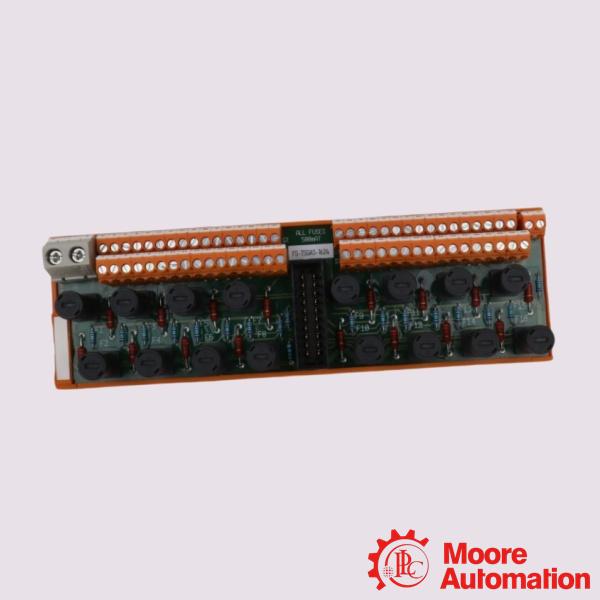

FS-TSGAS-1624 | HONEYWELL Digital Output Field Termination Assembly

in stock#

Brand/ Manufacturer:
HONEYWELL
Dimensions:
22.5x7x6cm
Weight:
0.22 kg
Country of Origin: :
USA
Description:
HONEYWELL FS-TSGAS-1624 Digital Output Field Termination Assembly

Inquiry now

Mfr. Part Number:	FS-TSGAS-1624

Manufacturer:	HONEYWELL

Description:	HONEYWELL FS-TSGAS-1624 Digital Output Field Termination Assembly

Full Description:	The HONEYWELL FS-TSGAS-1624 Digital Input Field Termination Assembly with 16 input channels

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for HONEYWELL. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:
The Digital Input Field Termination Assembly FS-TSGAS-1624 is the interface between gas/ flame detectors in the field and the fail-safe high-density analog input module 10105/2/1 in the FSC system.The FS-TSGAS-1624 module has sixteen analog input channels which may be used for both safety-related and non-safety-related applications.

The FS-TSGAS-1624 module uses a SIC-C-12 system interconnection cable to transfer the 16 input signals to a (redundant pair of) 10105/2/1 module(s).The FTA module has a universal snap-in facility for standard DIN EN rails, and screw terminals for connection of power supply,ground and field wiring.

Application:

Oil and gas: Monitoring of offshore drilling platforms, liquefied natural gas (LNG) terminals, refineries, and long-distance pipelines.
Petrochemical and chemical industry: Fire and gas monitoring systems (F&G) in chemical plant production workshops.
Electricity and energy: Boiler and turbine protection systems in power plants.
Other high-risk manufacturing fields: Semiconductor manufacturing, pharmaceutical factories, security monitoring of large commercial buildings.

Core functions:
Signal conversion: Convert the on-site 0(4)–20 mA current signal linearly into the signal level required by the SAI-1620m module (typically 0–4 VDC).
Safety certification: Complies with SIL3 safety integrity level certification.
Power distribution protection: Allocate a 24 VDC power supply to each transmitter/detector on site, and equip each channel with 500 mA fuse protection.

Frequently Asked Questions (FAQ)

Q:Is the HONEYWELL FS-TSGAS-1624 compatible with redundant I/O modules?
A:Absolutely. The HONEYWELL FS-TSGAS-1624 is often used in conjunction with redundant Safety Manager Digital Input modules to achieve SIL3 safety ratings.

Q:What is the fuse rating of the HONEYWELL FS-TSGAS-1624?
A:The HONEYWELL FS-TSGAS-1624 uses a 500 mAT fuse rating for circuit protection.

Q:How are the FS-TSGAS-1624 packaged?
A:FS-TSGAS-1624 packaging generally involves multiple layers of protection to ensure safe transit.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number: FS-TSGAS-1624
Number of Input Channels	16
Power Requirements	24 Vdc external 3 mA
Input Current Range	0 to 25 mA
Accuracy	0.10%
Input Resistance	500 Ohm (± 5%)
Output Voltage	0 to 4 Vdc
Fuse Rating	500 mAT
Screw Terminals Maximum Wire Diameter	2.5 mm²
