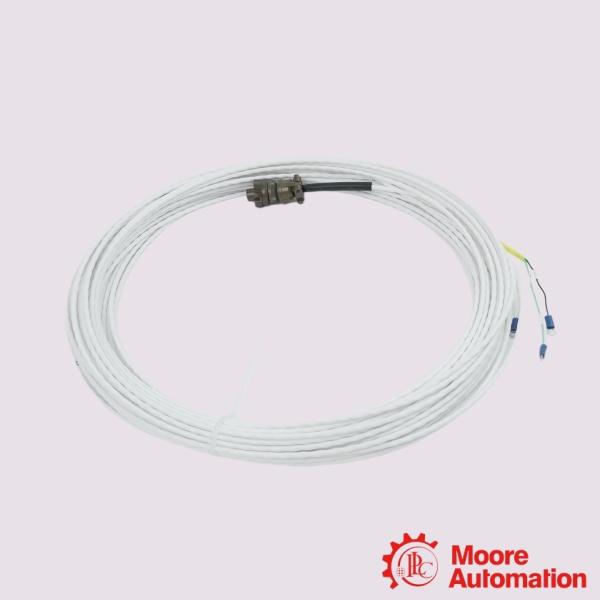

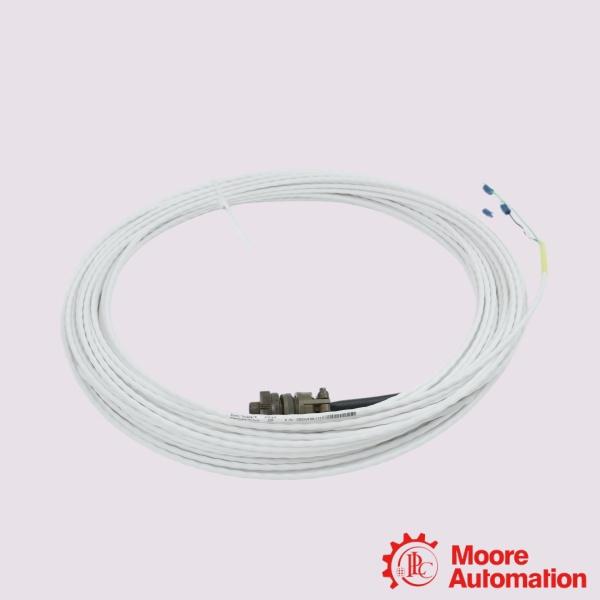

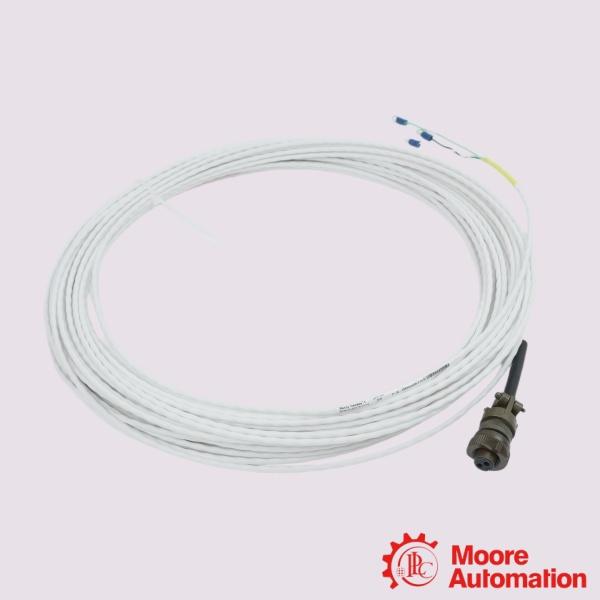

Bently Nevada CB2W100-112 Interconnect Cable

Parameter
Model: CB2W100-112 Interconnect Cable
Length: 112-112 ft (34.1 m)
Conductor Configuration: 20 AWG Twisted Pair
Target Frequency Application: Low-Frequency vibration tracking profiles
Termination Type: Integrated MIL-C-5015 Connector configuration
Socket Contact Layout: 2-Socket internal connection
Recommended Frequency Range: Adjusted down to 1.5 Hz to 1.0 kHz (for 90 rpm fans)

Description

The Bently Nevada CB2W100-112 is an interconnect cable designed for use with the 190501 Velomitor CT Velocity Transducer. It provides the required connection between the velocity transducer and the monitoring system, allowing vibration velocity signals to be transmitted for machinery condition monitoring applications. The cable assembly is part of the Velomitor CT system configuration and is used to support reliable signal transmission from the sensor installed on rotating equipment. The CB2W100-112 features a 112 ft (34.1 m) cable length and is configured for connection with the 190501 Velomitor CT sensor. The cable assembly includes the required connector components and sealing elements for installation with the transducer system. Its design supports the measurement requirements of low-frequency vibration monitoring applications, particularly for cooling tower fan and air-cooled heat exchanger fan assemblies. Used together with the 190501 Velomitor CT Velocity Transducer, the CB2W100-112 helps provide vibration signal connection for monitoring fan machinery operating at low speeds. The CB2W100-112 provides the necessary interconnection between the sensor and monitoring equipment within these machinery protection and condition monitoring installations.

Frequently asked questions

Q:What is the Bently Nevada CB2W100-112?
A:The CB2W100-112 is an interconnect cable used with the Bently Nevada 190501 Velomitor CT Velocity Transducer system. It provides the connection between the velocity transducer and the monitoring system, enabling vibration signal transmission for machinery condition monitoring applications.

Q:What applications use the CB2W100-112 cable?
A:The cable is typically used in applications involving cooling tower fans, air-cooled heat exchanger fans, and other low-speed rotating machinery where casing vibration monitoring is required.

Q:Why is the Velomitor CT system used for low-speed equipment?
A: The Velomitor CT Transducer is designed as a low-frequency version of the standard Velomitor piezo-velocity sensor. It allows vibration measurement on machines operating at or above 90 rpm, including typical fan speeds from 100 to 300 rpm.

Application areas

The Bently Nevada CB2W100-112 primary application areas include:

• Cooling Tower Induced-Draft Fans: Connects the 190501 transducer mounted on the fan gear reducer box to the external vibration monitoring terminal enclosure.
• Air-Cooled Heat Exchanger (Fin-Fan) Decks: Routes vibration signals from low-speed, multi-blade fan hubs used in petrochemical plant cooling banks.
• Low-Speed Gearbox Diagnostics: Transmits raw structural acceleration data from the low-speed output shafts of industrial speed reducers.
