Product Description:

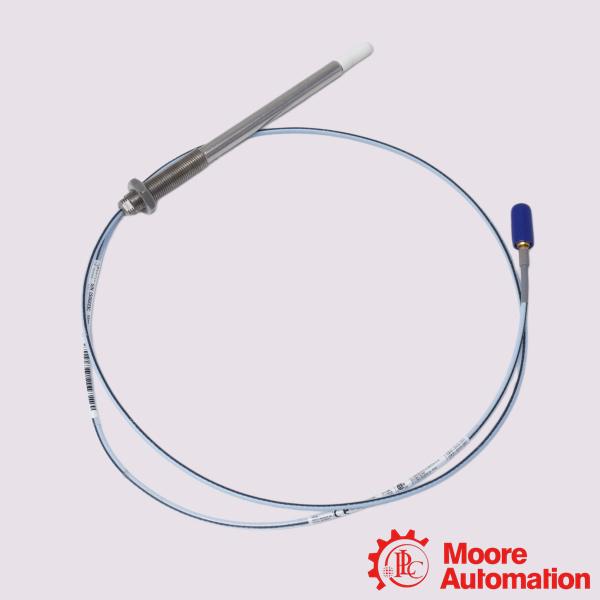

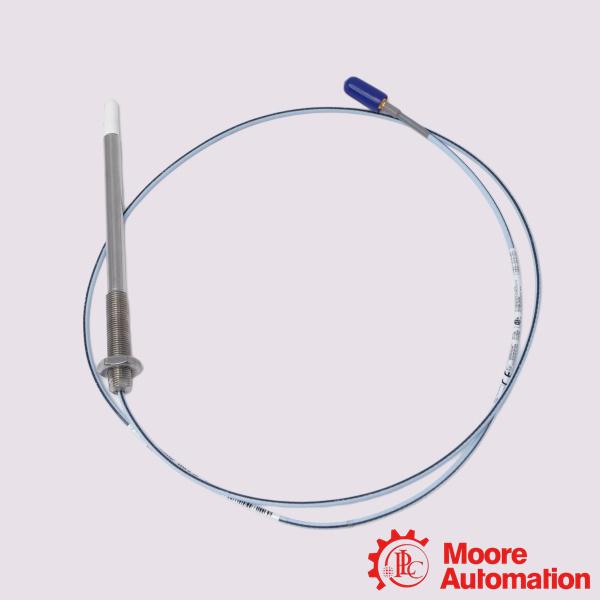

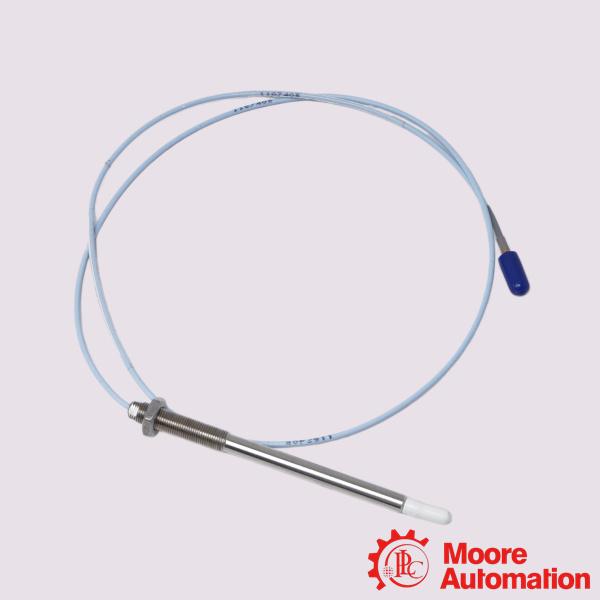

The Bently Nevada 330905-00-05-05-01-CN is a 3300 XL NSv proximity probe for machinery vibration and position monitoring in tight spaces or confined target areas. Part of the Bently Nevada 3300 XL NSv Transducer System, this eddy-current sensor resolves geometric restrictions where standard 5mm or 8mm probes face severe metallic interference from surrounding backgrounds like counterbores.The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.

Frequently Asked Questions (FAQ)

Q:How do I electrically verify the probe's integrity?

A:You can perform a quick loop diagnostics test using a digital multimeter set to resistance (ohms) mode. Test the continuity of the center conductor and ensure there is no short circuit to the outer armor or machine ground. A reading showing low or erratic resistance between the center conductor and the outer shield typically indicates a damaged cable or probe tip.
Q:What companion hardware is required to form a complete loop?
A:Because this probe has a short 0.5-meter on-board cable, it cannot connect directly to a monitor. To complete the circuit, you must connect it to a matching 3300 NSv extension cable and a 3300 XL NSv Proximitor Sensor. “The 3300 XL NSv Proximity Transducer System consists of: a 3300 NSv probe, a 3300 NSv extension cable, a 3300 XL NSv Proximitor Sensor”.

Q:What are the target size restrictions for this sensor?
A:This probe is explicitly optimized for small machinery components. It is ideal for measuring radial vibration on shafts smaller than 51 mm (2 inches) or tracking axial position on flat targets smaller than 15 mm (0.6 inches).
