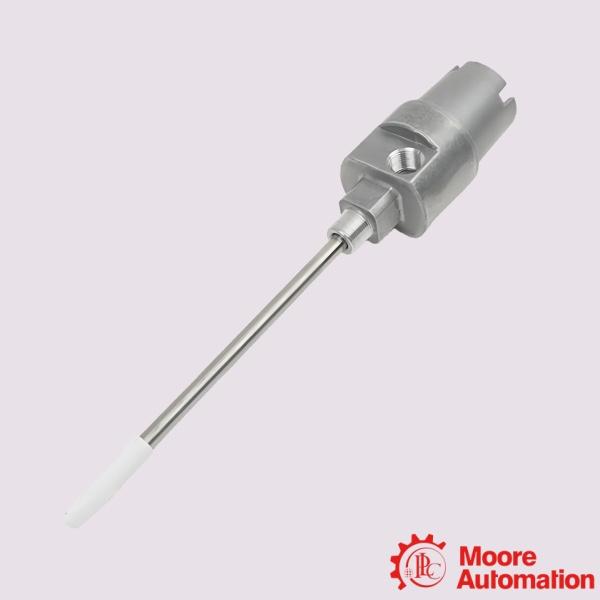

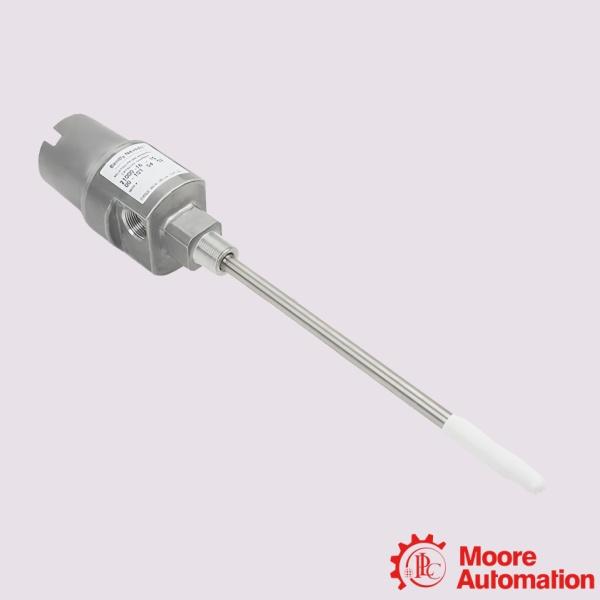

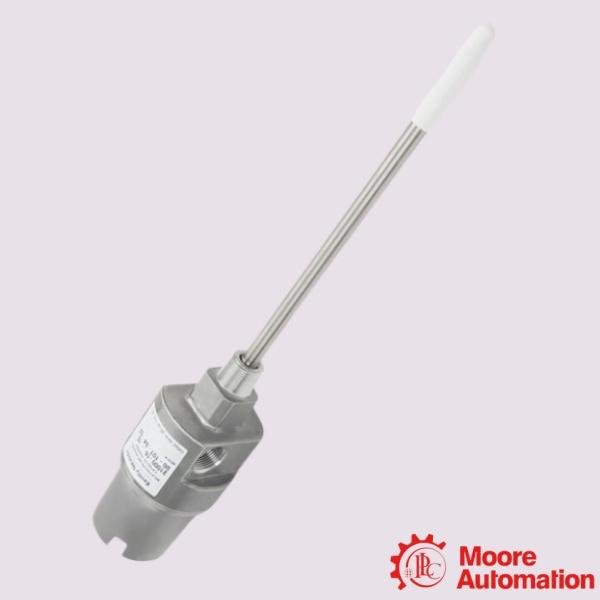

Bently Nevada 21000-16-10-00-167-04-02 21000 Aluminum Proximity Probe Housing Assembly

Parameter
Model: 21000-16-10-00-167-04-02 21000 Aluminum Proximity Probe Housing Assembly
Probe with Connector: 16-3300 XL 8mm probe
Probe Cable Length: 10-1.0 m (39 in)
Standoff Adapter (Option C Dimension): 00-00
Probe Penetration (Option D Dimension): 167-16.7 in
Fittings: 04-One 3/4-14 NPT plug only
Mounting Thread: 02-3/4-14 NPT

Description

The Bently Nevada 21000-16-10-00-167-04-02 is a 21000 Aluminum Proximity Probe Housing Assembly designed for external installation of a 3300 XL 8 mm Proximity Probe on rotating machinery. The housing assembly provides a secure mounting location for the probe while protecting the installation and allowing convenient probe adjustment and maintenance from outside the machine casing. The housing assembly features an anodized aluminum body with a stainless steel probe sleeve, providing mechanical support for the installed probe while helping protect the sensing assembly in industrial environments. Its external mounting design allows probe gap adjustment and replacement without opening the machine, reducing maintenance time and simplifying installation. When used with a compatible Bently Nevada proximity transducer system, the 21000-16-10-00-167-04-02 supports non-contact measurement of shaft vibration, shaft displacement, and shaft position on critical rotating equipment.

Frequently asked questions

Q:What is the primary function of the Bently Nevada 21000-16-10-00-167-04-02?
A:The 21000-16-10-00-167-04-02 is a Proximity Probe Housing Assembly designed to provide external mounting, mechanical protection, and probe adjustment for a 3300 XL 8 mm Proximity Probe used in rotating machinery monitoring systems.

Q:What mounting thread is used?
A:The "02" option specifies a 3/4-14 NPT mounting thread for installation on compatible machinery.

Q:What should be verified before replacing this housing assembly?

A:Confirm the probe model, probe cable length, penetration length, fitting option, mounting thread, and housing configuration to ensure compatibility with the existing installation.

Application areas

• Centrifugal Compressors–Used for mounting proximity probes that measure shaft vibration and displacement on centrifugal compressors operating in continuous service.
• Industrial Pumps–Provides secure probe installation for monitoring shaft movement and operating condition on process and utility pumps.
• Generators–Supports proximity probe installation on generator bearing locations for continuous shaft position and vibration monitoring.
• Electric Motors–Used on large industrial motors equipped with proximity transducer systems for shaft condition monitoring and machinery protection.
