Bently Nevada 21000-16-10-00-126-04-02 21000 Aluminum Proximity Probe Housing Assembly

Frequently asked questions
Q:Is a proximity probe included with this assembly?
A:Yes. This configuration includes one Bently Nevada 3300 XL 8 mm Proximity Probe with a 1.0 m (39 in) probe cable.

Q:Why is a proximity probe housing assembly used?
A:The housing assembly provides a secure external mounting location for the probe, protects the installation, and allows probe adjustment or replacement without opening the machine casing.

Q:Can the probe gap be adjusted after installation?
A:Yes. The external housing design provides convenient access for probe positioning and gap adjustment during installation and maintenance.

Description

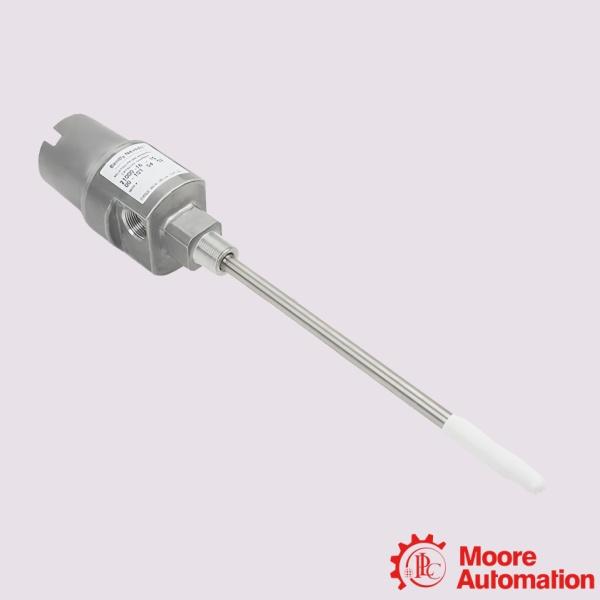

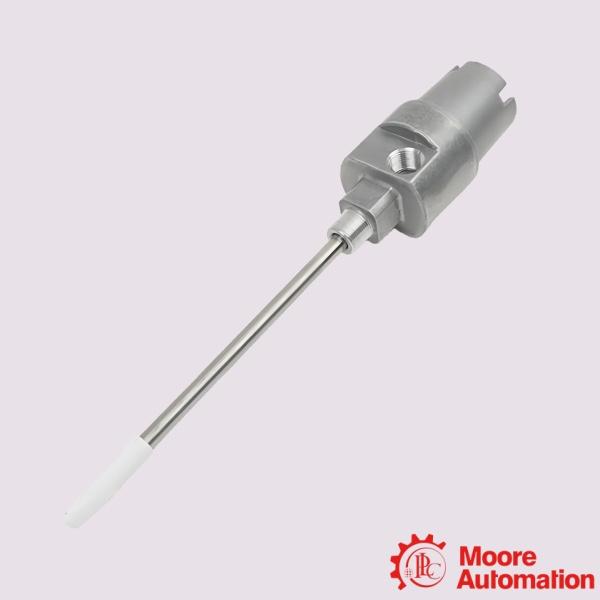

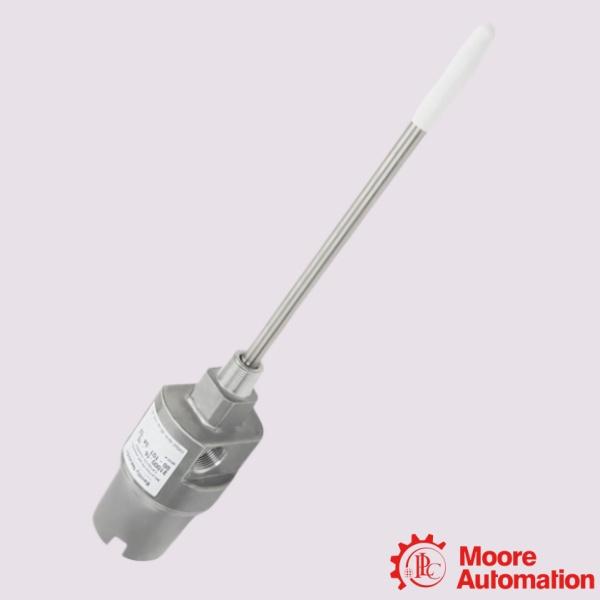

The Bently Nevada 21000-16-10-00-126-04-02 is a 21000 Aluminum Proximity Probe Housing Assembly designed for external installation of a 3300 XL 8 mm Proximity Probe on rotating machinery. The housing assembly provides a secure mounting location for the probe while protecting the sensing assembly from the surrounding environment. The housing assembly features an anodized aluminum body with a stainless steel probe sleeve, providing stable mechanical support for the installed probe while helping protect the cable entry and sensing area. When used with compatible Bently Nevada extension cables, Proximitor® Sensors, and monitoring systems, the 21000-16-10-00-126-04-02 supports non-contact measurement of shaft vibration, shaft displacement, and shaft position.

Parameter

Model: 21000-16-10-00-126-04-02 21000 Aluminum Proximity Probe Housing Assembly
Probe with Connector: 16-3300 XL 8mm probe
Probe Cable Length: 10-1.0 m (39 in)
Standoff Adapter (Option C Dimension): 00-00
Probe Penetration (Option D Dimension): 126-12.6 in
Fittings: 04-One 3/4-14 NPT plug only
Mounting Thread: 02-3/4-14 NPT

Application areas

• Oil and Gas Processing Facilities–Installed on critical rotating equipment, including compressors, turbines, and pumps, where continuous shaft monitoring contributes to equipment reliability.
• Petrochemical Plants–Used on process machinery requiring non-contact shaft measurement to support machinery condition monitoring and maintenance planning.
• Power Generation Facilities–Provides external probe installation for turbine-generator sets and auxiliary rotating equipment used in continuous machinery monitoring systems.
