in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
18x18x1.5cmWeight:
0.12kgCountry of Origin: :
USADescription:

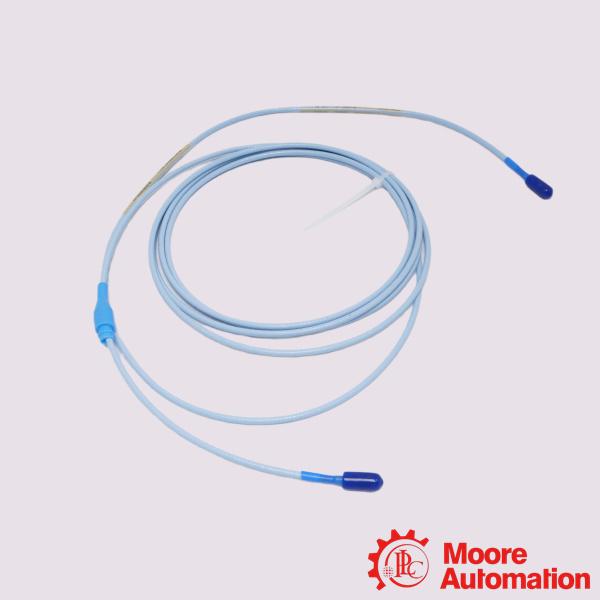

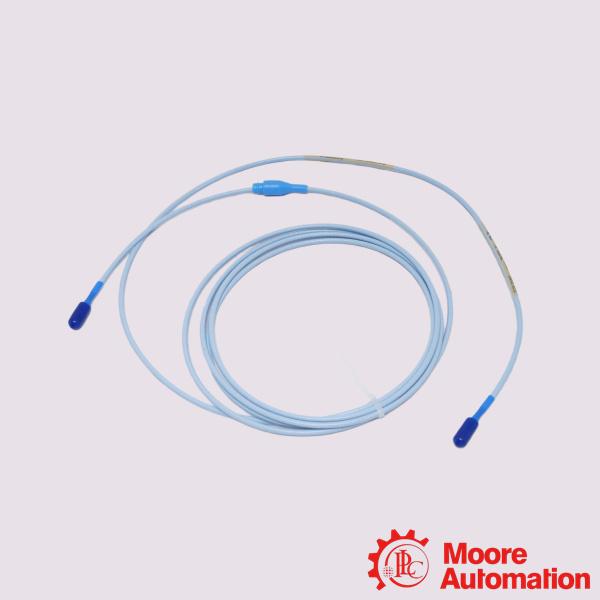

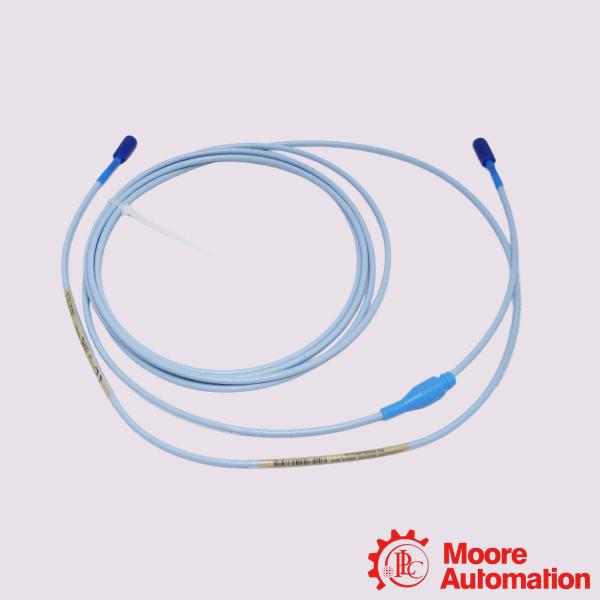

Bently Nevada 330130-030-02-003300 XL Standard Extension Cable
| Mfr. Part Number: |
330130-030-02-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330130-030-02-00 is a 3.0-meter 3300 XL Standard Extension Cable used within the 3300 XL 8mm Proximity Transducer System to deliver precise vibration and position monitoring for heavy industrial machinery.The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
Application:
Steam and Gas Turbines: Monitors internal shaft dynamics under harsh, high-temperature operations.
Centrifugal & Axial Compressors: Keeps track of rapid load variations and high rotor speeds.
Electric Motors & Generators: Detects bearing wear and shaft misalignment.
Large Pumps & Industrial Fans: Safeguards heavy-duty fluid-handling machinery against sudden unbalances.
Frequently Asked Questions (FAQ)
Q:Is this cable backwards-compatible?
A:Yes. The 3300 XL hardware remains fully backwards-compatible with standard, non-XL 3300 series proximity probes and sensors. However, cross-generational mixing can slightly lower the maximum linear range and overall temperature stability relative to a pure XL system.
Q:What systems are compatible with this extension cable?
A:It integrates seamlessly with the 3300 XL 8mm Proximity Transducer System, which includes a 3300 XL 8mm probe and a 3300 XL Proximitor Sensor. It features complete interchangeability and is backward-compatible with non-XL 3300 series transducer components.
Q:Does it meet API 670 industry requirements?
A:Yes. When paired as a complete 5-meter or 9-meter transducer system, it fully complies with the American Petroleum Institute (API) 670 Standard for mechanical configuration, linear measurement range, accuracy, and temperature stability.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330130-030-02-00 |
|
Cable Length Option |
3.0 meters (9.8 feet) |
|
Connector Protector and Cable Option |
Standard cable with connector protector |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass or goldplated beryllium copper. |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
