in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
19x17x1.5cmWeight:
0.12kgCountry of Origin: :
USADescription:

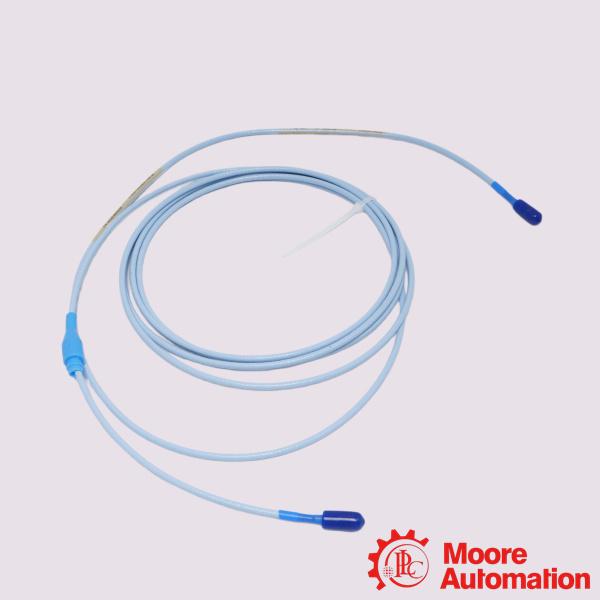

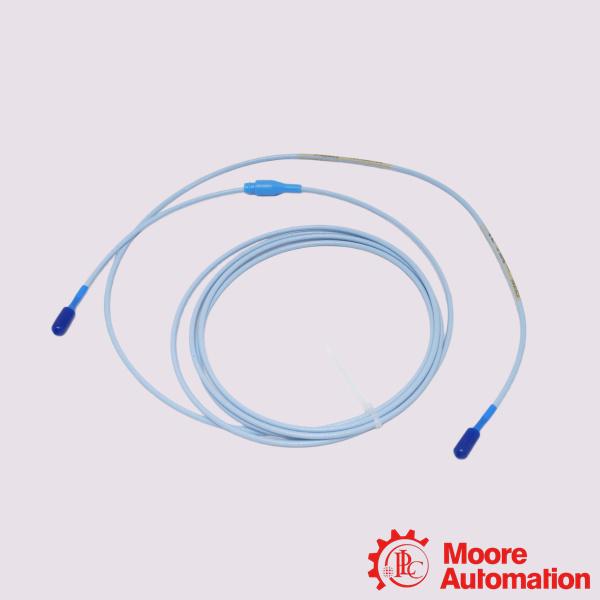

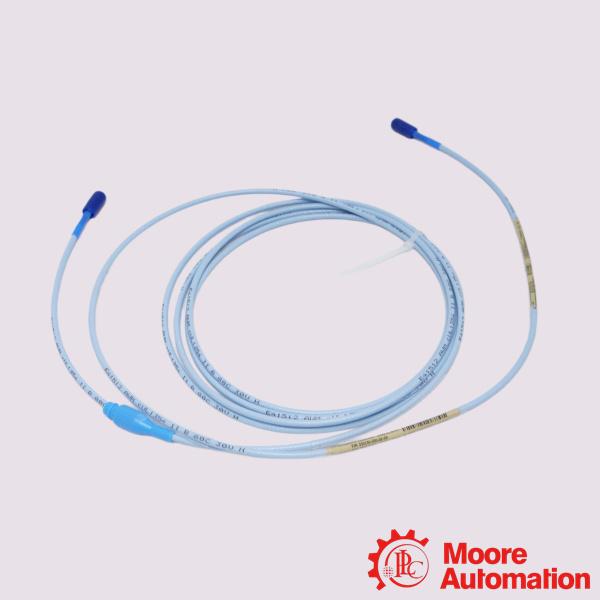

Bently Nevada 330130-030-01-00 3300 XL Standard Extension Cable
| Mfr. Part Number: |
330130-030-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330130-030-01-00 serves as a vital signal transmission link between proximity probes and Proximitor sensors to measure shaft vibration, position, and rotational speed in critical industrial machinery. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.
Application:
Steam and Gas Turbines: For continuous monitoring of radial vibration and axial (thrust) position to prevent catastrophic rotor-to-stator contact.
Centrifugal and Axial Compressors: Ensuring early detection of shaft instability, surge conditions, or misalignment.
Large Industrial Pumps & Fans: Tracking dynamic motion and bearing wear in heavy-duty utility and process operations.
Generators & Electric Motors: Monitoring rotor dynamics and mechanical balance in power generation equipment.
Frequently Asked Questions (FAQ)
Q:What system is this cable compatible with?
A:It is fully compatible with the 3300 XL 8mm Proximity Transducer System. It connects a 3300 XL 8mm probe to a 3300 XL Proximitor Sensor. It also features complete interchangeability and backward compatibility with older, non-XL 3300 series 5mm and 8mm transducer parts.
Q:What is the electrical capacitance of the cable?
A:The cable features a typical capacitance of 69.9 pF/m (21.3 pF/ft). Maintaining correct electrical capacitance across the system is crucial because changes in system length directly alter the overall tuning of the eddy-current proximity circuit.
Q:What kind of connectors does this cable use?
A:It uses gold-plated brass or beryllium copper ClickLoc connectors. These slide-on, click-locking connectors ensure reliable signal transmission and high corrosion resistance.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330130-030-01-00 |
|
Cable Length Option |
3.0 meters (9.8 feet) |
|
Connector Protector and Cable Option |
Armored cable |
|
Agency Approval Option |
Not required |
|
Output Resistance |
50 Ω |
|
Connector Material |
Gold-plated brass or goldplated beryllium copper. |
|
Probe Tip Material |
Polyphenylene sulfide (PPS). |
|
Probe Case Material |
AISI 303 or 304 stainless steel (SST). |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft) typical |
|
