Product Description:

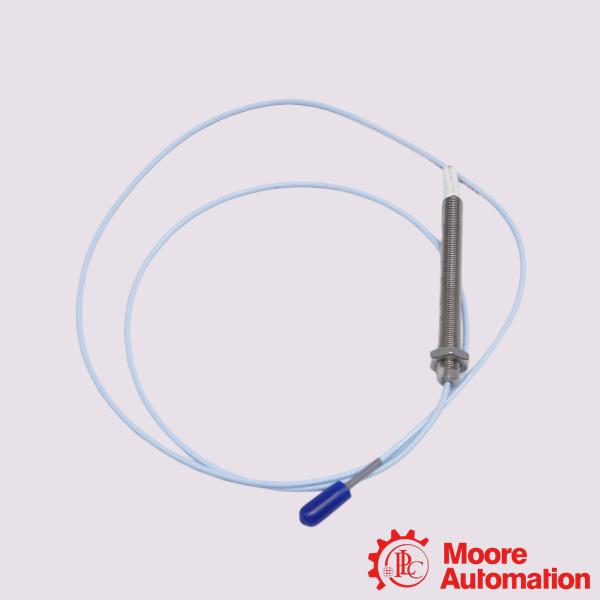

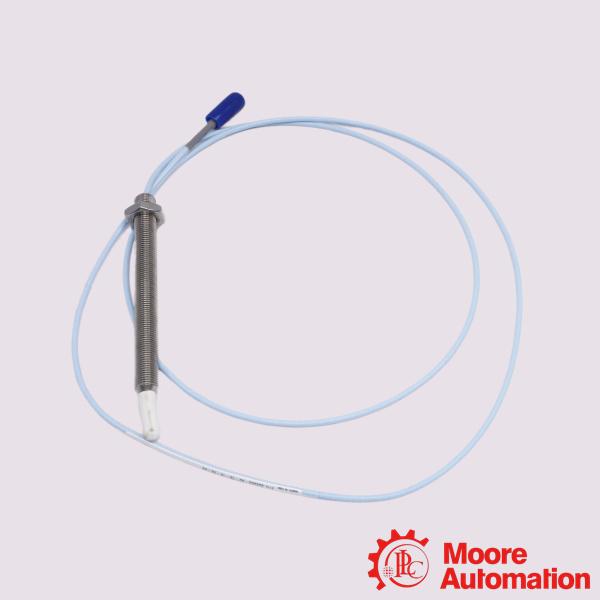

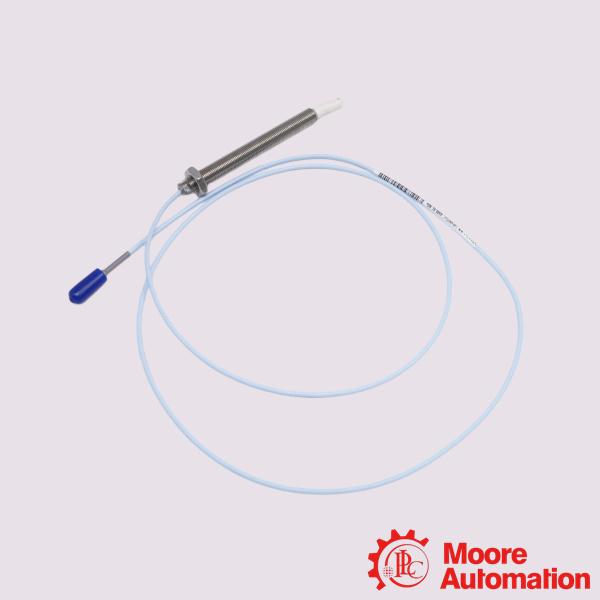

The Bently Nevada 330905-00-08-05-01-00 is a specialized 3300 NSv (Narrow Side-view) Proximity Probe for high-precision machinery monitoring in confined industrial spaces. It is primarily used to measure shaft vibration and position on critical rotating assets where standard proximity sensors cannot fit due to physical space constraints or metallic interference from nearby surfaces.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring 3300 XL NSv Proximity Transducer System.

Frequently Asked Questions (FAQ)

Q:What are the target physical size constraints for this probe?

A:The sensor is designed for fluid-filmed bearing shafts under 51 mm (2 inches) for radial vibration or flat thrust faces under 15 mm (0.6 inches). Standard 5 mm and 8 mm sensors will not yield accurate readings on target sizes smaller than these thresholds.
Q:What is the electrical linear range and output scaling factor?
A:The transducer outputs an average scale factor of 7.87 V/mm (200 mV/mil). Because of its specialized focus and narrow design, its linear displacement range is narrower than standard systems, spanning 0.25 to 1.75 mm (10 to 70 mils).

Q:How do you troubleshoot basic probe sensor health?
A:Using a multi-meter in resistance mode, verify basic electrical continuity across the coaxial circuit. A reading of unlimited resistance (open circuit) from the center conductor to the outer shield layer indicates an internal break, while any measurable grounding contact to the machine casing indicates isolation failure.
