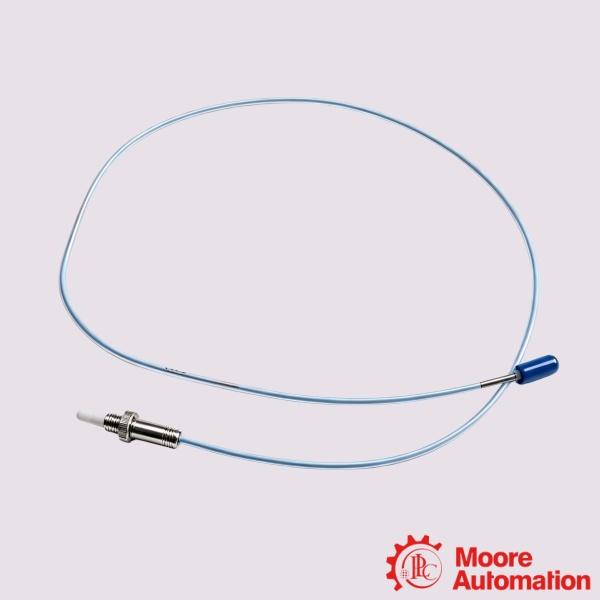

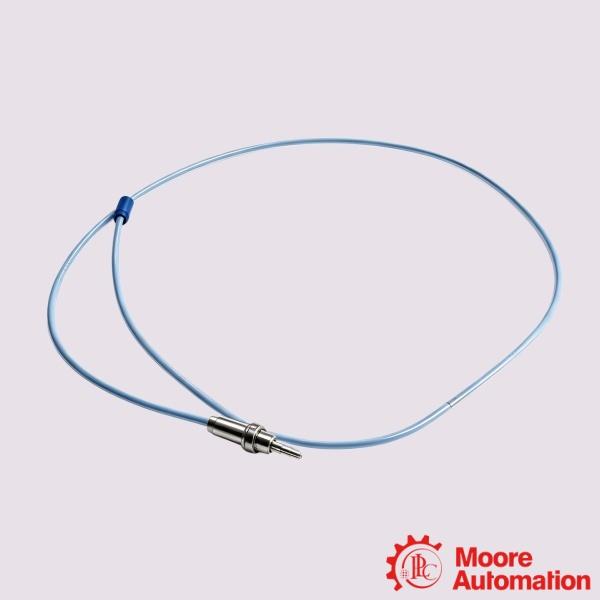

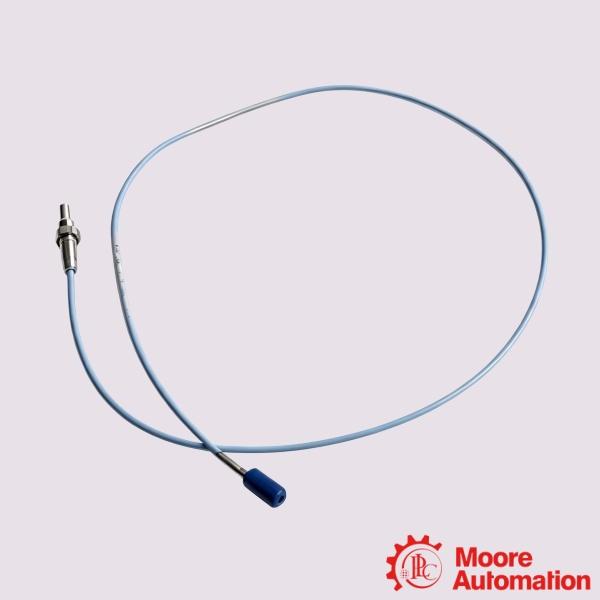

Bently Nevada 83607-00-75-05-02 proximity probe

Description

The Bently Nevada 83607-00-75-05-02 is a proximity probe designed for use in rotating machinery condition monitoring systems. As part of a Bently Nevada proximity transducer system, it performs non-contact measurement of the gap between the probe tip and a conductive target, providing the information required for shaft vibration and shaft position monitoring. The probe is intended for continuous operation on critical rotating equipment where stable and repeatable measurements are required. The probe operates using the eddy current measurement principle. Changes in the distance between the probe tip and the machine surface are converted into an electrical signal that can be processed by a compatible Proximitor Sensor and monitoring system. This measurement method supports both dynamic vibration monitoring and static position measurement without physical contact with the rotating shaft. The 83607-00-75-05-02 configuration is manufactured for compatibility with the corresponding Bently Nevada proximity monitoring system. When installed with the specified extension cable and Proximitor Sensor, it forms a complete transducer system for continuous machinery protection and condition monitoring.

Parameter

Model: 83607-00-75-05-02 proximity probe
Overall Case Length: 7.5 inches
Total Cable Length: 0.5 metres
Unthreaded Length: 0.0 inches (00 option code)
Connector & Cable Type: ClickLoc miniature coaxial connector with standard cable
Output Signal Format: Converts physical gap displacement into proportional electrical signals

Frequently asked questions

What measurement principle does this probe use?
The probe operates on the eddy current principle. Changes in the gap between the probe tip and a conductive target are converted into an electrical signal for vibration and position monitoring.

Is the 83607-00-75-05-02 a complete monitoring system?
No. The probe is used together with a compatible extension cable and Proximitor Sensor to form a complete proximity transducer system.

Why is the initial gap important during installation?
The probe should be adjusted to the specified operating gap before the machine is placed in service. Correct gap settings help obtain the expected measurement range and signal response.

Application areas:
Power Generation: Installed within thermal power blocks, combined-cycle gas turbine systems, and hydroelectric facilities to safeguard primary generator sets.
Oil & Gas Processing: Deployed across upstream production platforms, midstream pipeline compression facilities, and downstream oil processing fields.
Petrochemical & Chemical Refining: Integrated into automated manufacturing loops, chemical reactors, and cracking units that depend on uninterrupted equipment availability.
High-Capacity Industrial Gas Turbines: Specifically utilized as an OEM-configured sensor package to track internal clearances on large-frame industrial gas turbine units (such as specific Nuovo Pignone or GE frame configurations).
