in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
1.8x1.5x111cmWeight:
0.06kgCountry of Origin: :
USADescription:

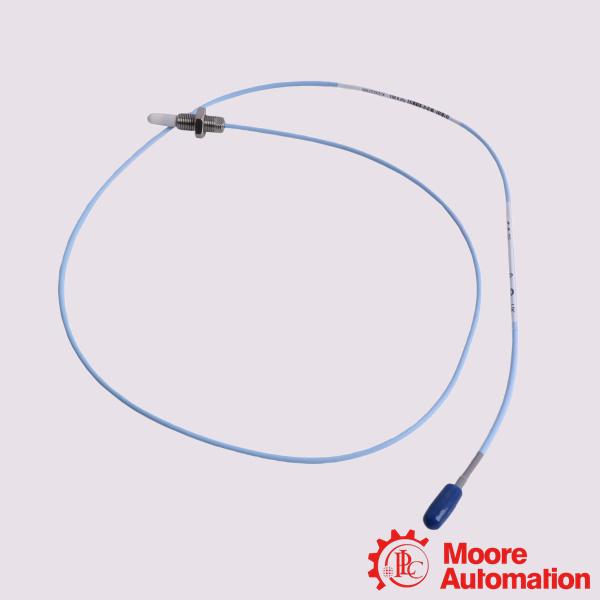

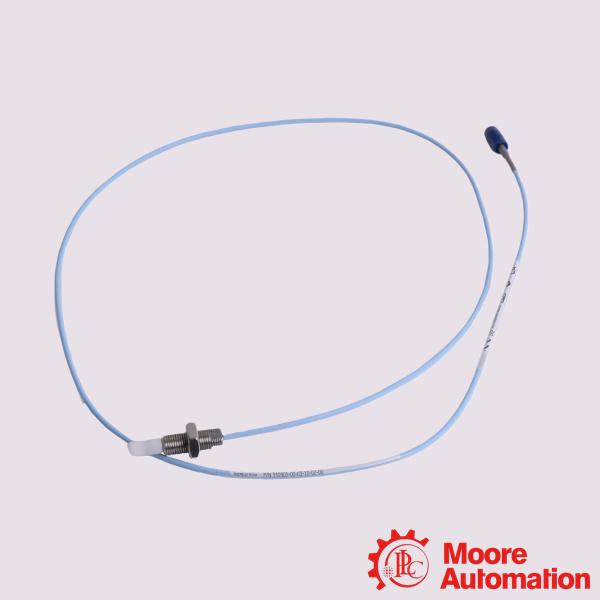

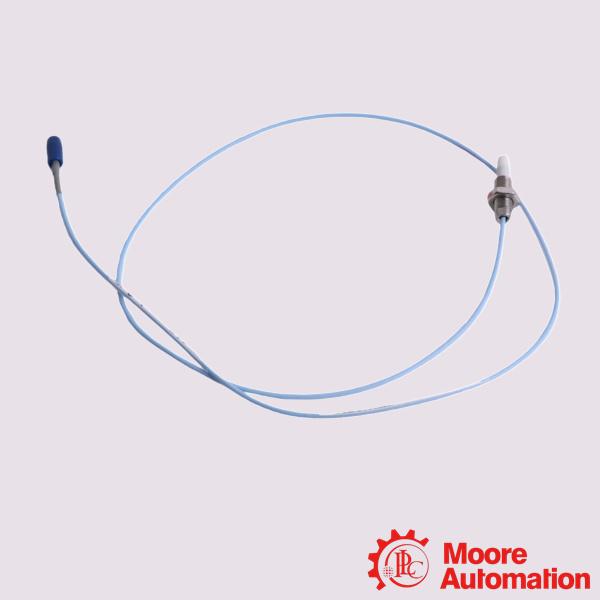

Bently Nevada 330905-00-25-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330905-00-25-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330905-00-25-05-01-CN is a 3300 NSv series eddy-current proximity probe. It is for critical industrial applications with narrow clearance spaces, small shaft diameters, or tight target profiles.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.
Application:
Small Industrial Compressors: Extensively deployed on centrifugal air compressors, refrigeration compressors, and process gas compressors with narrow space restrictions.
High-Speed Turbomachinery: Ideal for measuring small-diameter turbine shafts and localized auxiliary generator bearings.
Industrial Pumps: Monitored for shaft positioning and thrust displacement in boiler feed pumps and chemical process pumps.
Gearboxes: Used inside compact gear elements where side-view clearances around the rotating target are severely limited.
Frequently Asked Questions (FAQ)
Q:What is the function of the "ClickLoc" connector?
A:The gold-plated brass ClickLoc connectors are self-locking mechanisms that prevent heavy machine vibrations from backing the cable loose. They maintain consistent electrical connection integrity over long deployment lifecycles.
Q:Where should this probe be utilized instead of standard 5 mm or 8 mm probes?
A:The 3300 XL NSv system is ideal where counterbore, side-view, or rear-view clearances prevent standard sensors from reading accurately. Its tight magnetic field minimizes cross-talk and side-wall interference on targets with reduced geometry.
Q:What is the nominal sensitivity of this probe?
A:The probe delivers a nominal scale factor of 7.87 V/mm (200 mV/mil) when paired with a matching 3300 XL NSv Proximitor Sensor. A change of 1 mil (0.001 inches) in distance produces a 7.87 mV output variance.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330905-00-25-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
250 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
