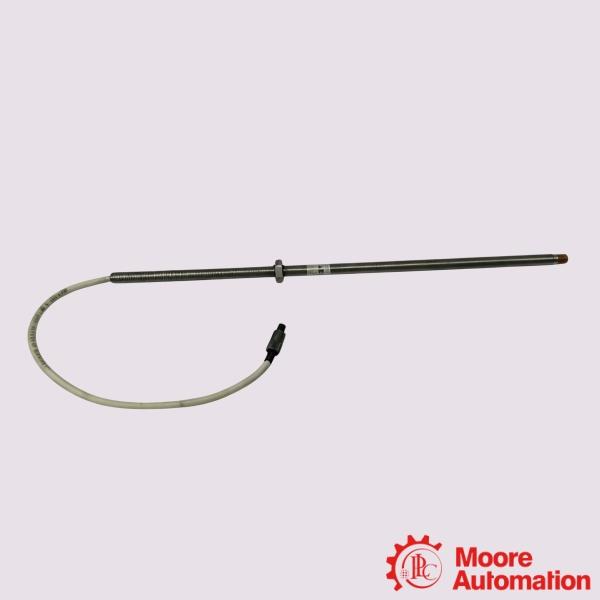

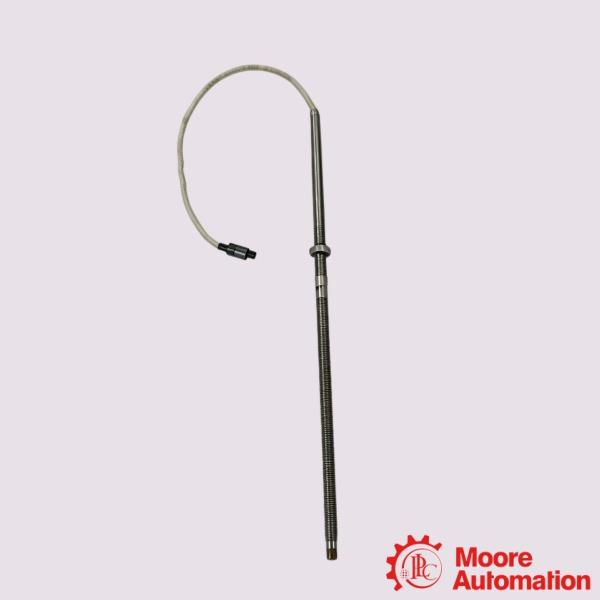

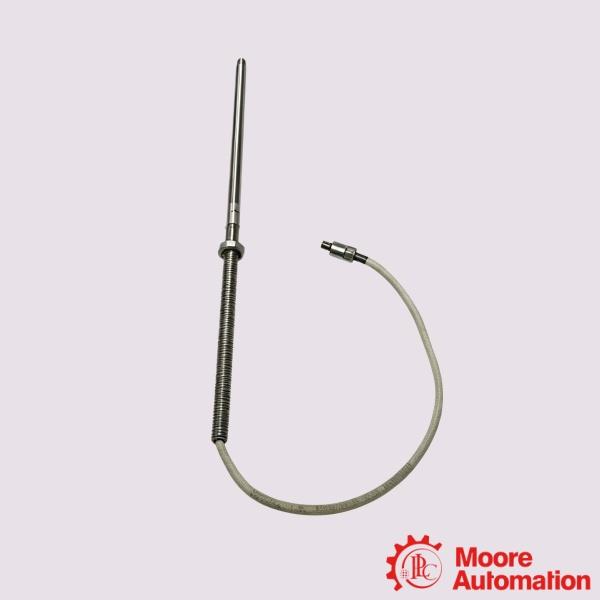

Bently Nevada 83607-00-48-05-02 proximity probe

Frequently asked questions
Q:Can the 83607-00-48-05-02 be installed in industrial environments?
A:Yes. It is intended for use in industrial machinery monitoring applications where reliable shaft vibration and position measurements are required.

Q:Is the 83607-00-48-05-02 supplied as a complete transducer system?
A:No. The probe is one part of the transducer system. A compatible extension cable and Proximitor Sensor are required to complete the measurement system

Q:How does the 83607-00-48-05-02 measure vibration?
A:The probe operates on the eddy current principle. It detects changes in the distance between the probe tip and a conductive target, and the resulting signal is processed by the associated monitoring system.

Description

The Bently Nevada 83607-00-48-05-02 is a proximity probe used for continuous shaft vibration and shaft position measurement in rotating machinery. It operates as part of a Bently Nevada proximity transducer system and measures the gap between the probe tip and a conductive target without physical contact. The resulting signal is used by compatible monitoring equipment to evaluate machine operating conditions and support machinery protection programs. The probe applies the eddy current measurement principle to detect changes in the distance between the probe tip and the rotating shaft. These changes are converted into an electrical signal that can be processed by a compatible Proximitor Sensor and monitoring system. The same measurement can be used for both dynamic shaft vibration and static shaft position monitoring during normal machine operation. The 83607-00-48-05-02 configuration is manufactured for use with the corresponding Bently Nevada extension cable and Proximitor Sensor to form a complete proximity transducer system. When installed according to system requirements, it provides stable measurement performance for long-term machinery condition monitoring.

Parameter

MModel: 83607-00-48-05-02 proximity probe
Overall Case Length: 4.8 inches
Total Cable Length: 0.5 metres
Unthreaded Length0.0 inches (00 option code)
Interface Loop Components: Interconnects with specific extension cable and Proximitor modules
Primary Diagnostic Focus: Shaft relative radial vibration and static shaft position

Application areas

• Power Generation: Installed within thermal power blocks, combined-cycle gas turbine systems, and hydroelectric facilities to safeguard primary generator sets.
• Oil & Gas Processing: Deployed across upstream production platforms, midstream pipeline compression facilities, and downstream oil processing fields.
• Steam Turbine Networks: Positioned to map structural shaft dynamics and thermal elongation variations on main power utility steam turbines.
• Heavy Manufacturing & Infrastructure: Used in steel production lines, large-scale mining installations, municipal water pumping stations, and marine propulsion trains.
