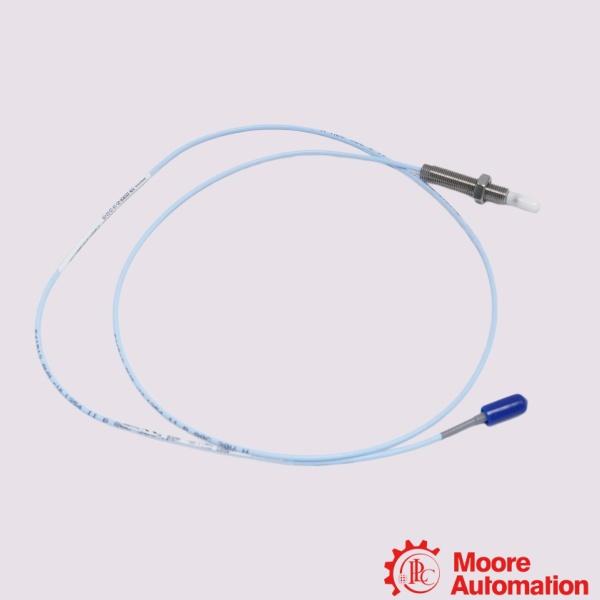

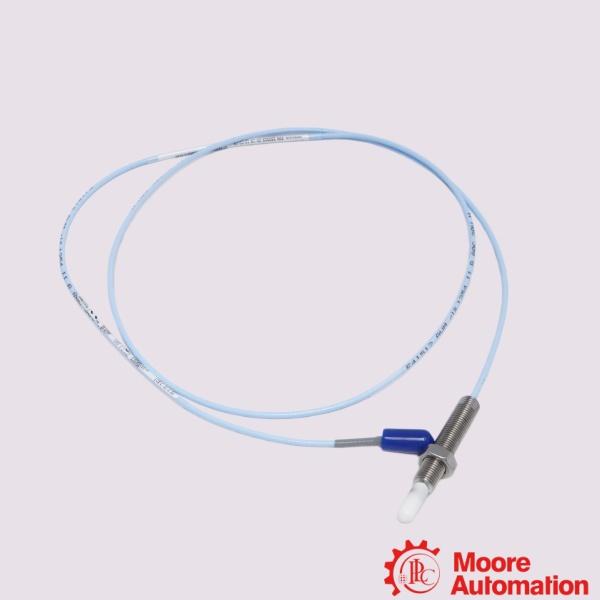

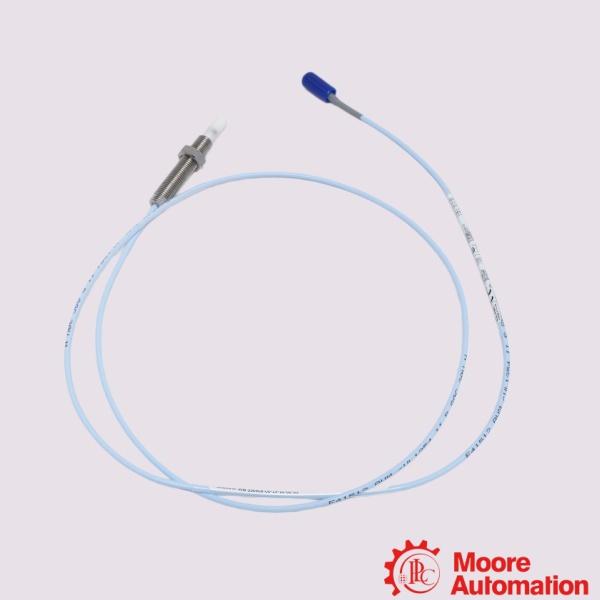

Bently Nevada 330908-00-15-10-02-05 3300 NSv proximity probe

Description

The Bently Nevada 330908-00-15-10-02-05 is a 3300 NSv Extension Cable designed for use within the 3300 NSv Proximity Transducer System. The cable connects a compatible 3300 NSv Proximity Probe to a 3300 NSv Proximitor Sensor, providing the electrical path required to transmit probe signals for shaft vibration, displacement, and position monitoring. This model is configured with a 1.5 m extension cable and is manufactured to match the electrical characteristics required by the 3300 NSv transducer system. When used with compatible NSv probes and Proximitor Sensors, the cable helps maintain the specified total system length and calibration necessary for accurate proximity measurements. The extension cable is intended for rotating machinery installed in locations where space limitations prevent the use of standard 8 mm proximity probe systems. It supports continuous signal transmission between field-mounted probes and monitoring equipment without affecting the non-contact measurement principle of the complete transducer system.

Parameter

Model: 330908-00-15-10-02-05 3300 NSv proximity probe
Unthreaded Length Option: 00- 0.0 in
Overall Case Length Option: 15-1.5 in
Total Length Option: 10-1.0 meter (39 in)
Connector and Cable-Type Option: 02-Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option: 05-Multiple Approvals

Frequently asked questions

Q:Can this cable be used with any proximity probe?
A:No. It should be matched with compatible 3300 NSv Proximity Probes and 3300 NSv Proximitor Sensors to maintain the specified system performance.

Q:Why is an extension cable required?
A:The extension cable carries the electrical signal from the proximity probe to the Proximitor Sensor while maintaining the calibrated electrical characteristics of the complete transducer system.

Q:Does the cable transmit power as well as signals?
A:The extension cable forms the electrical connection between the probe and the Proximitor Sensor, allowing the probe signal to be transmitted continuously during machine operation.

Application areas

• Compact Steam Turbines–Connects proximity probes and Proximitor Sensors used to monitor shaft vibration, shaft displacement, and axial position on compact steam turbine installations.
• Gas Turbines–Provides signal transmission between field-mounted proximity probes and monitoring equipment used to supervise turbine shaft movement during operation.
• Centrifugal Compressors–Supports proximity transducer systems installed on compact centrifugal compressors where installation space is restricted and continuous shaft monitoring is required.
