Product Description:

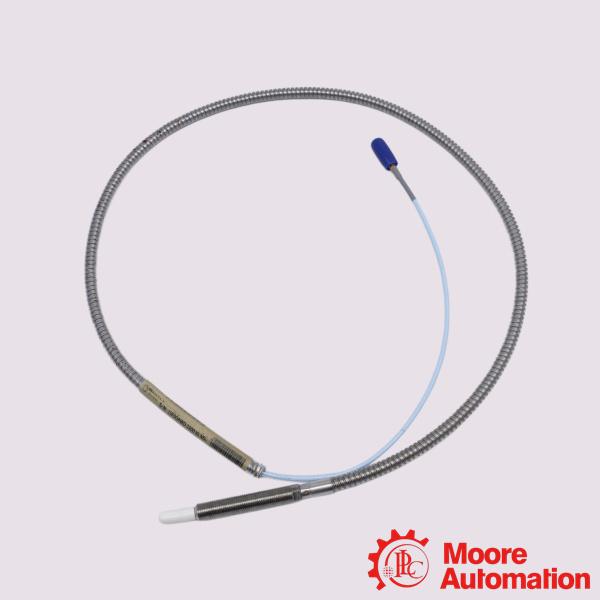

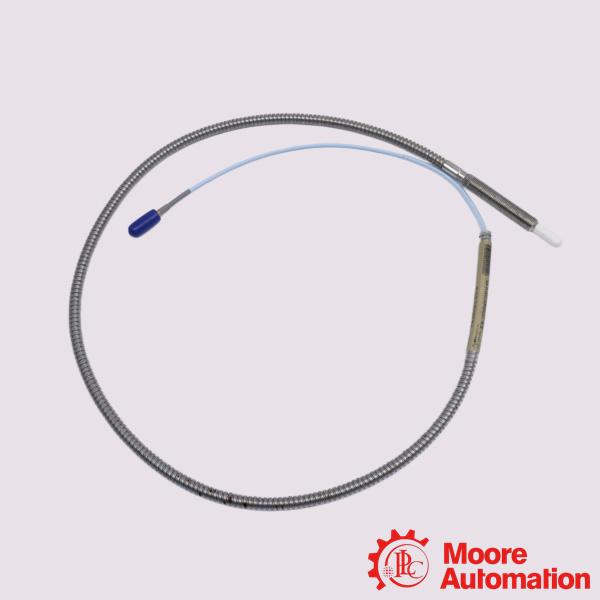

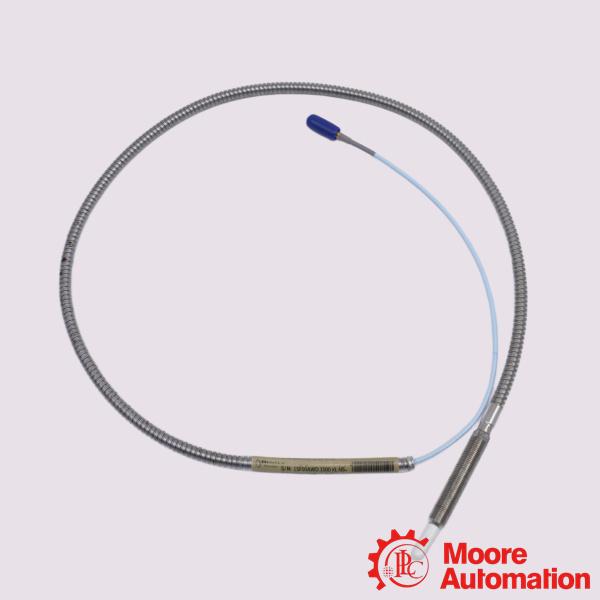

The Bently Nevada 330910-00-23-05-01-00 is a 3300 NSv Proximity Probe for small-scale rotating machinery and confined-space machinery monitoring. It targeting spaces with strict counterbore, side-view, or rear-view clearances where larger 5 mm or 8 mm sensors cannot physically fit.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:What do the cable insulation and armor options entail?

A:The integrated 0.5-meter probe cable uses 75 Ω coaxial design wrapped in Fluoroethylene Propylene (FEP) insulation. The integrated flexible armor sheath is constructed from AISI 302/304 stainless steel, which shields the core coaxial cable from impact damage, pinching, and chemical exposure.
Q:What is the linear range and scale factor of this probe?
A:When used with its companion Proximitor Sensor, the system delivers an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil). It offers a linear measurement range of 1.5 mm (60 mils). This provides precise tracking over a slightly shorter distance than standard 8mm probes, trading raw range for superior immunity against target side-view limits.

Q:What are the main applications for the 3300 NSv system?
A:The system is built primarily for small-scale machinery or locations with tight physical restraints. This includes centrifugal air compressors, refrigeration compressors, and small process gas compressors. It is ideal for measuring radial vibration on small shafts under 51 mm (2 inches) or axial displacement on flat target areas narrower than 15 mm (0.6 inches).
