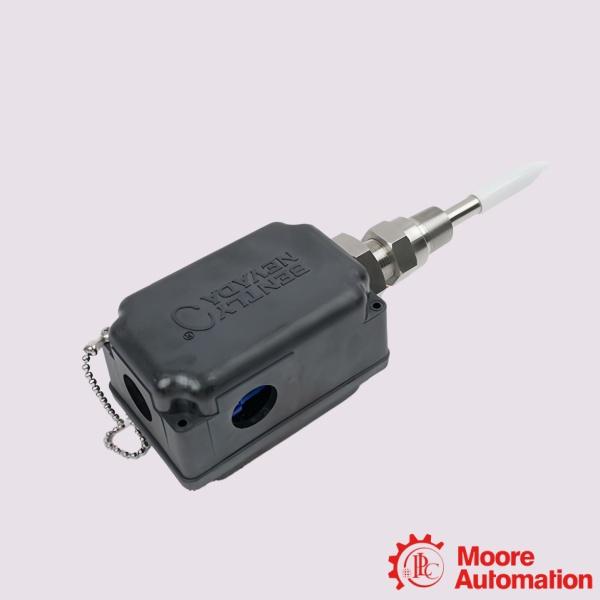

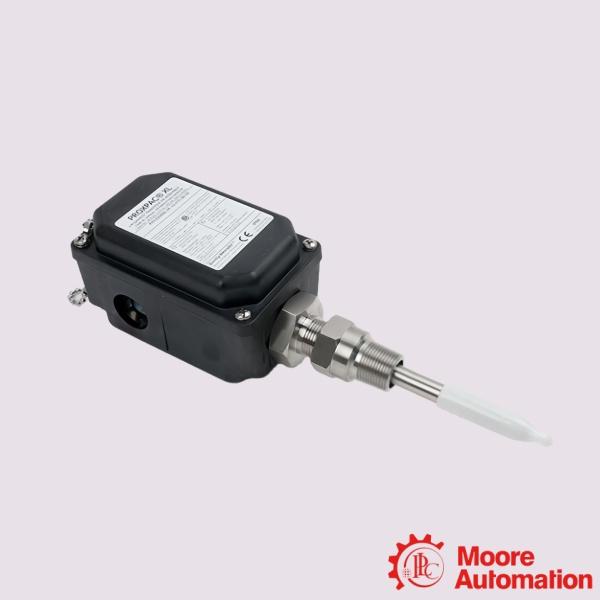

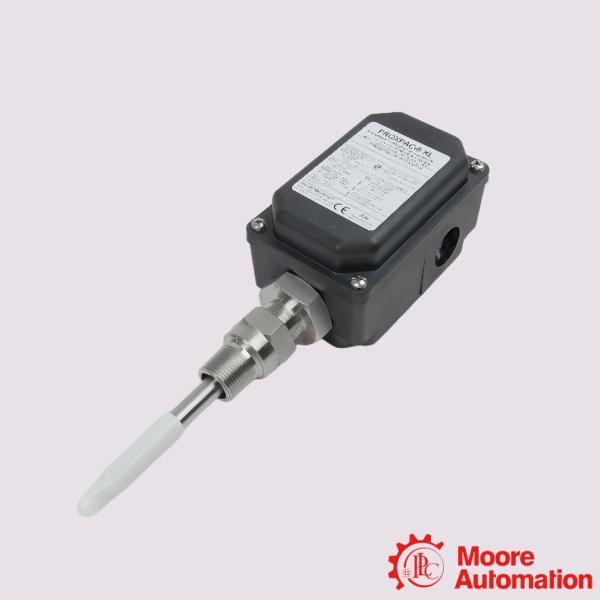

Bently Nevada 330880-28-15-042-00-02 PROXPAC XL Proximity Transducer Assembly

Description

The Bently Nevada 330880-28-15-042-00-02 is a PROXPAC XL Proximity Transducer Assembly that integrates a 3300 XL 8 mm proximity probe and 3300 XL Proximitor® Sensor into a single self-contained housing. This design eliminates the need for a separate extension cable and external Proximitor housing, allowing field wiring to connect directly between the monitoring system and the PROXPAC XL assembly.This configuration includes a 1.5-inch (38 mm) standoff adapter, a 4.2-inch (107 mm) probe penetration length, 3/4-14 NPT mounting thread, and Multiple Approvals for hazardous-area installations. The housing is manufactured from glass-filled polyphenylene sulfide (PPS), providing excellent corrosion resistance while reducing weight compared with traditional metal housings.

Parameter

Model: 330880-28-15-042-00-02 PROXPAC XL Proximity Transducer
Probe and Approvals Option: 28-3300 XL 8 mm probe with Multiple Approvals
Standoff Adapter Option (B Dimension): 15-1.5 in (38 mm)
Probe Penetration Option (C Dimension): 042-4.2 in (105 mm)
Fittings Option: 00-No fittings two plugs and two washers
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option.)

Frequently asked questions

Q:What is the Bently Nevada 330880-28-15-042-00-02?
A:It is a PROXPAC XL Proximity Transducer Assembly that integrates a 3300 XL 8 mm proximity probe and 3300 XL Proximitor® sensor into a single housing, eliminating the need for a separate extension cable and external Proximitor mounting.

Q:What is unique about the PROXPAC XL series compared to standard 3300 XL loops?
A:The PROXPAC XL integrates the proximity probe and the Proximitor Sensor into one single glass-reinforced housing assembly. It eliminates the need for separate probe-to-sensor extension cables and specialized junction boxes at the machine side.

Q:Does the 330880-28-15-042-00-02 require an extension cable?
A:No, it is self-contained with integral probe and Proximitor sensor, eliminating the need for extension cables.

Application areas

The Bently Nevada 330880-28-15-042-00-02 is an integrated PROXPAC XL Proximity Transducer Assembly. This specialized hardware combines a 3300 XL 8 mm proximity probe and a Proximitor Sensor into a single, glass-reinforced, weatherproof housing.

• Oil & Gas Downstream & Petrochemical: Widely used across refinery oil-water separators, heavy process cooling fan banks, and gas treatment facilities.
• Power Generation & Utilities: Protecting the main cooling tower loops of thermal, geothermal, and nuclear power plant condensation systems.
• Wastewater Treatment & Chemical processing: Monitoring massive aeration blowers and aggressive chemical mixing shafts prone to heavy chemical vapors.
