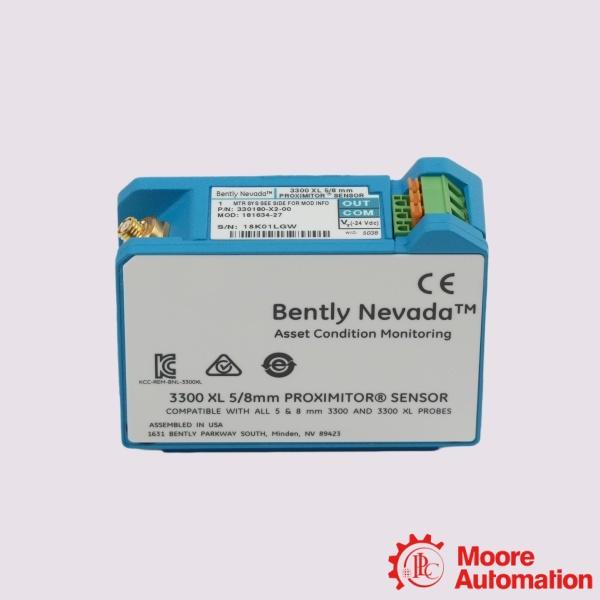

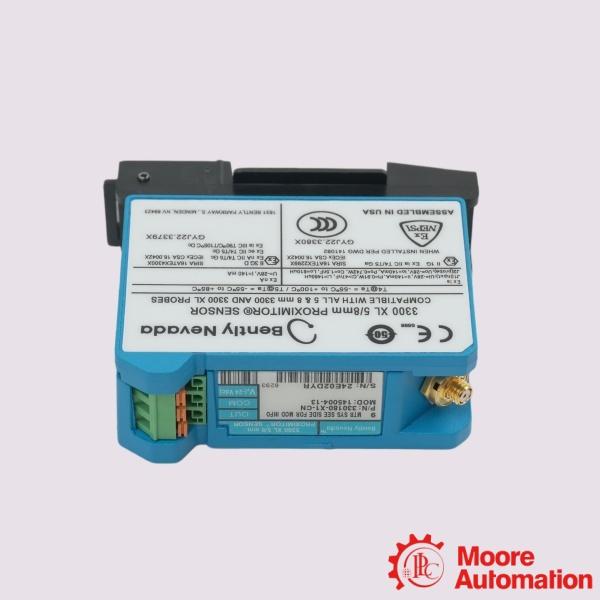

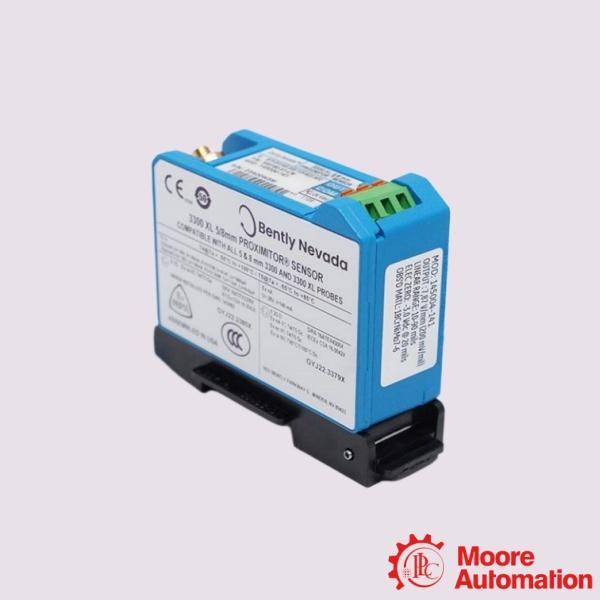

Bently Nevada 330180-X1-05 MOD: 145193-15 3300 XL Proximitor Sensor

Description

The Bently Nevada 330180-X1-05 MOD:145193-15 is a 3300 XL Proximitor® Sensor designed for use with the 3300 XL 8 mm Proximity Transducer System. Working together with a compatible 3300 XL proximity probe and extension cable, it conditions the eddy-current signal and provides an output voltage proportional to the distance between the probe tip and the target surface. The sensor incorporates an improved design that supports both DIN-rail and panel mounting, while providing enhanced immunity to RFI/EMI for reliable operation in demanding industrial environments. As part of the 3300 XL 8 mm system, it offers complete interchangeability with compatible probes and extension cables, eliminating the need for individual component matching or bench calibration. The standard 5-meter system complies with the performance requirements of API 670 for mechanical configuration, linear range, accuracy, and temperature stability.

Parameter

Model: 330180-X1-05 MOD: 145193-15 3300 XL Proximitor Sensor
ReTotal Length and Mounting Option:
11-1.0 meter (3.3 feet) system length DIN mount
51-5.0 meters (16.4 feet) system length DIN mount
91-9.0 meters (29.5 feet) system length DIN mount
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals

Frequently asked questions

Q:What is the Bently Nevada 330180-X1-05 MOD:145193-15?
A:The 330180-X1-05 MOD:145193-15 is a 3300 XL Proximitor® Sensor used as part of the 3300 XL 8 mm Proximity Transducer System. It works with a compatible proximity probe and extension cable to provide an output voltage proportional to the distance between the probe tip and the target surface.

Q:Does the 330180-X1-05 MOD:145193-15 comply with API 670?
A:Yes, The standard 3300 XL 8 mm 5-meter system complies with the requirements of API 670 for mechanical configuration, linear range, accuracy, and temperature stability.

Q:What does the "05" option indicate?
A:The 05 agency approval option indicates CSA, ATEX, and IECEx approvals for applicable hazardous-area installations, as specified in the official ordering information.

Application areas

The Bently Nevada 330180-X1-05 MOD:145193-15 customized 9.0-meter panel-mount Proximitor Sensor is engineered for highly specialized non-contacting displacement and vibration measurements. Because of its custom circuit tuning (MOD:145193-15), panel-mount base, and hazardous area approvals, it is deployed in specific critical asset-protection scenarios.

• Oil & Gas Refineries & LNG Terminals: Installed inside critical process compressor loops handling highly volatile or flammable hydrocarbons.
• Thermal & Nuclear Power Plants: Protecting massive turbo-generators supplying critical power grids, ensuring adherence to strict API 670 safety control loop regulations.
• Large Air Separation Plants (ASP): Monitoring oxygen/nitrogen compressor turbine sets running continuously at extreme speeds.
