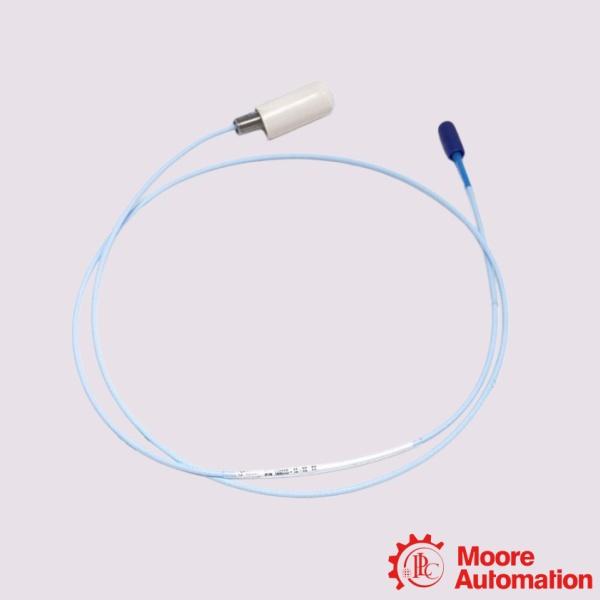

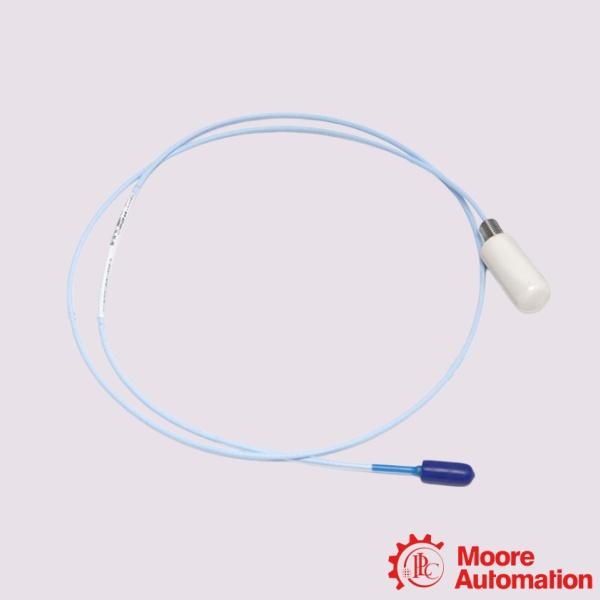

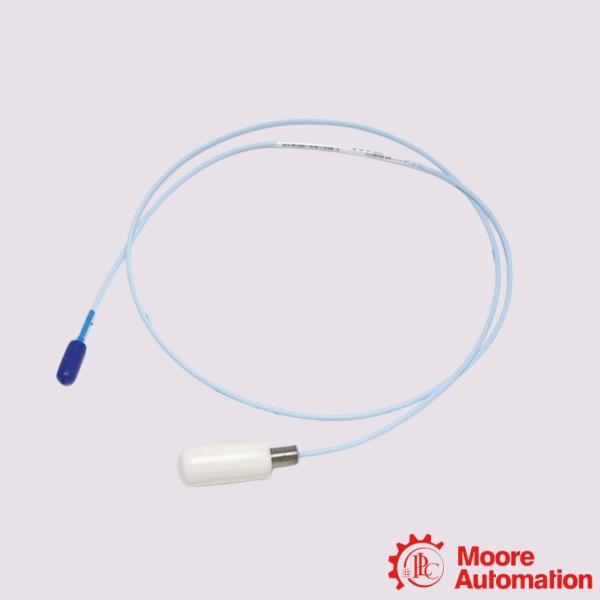

Bently Nevada 146054-010-20-02-05 3300 XL Ceramic Capped Proximity Probe

Description

Bently Nevada 146054-010-20-02-05 is a 3300 Ceramic Capped Proximity Probe designed for non-contact measurement of shaft vibration and position in aggressive chemical and high-pressure environments. The probe features an alumina ceramic sensing tip and a 304 stainless steel case, providing excellent resistance to corrosive media such as anhydrous ammonia and other extreme pH substances while extending service life. It is rated for operating pressures up to 34 bar (500 psi) and is compatible with 3300 Proximitor Sensors and extension cables. The 146054-010-20-02-05 version is specifically designed for applications where only the front of the probe is exposed to corrosive gases or liquids. Its hermetically sealed ceramic-to-metal interface is helium leak tested to prevent media ingress from the probe tip, ensuring reliable long-term performance in demanding machinery monitoring applications.

Parameter

Model: 146054-010-20-02-05 3300 XL Proximity Probe
Overall Case Length Option: 010-1.0 in
Total Length Option: 20-2.0 meters (6.6 feet)
Connector and Cable-Type Option: 02-Miniature coaxial ClickLoc connector standard cable
Agency Approval Option: 05-CSA, ATEX, IECEx

Frequently asked questions

Q:What is the Bently Nevada 146054-010-20-02-05?
A:The Bently Nevada 146054-010-20-02-05 is a 3300 Ceramic Capped Proximity Probe designed for non-contact shaft vibration and position measurements in corrosive chemical and high-pressure environments. It features an alumina ceramic probe tip and a 304 stainless steel case for enhanced durability.

Q:What applications is the 146054-010-20-02-05 designed for?
A:It is intended for rotating machinery operating in aggressive environments where the front of the probe is exposed to corrosive gases or liquids, such as anhydrous ammonia or other extreme pH media.

Q:Which monitoring system is compatible with the 146054-010-20-02-05?
A:The probe is designed to operate with a compatible 3300 Proximitor Sensor and extension cable as part of a complete proximity transducer system.

Application areas

The Bently Nevada 146054-010-20-02-05 is engineered for non-contact shaft vibration and position monitoring in environments characterized by extreme pressures and highly corrosive chemicals.

• Chemical & Fertilizer Processing: Specifically designed for plants handling anhydrous ammonia (NH₃), ammonium hydroxide (NH₄OH), and high-pH solutions.
• Oil & Gas Refining: Ideal for process streams involving corrosive gases sour gases and volatile liquids.
• Pulp & Paper Industry: Used in chemical recovery loops and areas exposed to "black liquor" or aggressive pulping chemicals.
• Refrigeration & Industrial Gas Production: Deployed in large-scale industrial ammonia cooling systems and gas liquification plants.
