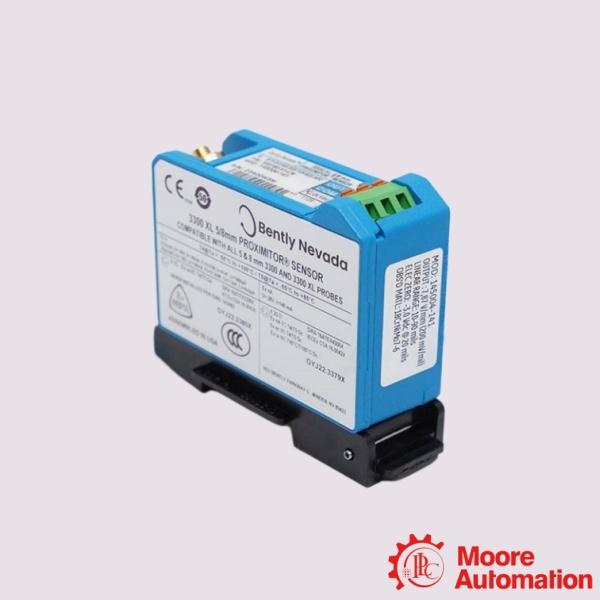

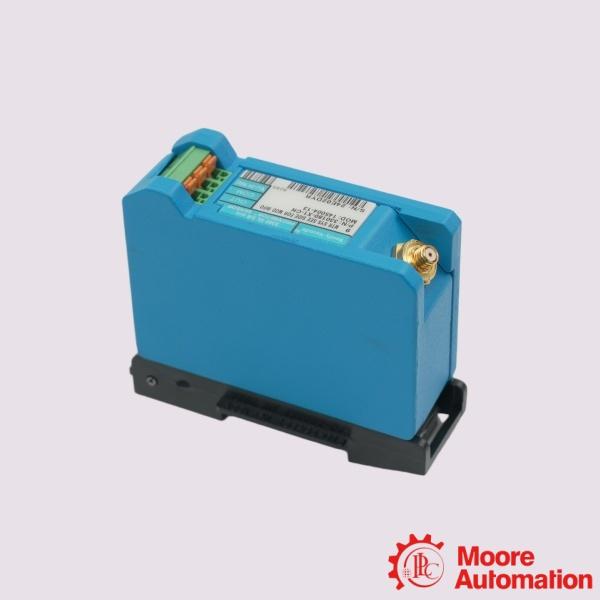

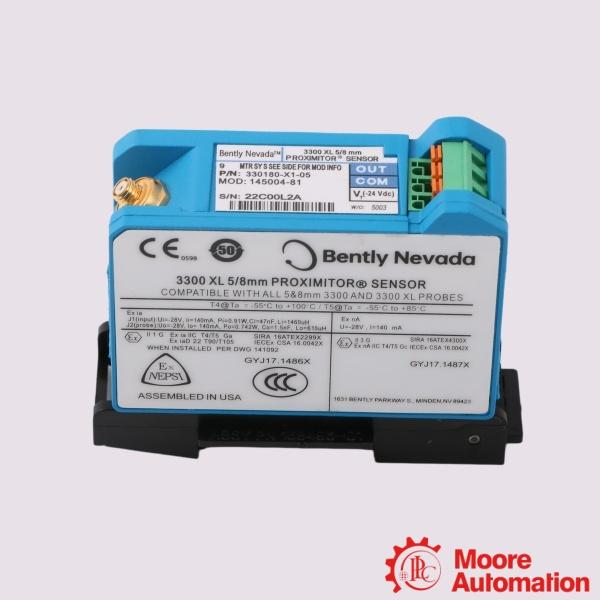

Bently Nevada 330180-X1-05 MOD:145004-15 3300 XL 8 mm Proximitor Sensor

Parameter
Model: 330180-X1-05 MOD:145004-15 3300 XL 8 mm Proximitor Sensor
Total Length and Mounting Option: 5.0 meters (16.4 feet) system length, DIN mount
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Mounting Style: 35 mm DIN Rail Mount
Frequency Response Spectrum: 0 Hz to 10 kHz (0 to 600,000 cpm)

Description

The Bently Nevada 330180-X1-05 MOD:145004-15 provides signal conditioning for the 3300 XL 8 mm Proximity Transducer System. The sensor receives input signals from a compatible 3300 XL proximity probe and extension cable, processes the eddy current measurement signal, and converts the detected gap changes between the probe tip and the rotating shaft surface into proportional voltage outputs for machinery monitoring systems. The 330180-X1-05 configuration features the DIN rail mounting option of the 3300 XL Proximitor Sensor family. It is designed to be installed in machinery monitoring cabinets and works together with 3300 XL probes and extension cables to provide reliable measurement of shaft vibration, shaft position, and displacement changes on critical rotating equipment. The 3300 XL Proximitor Sensor provides the signal interface required for machinery protection and condition monitoring applications. When combined with compatible monitoring systems, it supports measurements such as radial vibration, axial position, Keyphasor reference signals, and rotor displacement monitoring for rotating machinery.

Frequently asked questions

Q:What is the main function of the Bently Nevada 330180-X1-05 MOD:145004-15?
A:Processes eddy current signals from 3300 XL 8 mm proximity probes and converts the measurement signal into proportional voltage output for shaft vibration, displacement, and position monitoring.

Q:Which system is the 330180-X1-05 MOD:145004-15 used with?
A:The sensor is designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System and operates together with a compatible proximity probe and extension cable to provide non-contact shaft measurement.

Q:How does the 330180-X1-05 MOD:145004-15 operate?

A:The Proximitor Sensor receives the signal generated by the proximity probe according to the gap between the probe tip and the conductive target surface. The sensor processes this eddy current signal and provides an output proportional to the measured distance.

Application areas

• Oil and Gas Equipment–Applied in rotating machinery monitoring systems for compressors, turbines, and pumps operating in oil and gas production and processing facilities.
• Petrochemical and Process Plants–Used for continuous monitoring of rotating equipment where accurate shaft vibration and position signals are required for operational control and maintenance activities.
• Power Generation Equipment–Integrated into turbine and generator monitoring systems to provide shaft displacement and vibration measurement signals for equipment protection.
• Industrial Machinery Monitoring Systems–Used with Bently Nevada monitoring platforms for radial vibration measurement, axial position monitoring, Keyphasor reference signals, and rotor displacement measurement applications.
