Product Description:

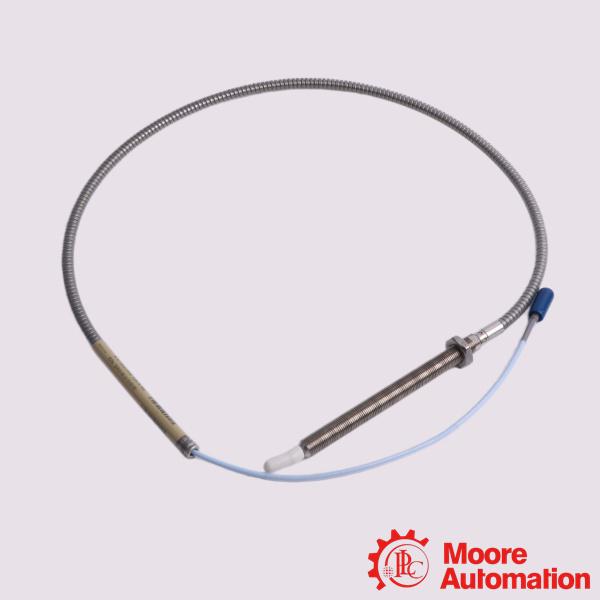

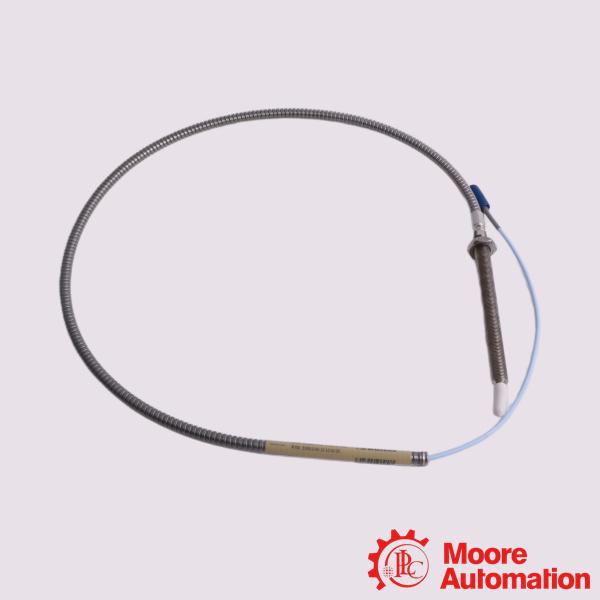

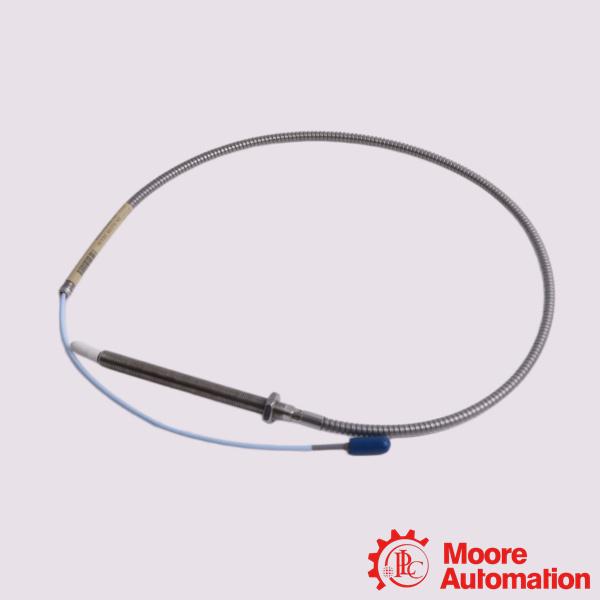

The Bently Nevada 330910-00-15-05-01-CN is a 3300 NSv Proximity Probe for critical asset condition monitoring and vibration analysis on industrial rotating machinery. This specific "NSv" (Narrow System variant) transducer system is engineered explicitly for applications with tight installation restrictions, counterbore limitations, or small target geometries.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:Can I connect this probe directly to a standard 8mm Proximitor sensor?

A:No. The 3300 NSv probe must match with a corresponding 3300 XL NSv Proximitor Sensor and an NSv extension cable. Mixing NSv probes with standard 3300 XL 5mm or 8mm Proximitor hardware will disrupt the electrical tuning, causing severe calibration and reading errors.
Q:How does this sensor track vibration?
A:It relies on the eddy current principle. The connected Proximitor sensor drives a low-power radio frequency (RF) signal to the coil embedded inside the probe tip. This sets up an electromagnetic field that reacts to the proximity of a conductive metal surface, translating mechanical movement into an electrical gap voltage.

Q:What size shaft or target does this probe require?
A:It is optimized for small-target applications. This includes tracking radial vibration on rotating shafts smaller than 51 mm (2 inches) or tracking axial thrust positions on flat metal targets smaller than 15 mm (0.6 inches).
