in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
23x23x4cmWeight:
0.5kgCountry of Origin: :
USADescription:

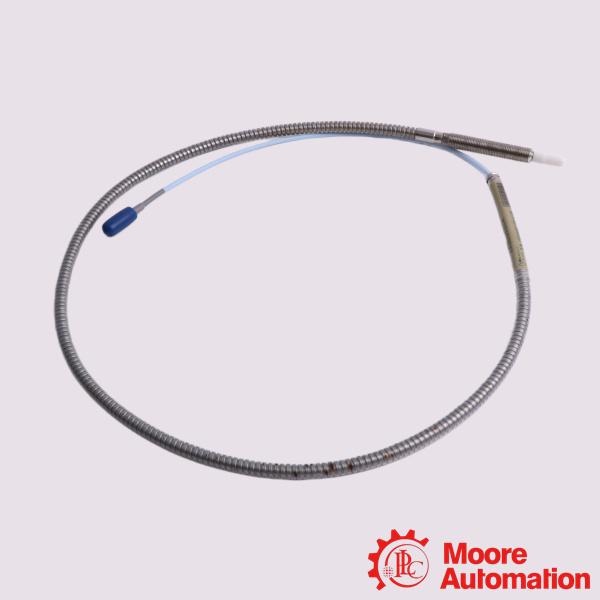

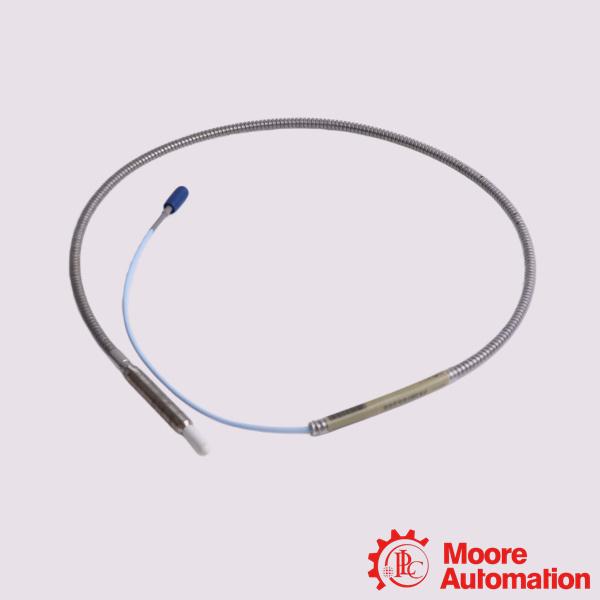

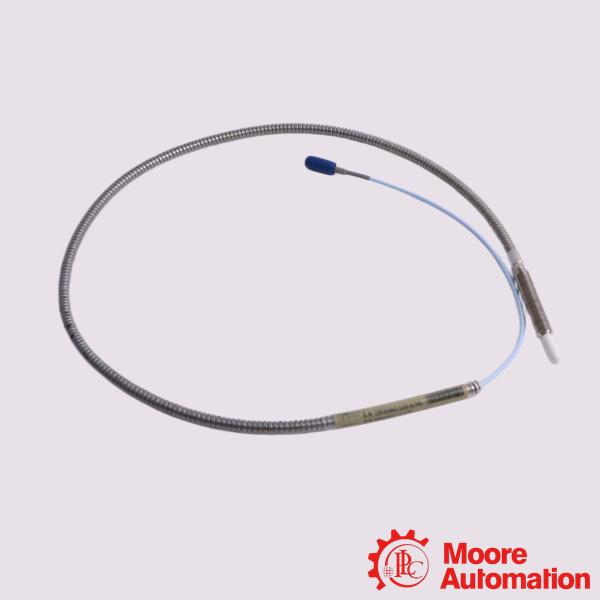

Bently Nevada 330910-00-14-05-01-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330910-00-14-05-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330910-00-14-05-01-00 is a 3300 NSv Proximity Probe for machinery condition monitoring in tight spaces or on small targets. Because this specific model variant utilizes a compact eddy-current sensor layout, its core purpose is to deliver accurate displacement readings where standard 5mm or 8mm probes face geometric layout limits.The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
Application:
Centrifugal Air Compressors: Monitored heavily for high-frequency rotor stability and shaft alignment inside compact castings.
Refrigeration Compressors: Deployed to track thermal-induced thrust movements and high-speed vibrations in restricted internal environments.
Process Gas Compressors: Ideal for critical chemical processing equipment where housing space limits rear-view or side-view sensor access.
Small Rotating Equipment: Tailored for any fluid-film bearing machinery featuring tight clearances, small counterbores, or compact casing restrictions.
Frequently Asked Questions (FAQ)
Q:How do I check if this probe is broken or grounded out?
A:Set a digital multimeter to resistance mode. Measure across the inner core pin and the outer connector barrel to ensure it reads within 3.7 to 4.7 Ohms. Next, test for continuity between the center lead pin and the external armored jacket. Any registered continuity or low resistance indicates a ground fault inside the probe body or cable.
Q:Can I use this probe with standard 3300 XL 5 mm or 8 mm components?
A:No. Cross-matching causes severe calibration errors. This probe must be paired with an NSv extension cable (such as the 330930 cable series) and a dedicated 3300 XL NSv Proximitor Sensor.
Q:What does "NSv" mean, and when should I use this probe?
A:NSv stands for Near-field Systems version. Use it when tight physical spaces restrict standard 5 mm or 8 mm probes. It handles targets like shafts smaller than 51 mm (2 inches) or flat axial surfaces smaller than 15 mm. Typical installations include centrifugal, refrigeration, and process gas compressors.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330910-00-14-05-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
140 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Agency Approval Option |
Not required |
|
