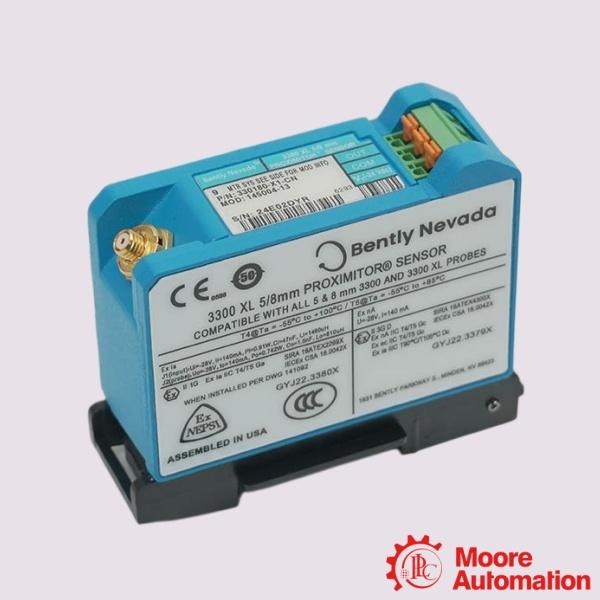

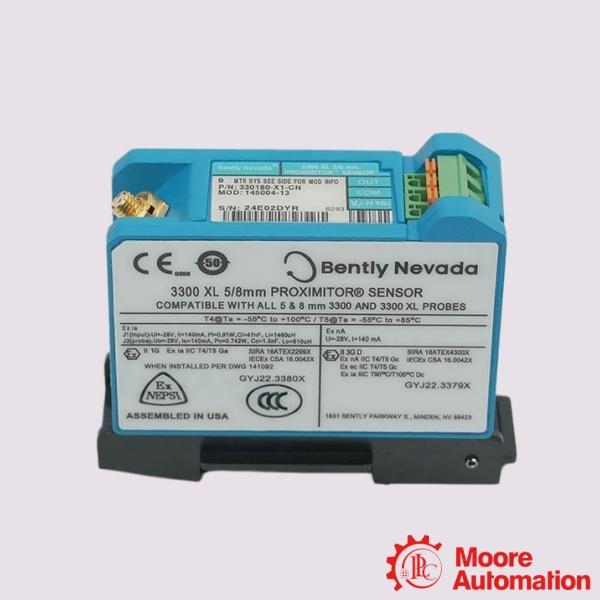

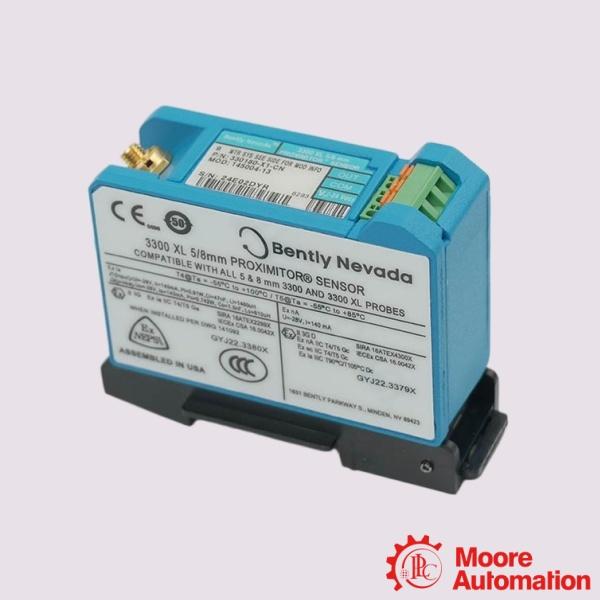

Bently Nevada 330180-X1-05 MOD: 145004-102 3300 XL Proximitor Sensor

Description

The Bently Nevada 330180-X1-05 MOD 145004-102 is a 3300 XL Proximitor Sensor used as part of the Bently Nevada 3300 XL proximity transducer system for continuous monitoring of rotating machinery. The sensor operates with a compatible proximity probe and extension cable to convert changes in the probe gap into a proportional output signal for machinery protection and condition monitoring systems. The Proximitor Sensor processes the signal received from the proximity probe using eddy current measurement technology. When installed with the specified transducer components, the system provides non-contact measurement of shaft vibration and shaft position without contacting the rotating surface. The measured signal can be used for radial vibration monitoring, axial position measurement, differential expansion, eccentricity, and other shaft movement measurements supported by the 3300 XL transducer system.

Parameter

Model: 330180-X1-05 MOD 145004-102 3300 XL Proximitor Sensor
Total Length and Mounting Option: X1-1.0 meter (3.3 feet) system length,panel mount
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals
Linear Range: 0.25 mm to 2.3 mm (10 mils to 90 mils)
Supply Voltage: -17.5 Vdc to -26 Vdc (nominal -24 Vdc)
Output Resistance: 50 Ω
Operating Temperature: -52°C to +100°C (-62°F to +212°F)

Frequently asked questions

Q:What type of measurement does the Proximitor Sensor support?
A:When connected to the matching probe and extension cable, the sensor provides measurements used for shaft vibration, shaft position, and other proximity monitoring functions supported by the 3300 XL system.

Q:What does MOD 145004-102 mean?
A:MOD 145004-102 is a factory engineering modification assigned by Bently Nevada for a specific customer or application. Equipment using this version should be replaced with the same modification unless an official replacement is specified.

Q:Is the 330180-X1-05 MOD 145004-102 suitable for continuous operation?
A:Yes. It is intended for continuous machinery monitoring on critical rotating equipment operating under normal industrial conditions.

Application areas

• Power Generation Plants: Extensively deployed across large utility power blocks, conventional islands of nuclear generation facilities, and combined-cycle gas turbine fields.
• Oil & Gas Petrochemical Processing: Applied on massive continuous production loops, chemical refining plants, and upstream offshore extraction platforms where heavy rotor tracking is critical.
• Heavy Industrial Manufacturing: Integrated into major continuous plant operations, steel production lines, and mining processing networks utilizing high-mass turbomachinery assets.
