Product Description:

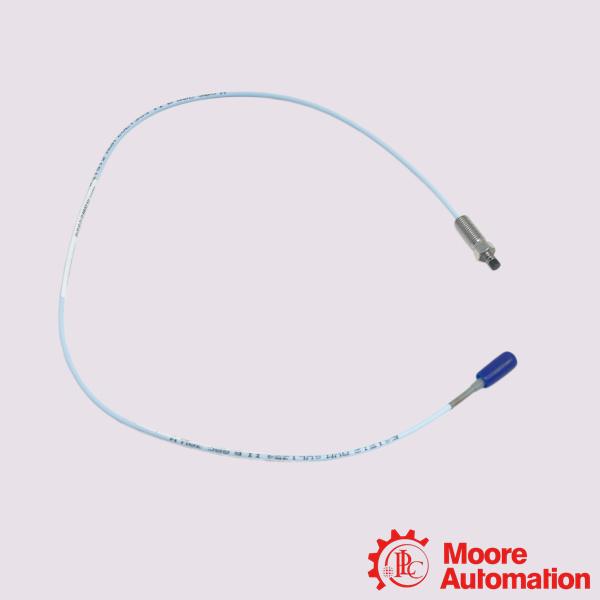

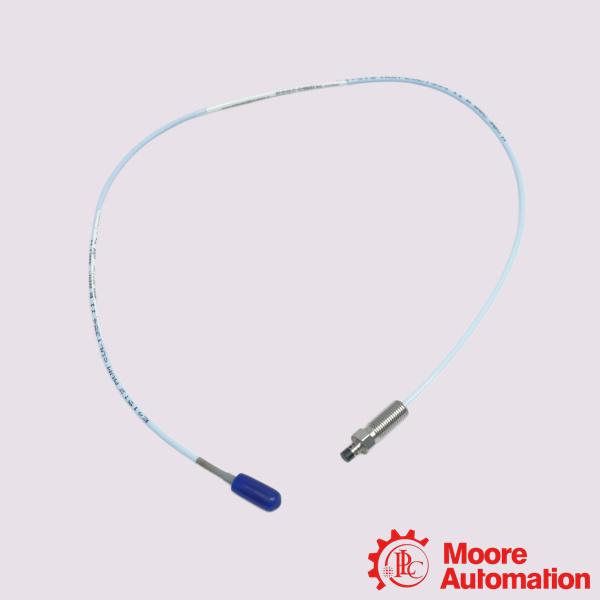

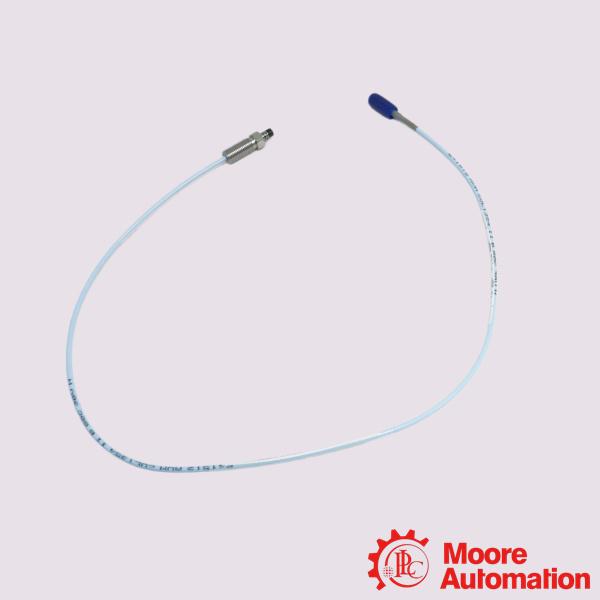

The Bently Nevada 330906-02-12-05-02-CN is a 3300 NSv Reverse Mount Proximity Probe for critical machinery condition monitoring. Because of its specialized narrow-view technology, it is primarily targeted at rotating machinery with tight physical installation clearances and small target sizes.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).

Frequently Asked Questions (FAQ)

Q:What does the ClickLoc connector bring to the system?

A:The 02 option indicates a miniature coaxial ClickLoc connector. This quick-connect mechanism prevents unintended disconnection due to vibration while doing away with the need for specialized torque tools when connecting the probe to its extension cable.
Q:Can this probe be paired with any standard extension cable?
A:No, it must be paired with 3300 NSv series extension cables and connected to a matching 3300 NSv Proximitor Sensor. Mixing NSv system components with standard 3300 XL 5mm or 8mm hardware will cause severe calibration mismatches and inaccurate voltage output readings.

Q:How does the "Reverse Mount" design affect installation?
A:Unlike forward-mount options that screw into a bracket from the outside, standard reverse mount probes are designed to be installed through the inside of a machine case or a specialized probe housing assembly. They feature a built-in flange or thread structure that seats securely into the mounting point.
