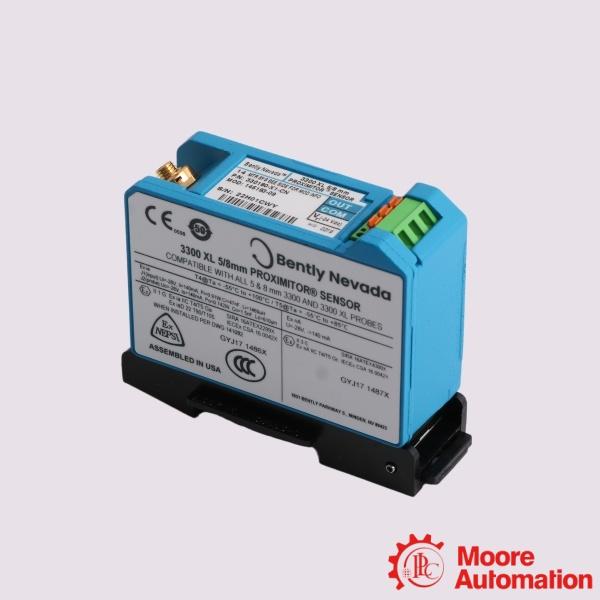

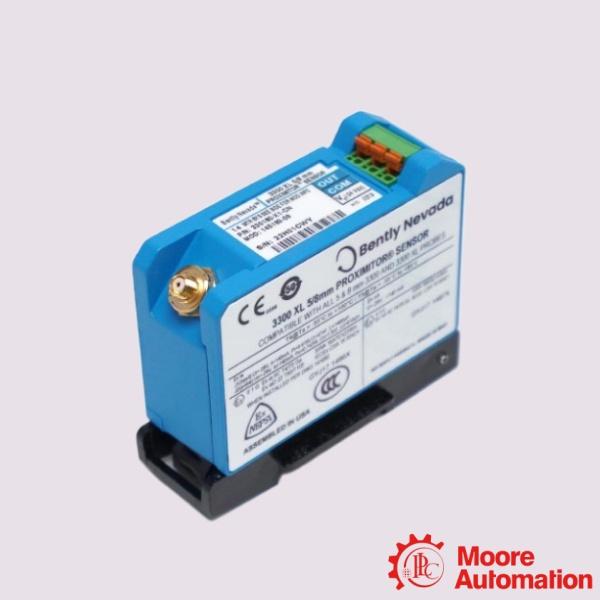

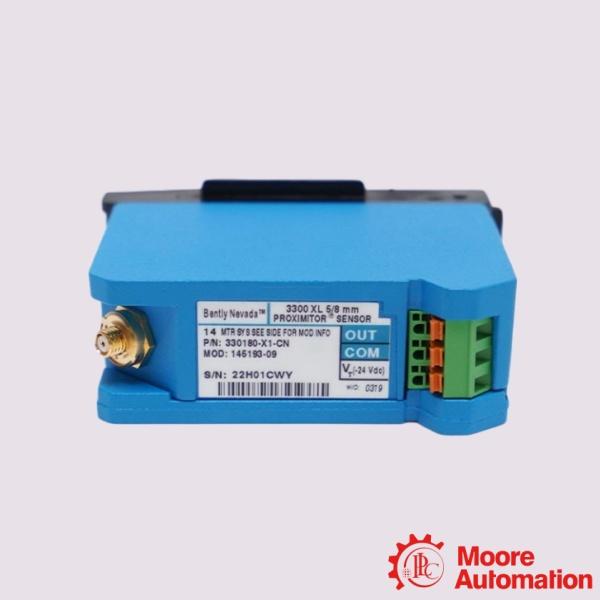

Bently Nevada 330180-X1-05 MOD:145004-09 3300 XL Proximitor Sensor

Parameter
Model: 330180-X1-05 MOD:145004-09 3300 XL Proximitor Sensor
Total Length and Mounting Option: 5.0 meters (16.4 feet) system length, DIN mount
Agency Approval Option: CSA, ATEX, IECEx  Approvals
Mounting Style: 35 mm DIN Rail Mount
Frequency Response: 0 Hz to 10 kHz (0 to 600,000 cpm)
Output Impedance: 50 Ω

Description

The Bently Nevada 330180-X1-05 MOD:145004-09 3300 XL Proximitor Sensor is a signal processing module designed for the Bently Nevada 3300 XL 8 mm Proximity Transducer System. The sensor receives input signals from a compatible 3300 XL proximity probe and extension cable, processes the eddy current measurement signal, and provides a proportional voltage output representing the distance between the probe tip and the rotating shaft surface. This output is used by monitoring systems for accurate measurement of shaft vibration and position changes in rotating machinery. The 330180-X1-05 MOD:145004-09 configuration is part of the 3300 XL Proximitor Sensor family and features a 5.0 meter total system length option with DIN rail mounting capability. The sensor is designed for integration into machinery protection and condition monitoring systems, providing stable signal conversion for applications requiring continuous monitoring of rotor displacement, radial vibration, axial position, and Keyphasor reference measurements. The 330180-X1-05 MOD:145004-09 is commonly installed with 3300 XL 8 mm proximity probes and extension cables on critical rotating equipment, including turbines, compressors, pumps, and other machinery using fluid-film bearings. It provides the measurement interface required for machinery condition monitoring, helping operators obtain accurate vibration and shaft position information for equipment protection systems.

Frequently asked questions

Q:What is the mounting option of 330180-X1-05?
A:The X1 option indicates the DIN rail mounting configuration for the 3300 XL Proximitor Sensor. This mounting method allows installation inside machinery monitoring cabinets and control panels

Q:What does MOD:145004-09 mean?
A:MOD:145004-09 identifies a specific modification configuration for the 3300 XL Proximitor Sensor. This modification provides calibration for a specific target material requirement, allowing the transducer system to maintain measurement performance when used with the specified shaft material.

Q:What measurements can be performed with the 330180-X1-05 MOD:145004-09?

A:When installed as part of a complete 3300 XL proximity system, the sensor can be used for radial vibration measurement, axial position measurement, Keyphasor reference applications, and other shaft displacement monitoring requirements.

Application areas

• Pumps and Rotating Equipment–Installed on rotating machinery where non-contact shaft measurement is required, including pumps and other machines using sleeve or fluid-film bearings.
• Oil and Gas Facilities–Used in machinery protection systems for critical rotating equipment such as compressors, turbines, and pumps where continuous vibration and position monitoring are required.
• Petrochemical and Process Plants–Applied in process machinery monitoring systems to provide reliable shaft displacement signals for equipment operation analysis and maintenance planning.
