Product Description:

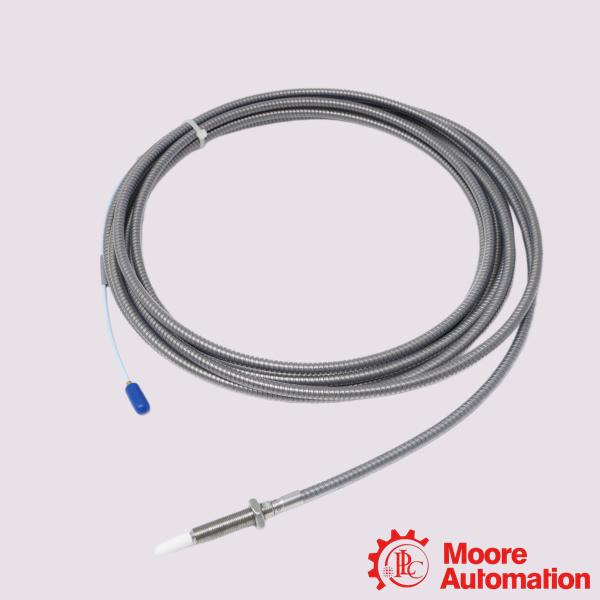

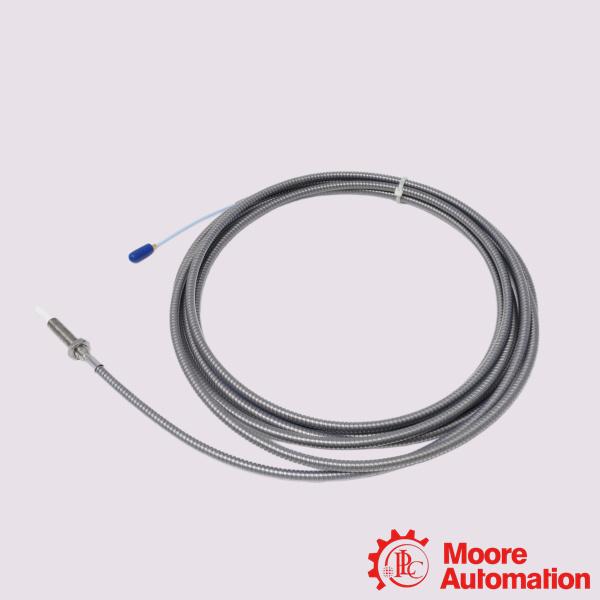

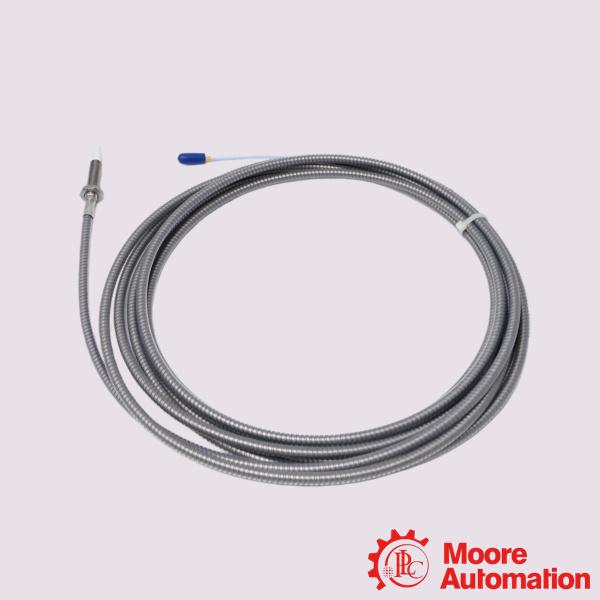

The Bently Nevada 330910-00-08-05-01-00 is a 3300 NSv Proximity Probe built for critical machinery vibration and position monitoring in constrained environments. The core target applications for this specific hardware model revolve around compact rotating machinery with tight physical installation clearances, where standard 5 mm or 8 mm probes cannot fit without risking side-wall interference.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat ttargets smaller than 15 mm (0.6 in).The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Frequently Asked Questions (FAQ)

Q:How do ClickLoc connectors work?

A:ClickLoc miniature coaxial connectors automatically lock securely into place during installation. This safety feature prevents field connections from loosening due to machine vibration. The integrated option -01 connector protector shields the assembly against fluids.
Q:Can I mix this probe with components from other Bently Nevada series?
A:No. To achieve calibrated, accurate results, you must connect the probe to a matching 3300 XL NSv Extension Cable and a 3300 XL NSv Proximitor Sensor. Upgrades from older 3000-series or 7000-series systems require completely replacing the probe, cable, and sensor assemblies.

Q:What is the output scale factor of this probe?
A:When used as part of a complete 3300 XL NSv Transducer System, it provides a stable incremental scale factor of 7.87 V/mm (200 mV/mil) across a 1.5 mm (60 mils) linear range.
