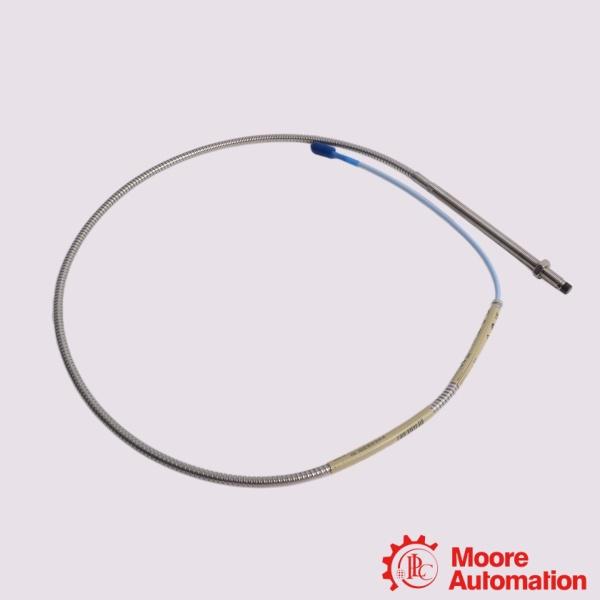

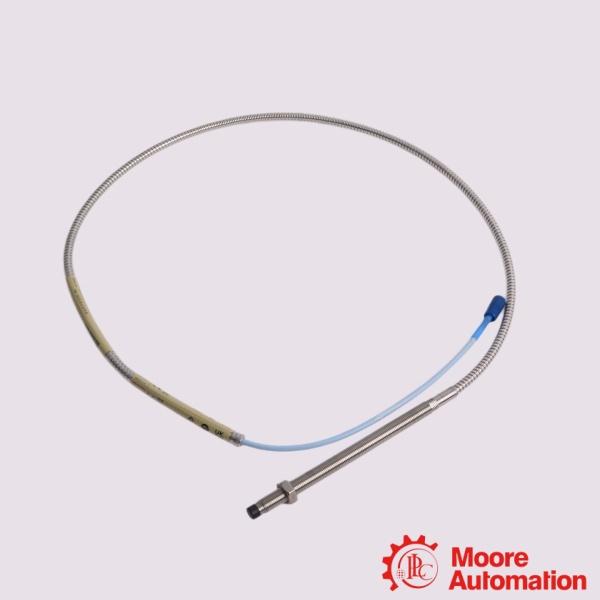

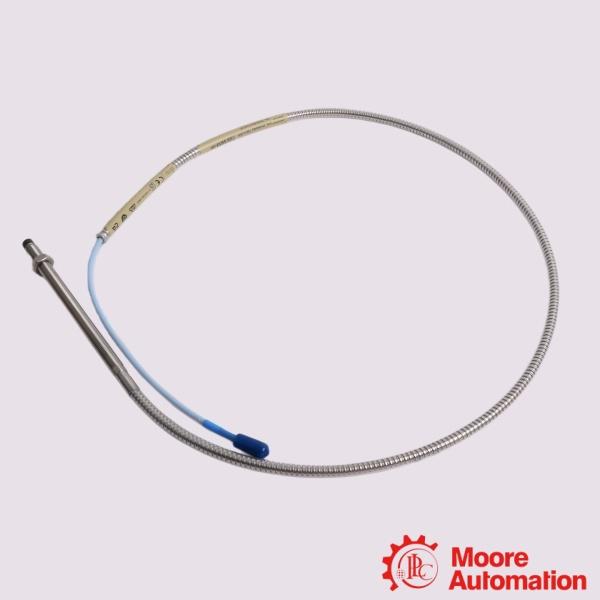

Bently Nevada 330102-00-52-10-01-05 3300 XL 8 mm proximity probe

Frequently asked questions
Q:Which transducer system is this extension cable designed for?
A:This extension cable is designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System and should be used only with compatible 3300 XL probes and Proximitor Sensors.

Q:What is the purpose of the extension cable?
A:The extension cable carries the measurement signal from the proximity probe to the Proximitor Sensor while preserving the electrical characteristics required for accurate shaft vibration and displacement measurement.

Q:What approvals are included with this configuration?
A:The 05 approval option includes CSA, ATEX, and IECEx certifications for applicable installations.

Description

The Bently Nevada 330102-00-52-10-01-05 is a 3300 XL 8 mm Extension Cable designed to connect a compatible 3300 XL 8 mm Proximity Probe to a 3300 XL Proximitor Sensor. The extension cable forms part of the complete 3300 XL 8 mm Proximity Transducer System and transfers the probe signal while maintaining the calibrated electrical characteristics required for accurate shaft vibration and displacement measurement. This configuration includes a 5.2 m cable length and is equipped with the ClickLoc™ connector protector, which helps secure the connection between the probe and the extension cable while reducing the possibility of connector loosening caused by machine vibration. The cable is manufactured for use with matched 3300 XL system components to maintain specified transducer performance. The extension cable is constructed for industrial machinery monitoring applications where reliable signal transmission is required between field-mounted proximity probes and Proximitor Sensors. When installed as part of a complete transducer system, it supports continuous monitoring of shaft vibration, shaft displacement, axial position, and rotational reference signals on critical rotating equipment.

Parameter

Model: 330102-00-52-10-01-05 3300 XL 8 mm proximity probe
Unthreaded Length Option: 00- 0.0 in
Overall Case Length Option: 52-5.2 in
Total Length Option: 10-1.0 meter (3.3 feet)
Connector and Cable-Type Option: 01-Miniature coaxial ClickLoc connector with connector protector, standard cable
Agency Approval Option: 05-CSA, ATEX, IECEx  Approvals

Application areas

• Generators–Provides the electrical connection required for shaft vibration and displacement monitoring in generator protection and condition monitoring systems.
• Oil and Gas Facilities–Applied on compressors, pumps, and turbine-driven equipment used in upstream, midstream, and downstream operations where continuous machinery monitoring is required.
• Petrochemical Plants–Supports rotating equipment monitoring systems used on process machinery operating under continuous production conditions.
