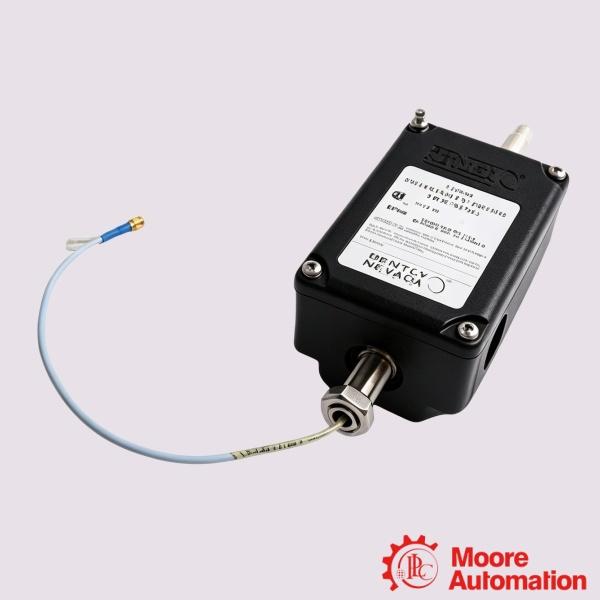

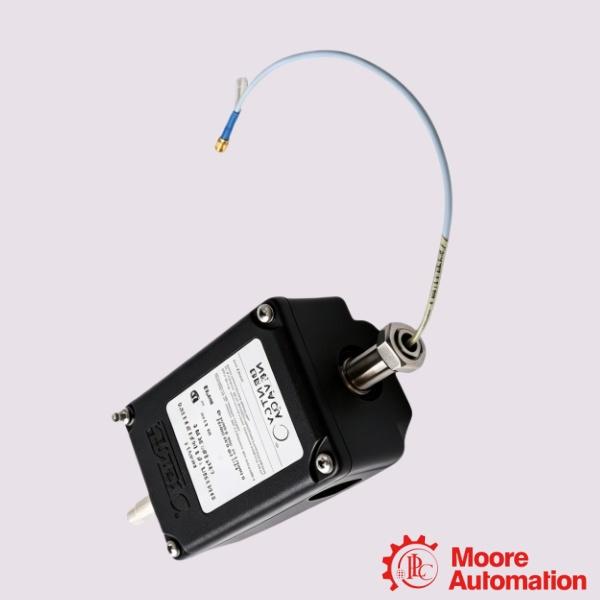

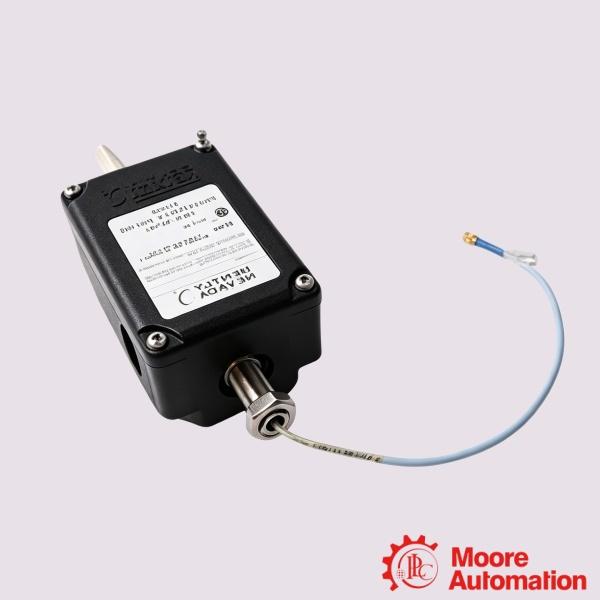

Bently Nevada 31000-28-05-40-040-02-02 Proximity Probe Housing Assembly

Description

The Bently Nevada 31000-28-05-40-040-02-02 provides an external mounting assembly for a 3300 XL 8 mm Proximity Probe used in rotating machinery monitoring systems. The housing assembly supports secure installation of the probe outside the machine casing while protecting the probe and cable from industrial operating conditions. It also allows probe adjustment and replacement without dismantling the machine. This configuration includes a 3300 XL 8 mm proximity probe with a 0.5 m integrated probe cable, a 40-inch probe sleeve, and a 4.0-inch probe penetration. The assembly is supplied with two conduit fittings to simplify cable routing and uses a 3/4-14 NPT mounting thread for installation on compatible machinery. The housing assembly provides mechanical support for the proximity probe while maintaining the correct sensing position relative to the rotating shaft. When used with a compatible 3300 XL Extension Cable and 3300 XL Proximitor Sensor, it forms part of a complete proximity transducer system for continuous measurement of shaft vibration, shaft displacement, axial position, and Keyphasor® signals.

Parameter

Model: 31000-28-05-40-040-02-02 Proximity Probe Housing Assembly
Probe with Connector: 28-3300 XL 8 mm probe, multiple approvals
Probe Cable Length: 05-0.5 m (20 in)
Standoff Adapter Length (Option C Dimension): 40-4.0 in
Probe Penetration Option (Option D Dimension): 040-4.0 in
Fittings: 02-Two 3/4-14 NPT fittings, one plug.
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option).

Frequently asked questions

Q:What is the probe penetration of this configuration?
A:The assembly provides a 4.0-inch probe penetration to position the sensing tip correctly relative to the rotating shaft.

Q:What measurements can be performed with this assembly?
A:When used with a compatible 3300 XL Proximitor Sensor and extension cable, the assembly supports shaft vibration measurement, shaft displacement monitoring, axial position measurement, and Keyphasor® reference applications.

Q:What components complete the monitoring system?
A:A complete installation typically includes the 31000 housing assembly, the 3300 XL 8 mm Proximity Probe, a compatible extension cable, a 3300 XL Proximitor Sensor, and the associated Bently Nevada monitoring system.

Application areas

• Oil and Gas Facilities–Applied on rotating equipment including compressors, pumps, and turbine-driven machinery where continuous shaft monitoring is required for normal plant operation.
• Petrochemical Plants–Supports machinery monitoring systems installed on critical process equipment operating under continuous production conditions.
• Power Generation Plants–Used on turbine-generator units and auxiliary rotating equipment where external probe installation simplifies inspection and maintenance activities.
