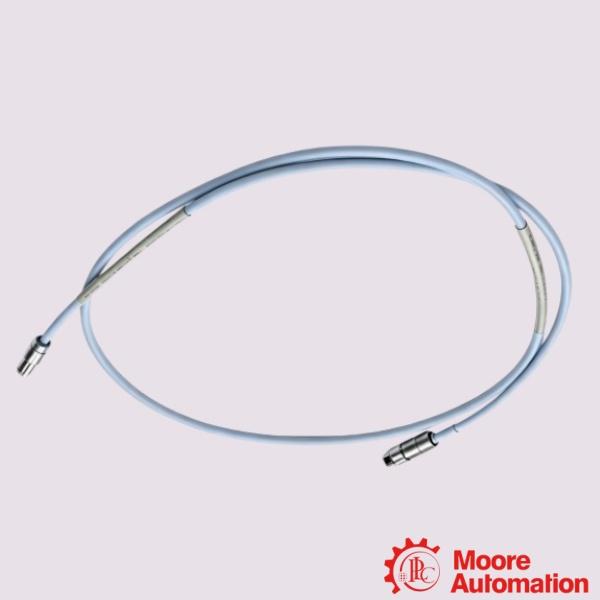

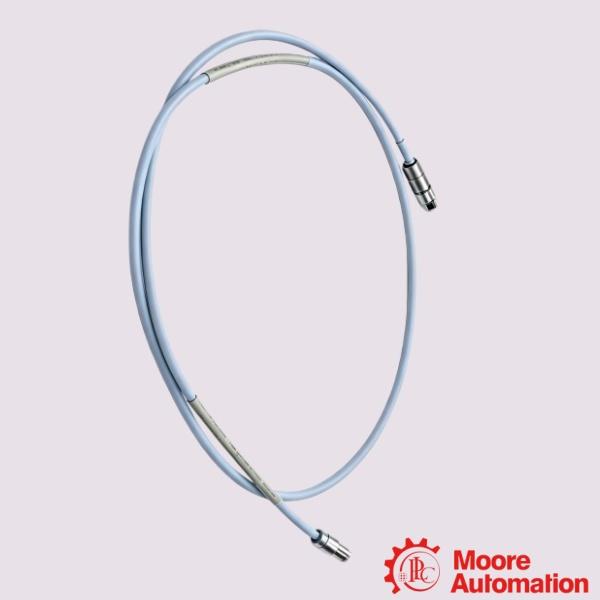

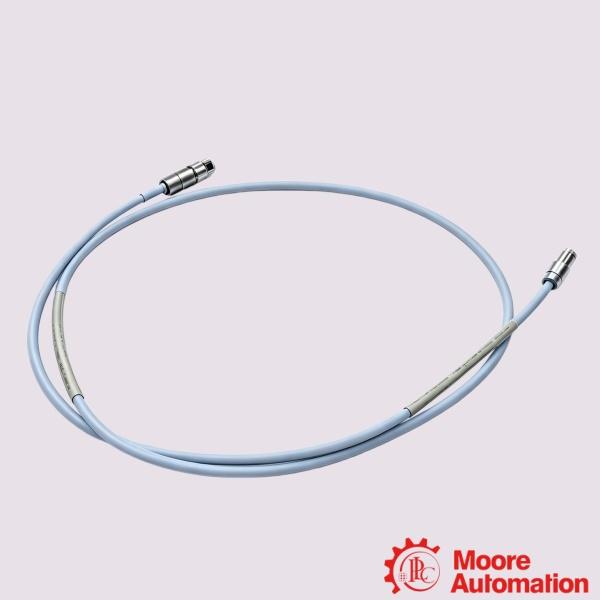

Bently Nevada 330102-00-31-05-02-00 3300 XL 8 mm proximity probe

Parameter
MModel: 330102-00-31-05-02-00 3300 XL 8 mm proximity probe
Unthreaded Length Option: 00-0.0 in
Overall Case Length Option: 31-3.1 in
Total Length Option: 05-0.5 meter (1.6 feet)
Connector and Cable-Type Option: 02-Miniature coaxial ClickLoc
connector, standard cable
Agency Approval Option: 00-Not required

Description

The Bently Nevada 330102-00-31-05-02-00 is a 3300 XL 8 mm Proximity Probe used for non-contact measurement of shaft vibration and position in rotating machinery monitoring applications. It is part of the 3300 XL proximity transducer system, which is widely applied in machinery protection and condition monitoring systems. This probe uses eddy current sensing technology to measure the distance between the probe tip and the observed machine target without physical contact. The design incorporates Bently Nevada’s TipLoc molding method, which provides a strong bond between the probe tip and probe body, while the CableLoc design improves the connection strength between the probe cable and probe tip. The 330102-00-31-05-02-00 configuration features a 3/8-24 UNF threaded probe with armor, an unthreaded length option of 00, an overall case length option of 31, a 0.5 meter (1.6 ft) total length, and a miniature coaxial ClickLoc connector with standard cable. The probe is supplied without agency approval requirements. The probe is designed for use with compatible Bently Nevada Proximitor Sensors and monitoring systems to provide accurate vibration and position information for critical rotating equipment.

Frequently asked questions

Q:What type of applications are suitable for this probe?
A:The probe is commonly used for vibration and position measurements on rotating machines, including fluid-film bearing equipment and other critical machinery requiring continuous condition monitoring.

Q:What measurement technology does this probe use?
A:The probe uses eddy current sensing technology to measure the distance between the probe tip and the conductive target surface without direct contact.

Q:How does TipLoc technology benefit Bently Nevada 330102-00-31-05-02-00?

A:TipLoc molding improves bonding strength between the probe tip and body for more robust mechanical performance.

Application areas

• Power Generation: Installed within steam turbines, heavy-duty gas turbines, and massive utility generators to monitor high-speed rotor conditions.
• Oil & Gas Processing: Deployed across continuous upstream production systems, midstream booster stations, and downstream refining networks.
• Petrochemical & Chemical Refining: Integrated into high-capacity asset structures such as process machinery lines and critical chemical reactor drives.
• General Heavy Manufacturing: Used on automated plant rotating machinery layouts that operate continuously under demanding industrial loads.
