in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
111.5x1.6x1.6cmWeight:
0.06kgCountry of Origin: :
USADescription:

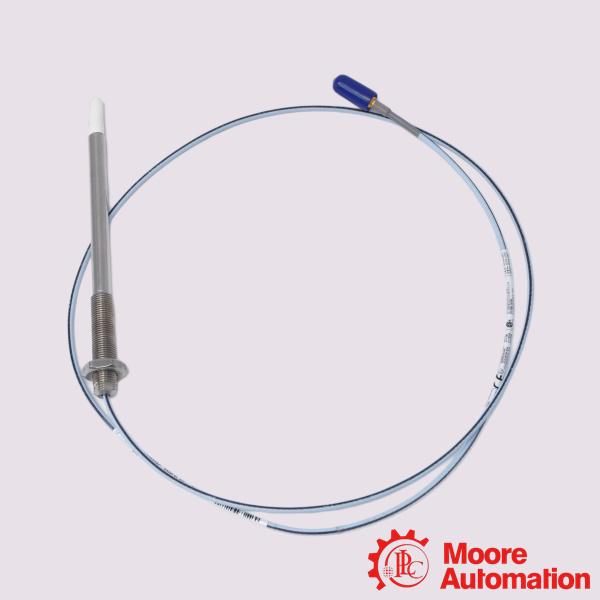

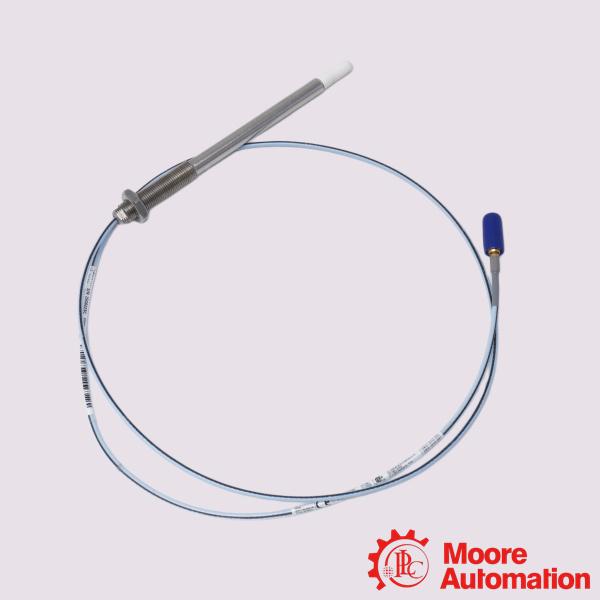

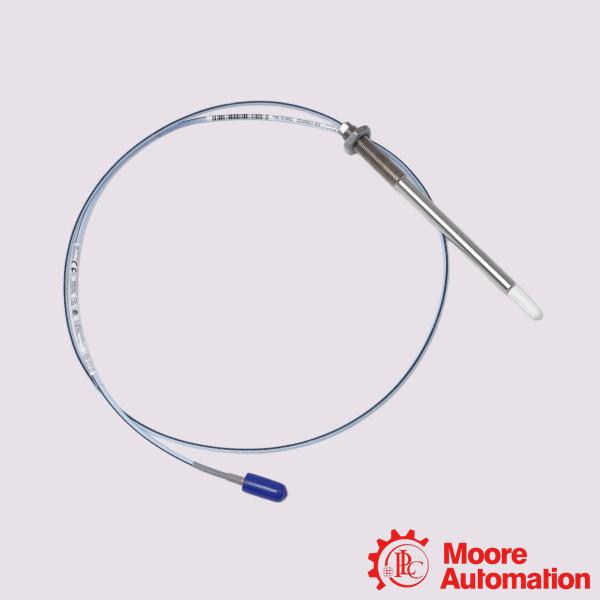

Bently Nevada 330905-00-19-05-01-CN 3300 NSv Proximity Probes
| Mfr. Part Number: |
330905-00-19-05-01-CN |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330905-00-19-05-01-CN is a metric-threaded 3300 XL NSv Proximity Probe for continuous machinery condition monitoring. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Extensively used to monitor shaft vibration and axial thrust position in compact compressor designs.
Refrigeration Compressors: Ideal for small-bore or tightly packaged refrigeration units where sensor clearance is minimal.
Process Gas Compressors: Deployed in oil, gas, and chemical plants to track rotor dynamics on critical machinery.
Small Steam Turbines: Tracks radial displacement and thermal growth inside restrictive bearing housings.
Frequently Asked Questions (FAQ)
Q:What is the significance of the ClickLoc connector option (-01)?
A:The -01 suffix denotes a fluid-resistant coaxial ClickLoc connector. It features a robust mechanical lock that prevents the probe and extension cable from accidentally disconnecting due to machine vibration, while keeping out oils and industrial fluids.
Q:Can I connect this 0.5-meter probe directly to a Proximitor sensor?
A:No, you must match the total system length requirement of your specific Proximitor sensor. Proximitor sensors are typically calibrated for a total electrical length of either 5.0 meters or 7.0 meters.
Q:What principle does this probe use to measure vibration?
A:It operates on the eddy current principle. A companion Proximitor sensor drives a low-power radio frequency (RF) signal to the coil inside the probe tip, generating an electromagnetic field. When a conductive target (like a machine shaft) moves relative to the tip, it modifies the field, allowing the system to determine precise displacement.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330905-00-19-05-01-CN |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
190 mm |
|
Total Length Option |
0.5 meter (20 in) |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
