Bently Nevada 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly

Description

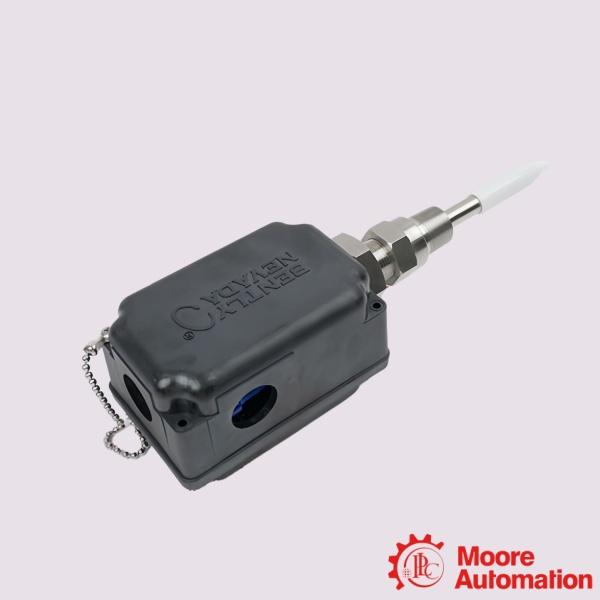

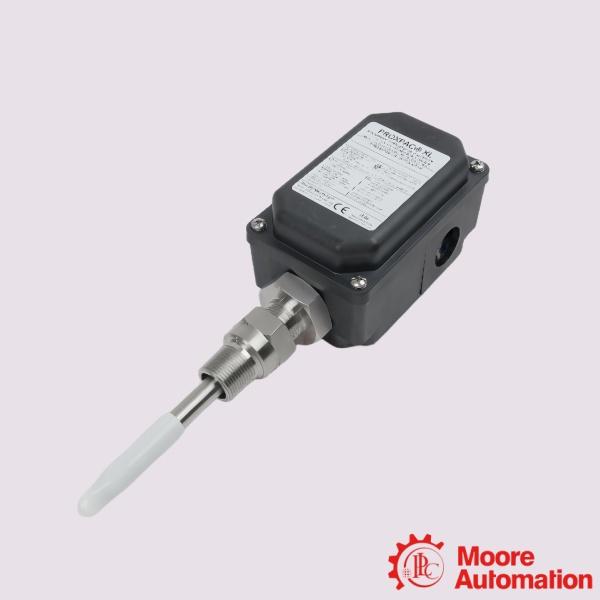

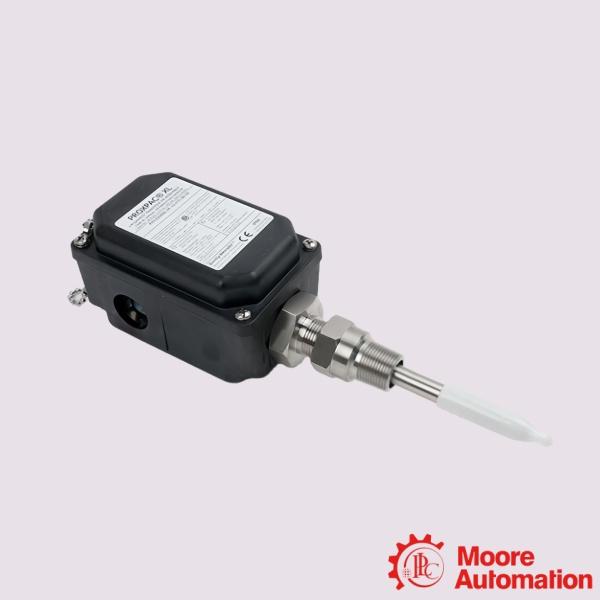

The Bently Nevada 31000-26-05-20-041-01-02 provides an external mounting solution for a 3300 XL NSv Proximity Probe within the 31000 Proximity Probe Housing Assembly. The housing supports installation of the proximity probe through the machine casing while protecting the probe and extension cable from industrial operating environments. It also allows probe gap adjustment and probe replacement without disassembling the machine. The housing assembly includes a 3300 XL NSv proximity probe with a 0.5 m probe cable, a 20-inch probe sleeve, and a 4.1-inch probe penetration configuration. It is supplied with one conduit fitting and two threaded plugs, while the 3/4-14 NPT mounting thread provides compatibility with standard industrial mounting arrangements. Constructed with a glass-reinforced polyphenylene sulfide (PPS) housing and corrosion-resistant stainless steel components, the assembly is intended to provide mechanical support and environmental protection for externally mounted proximity probes. When installed with a compatible Bently Nevada proximity transducer system, it supports continuous monitoring of shaft vibration, shaft displacement, and Keyphasor® reference measurements on rotating machinery.

Parameter

Model: 31000-26-05-20-041-01-02 Proximity Probe Housing Assembly
Probe with Connector: 26-3300 XL NSv probe
Probe Cable Length: 05-0.5 m (20 in)
Standoff Adapter Length (Option C Dimension): 20-2.0 in
Probe Penetration Option (Option D Dimension): 041-4.1 in
Fittings: 01-One 3/4-14 NPT fitting, two plugs.
Mounting Thread Option: 02-3/4-14 NPT (Required if ordering Standoff Adapter Option).

Frequently asked questions

Q:Does the housing assembly protect the probe from the surrounding environment?
A:Yes. The housing provides mechanical support and environmental protection for the proximity probe and its cable while maintaining proper installation alignment.

Q:What components are required to complete the measurement system?
A:A complete installation includes the 31000 housing assembly, the supplied 3300 XL NSv proximity probe, a compatible Proximitor Sensor, and the associated monitoring system.

Q:Why is the correct housing configuration important?
A:Selecting the specified housing configuration helps ensure the required probe position, installation dimensions, and compatibility with the associated proximity transducer system for accurate machinery monitoring.

Application areas

• Gas Turbines–Supports proximity probe installation for continuous measurement of shaft displacement and vibration in gas turbine monitoring systems.
• Centrifugal Compressors–Used to mount proximity probes on compressor bearing housings where external access is preferred for inspection and maintenance.
• Power Generation Plants–Used on turbine-generator units and auxiliary rotating equipment where external probe mounting simplifies maintenance while maintaining continuous monitoring.
