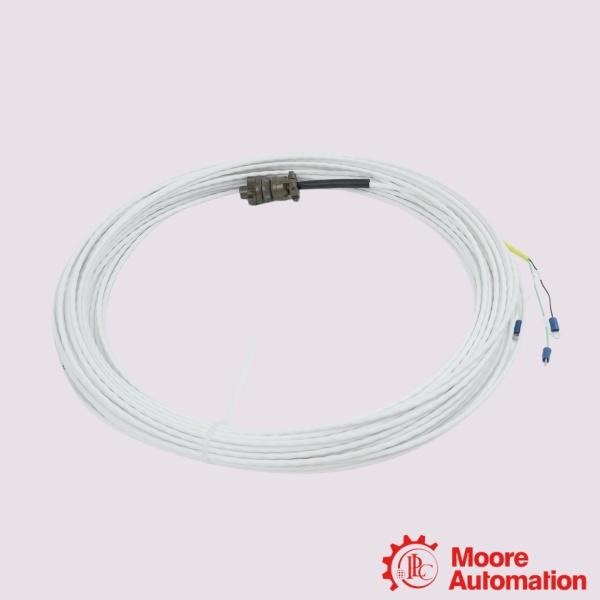

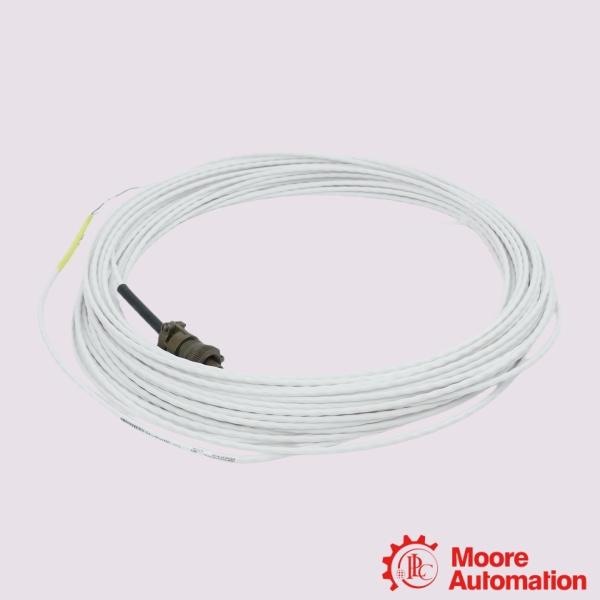

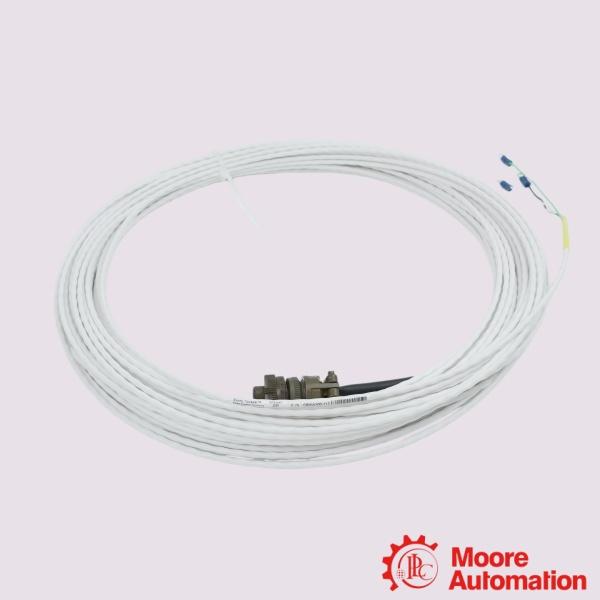

Bently Nevada CB2W100-032 32-foot interconnect cable

Frequently asked questions
Q:Where is the CB2W100-032 commonly installed?
A:The cable is commonly installed on rotating machinery monitoring systems used with turbines, compressors, pumps, motors, and other industrial equipment where compatible Bently Nevada components are connected together.

Q:Is installation hardware included?
A:Yes. The cable is supplied with a locking ring, adapter seal, and O-ring to help achieve the intended mechanical connection and environmental sealing.

Q:Is the CB2W100-032 compatible with all Bently Nevada products?
A:No. Compatibility should be verified using the equipment model, connector type, cable length, and system configuration specified for the installation.

Description

The Bently Nevada CB2W100-032 provides non-contact measurement of shaft vibration, displacement, and position as part of the 3300 XL NSv Proximity Transducer System. Using eddy current sensing technology, the probe detects the distance between its sensing tip and the conductive shaft surface, supplying measurement signals for continuous machinery condition monitoring. The probe is designed for applications where standard 8 mm proximity probes cannot be installed because of limited mounting space or restricted access. Its compact construction allows installation in smaller bearing housings, narrow machine casings, and other confined locations while maintaining compatibility with the 3300 XL NSv transducer system. When connected to a compatible 3300 XL NSv Extension Cable and 3300 XL NSv Proximitor Sensor, the probe forms a complete measurement system for monitoring shaft vibration, radial displacement, axial position, and shaft movement.

Parameter

Model: CB2W100-032 32-foot interconnect cable
Cable Length: 32 ft. (9.8 m)
Conductor Specification: 20 AWG, twisted pair, shielded
Connector Type (Sensor End): 2-socket, MIL-C-5015, stainless steel
Operating Temperature Range: -50 °C to +200 °C (-58 °F to +392 °F)
Product Type: Cable for 2-wire transducer

Application areas

• Electric Motors–Provides signal and power connections for vibration monitoring devices installed on large industrial motors operating in continuous-duty applications.
• Generators–Used in generator monitoring systems to connect compatible Bently Nevada sensors and monitoring instruments.
• Oil and Gas Facilities–Applied in machinery monitoring systems installed on compressors, pumps, and turbine-driven equipment used throughout production, processing, and transportation facilities.
• Power Generation Plants–Supports monitoring systems used on critical rotating equipment in thermal, hydroelectric, and combined-cycle power stations.
