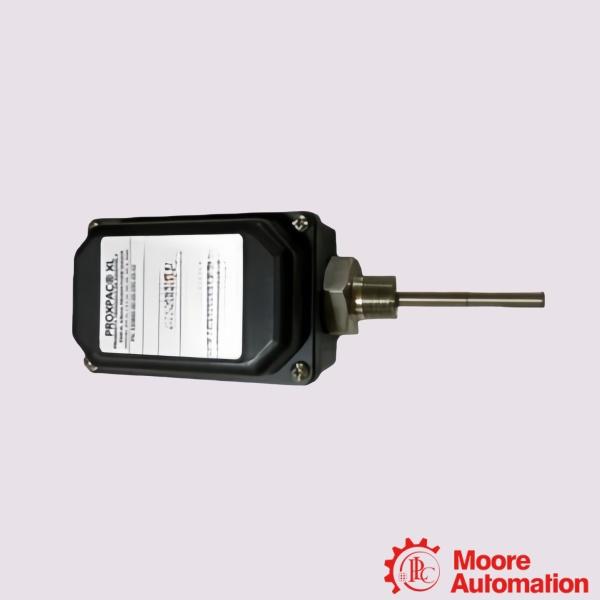

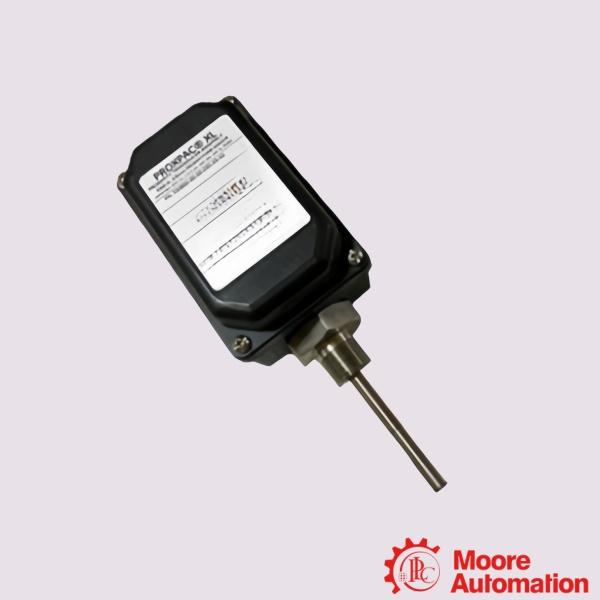

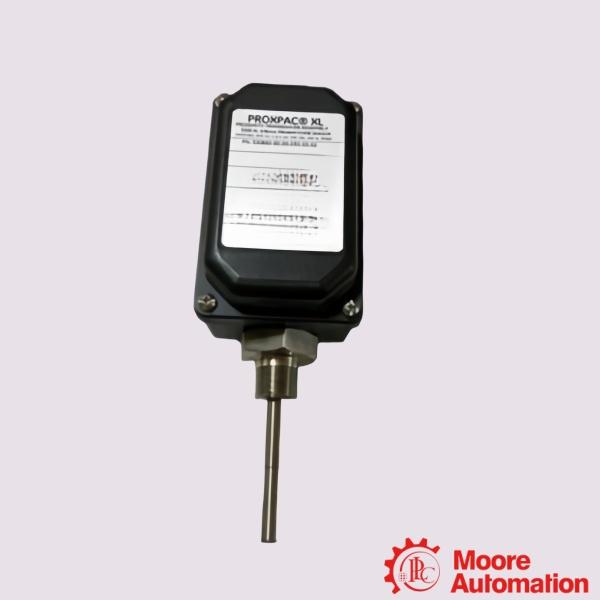

Bently Nevada 26530-12-10-03-018-085-24-03-00 Dual Probe Transducer System

Frequently asked questions
Q:How is the vibration signal used?
A:The measured signal can be sent to compatible monitoring or protection systems for vibration trending and machine condition evaluation.

Q:Where should the transducer be mounted?
A:It should be installed at the specified measuring location on the machine where vibration can be transferred effectively to the sensing element.

Q:What is the adapter thread type on this assembly?
A:The 26530-12-10-03-018-085-24-03-00 uses a 3/4-14 NPT adapter thread (option C=03). The adjustment range from nominal setting is 22.4mm toward target and 22.6mm away from target.

Description

The Bently Nevada 26530-12-10-03-018-085-24-03-00 is intended for continuous vibration measurement on rotating machinery used in industrial service. It supplies vibration data during equipment operation so that changes in machine condition can be observed as they develop. The transducer is mounted at the required measuring point and produces an electrical signal from the vibration detected at the machine. The signal can be used by compatible monitoring or protection equipment to follow vibration trends over time. Continuous measurement makes it easier to recognize abnormal vibration levels and supports routine maintenance before operating conditions become more severe. Its construction is suitable for long-term industrial operation where dependable vibration information is needed to support equipment reliability and maintenance planning.

Parameter

Model: 26530-12-10-03-018-085-24-03-00 Dual Probe Transducer System
Proximity Probe Option: 12-3300 XL 8 mm Probe
Probe Lead Length Option: 10-1.0 metre
Adapter Thread Option: 03-3/4-14 NPT
Adapter Length Option: 018-1.8 in
Probe Penetration Option: 085-8.5 in
Velocity Transducer Option: 24-Velomitor Sensor
Fittings Option: 03-One ¾-14 NPT plug, one ¾- 14 NPT to ½-14 NPT reducer, and one cable seal grip with grommet
Probe Support/Oil Seal Option: 00-Not required

Application areas

• Oil & Gas: Installed in upstream offshore production platforms, midstream pipeline booster stations, and downstream LNG receiving terminals.
• Power Generation: Deployed in heavy-duty gas turbine plants, large-scale steam turbine facilities, nuclear plant conventional islands, and pumped-storage stations.
• Large Turbo-machinery: Main utility generators, large-scale industrial steam turbines, and heavy-duty gas turbines
