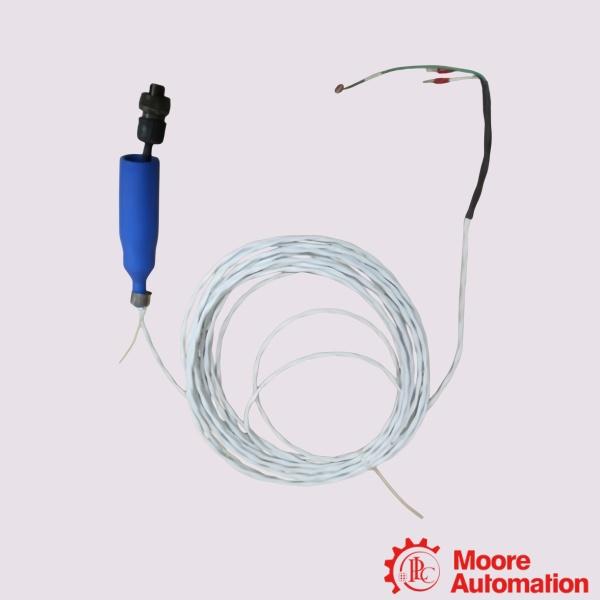

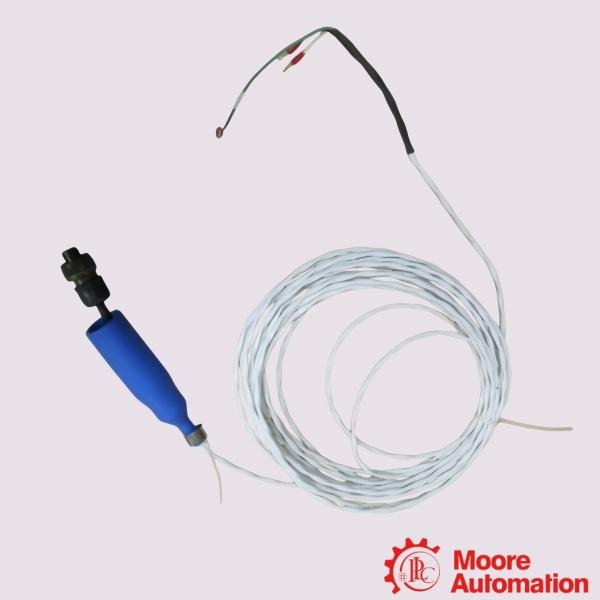

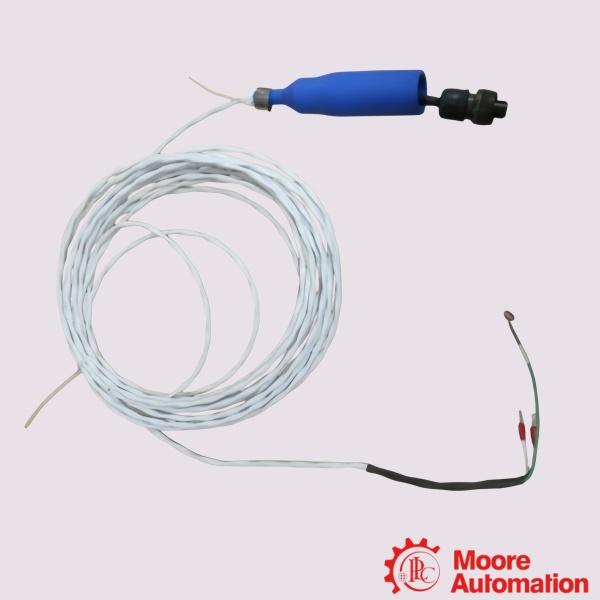

Bently Nevada 125065-12 2-conductor 18 AWG shielded cable

Frequently asked questions
Q:What measurement technology does this sensor use?
A:It uses piezoelectric sensing technology with integrated solid-state electronics to produce a direct velocity output.

Q:Where should the 125065-12 be installed?
A:The sensor is typically mounted on bearing housings or machine casings where vibration is transmitted from the rotating machine.

Q:Does the sensor require a specific mounting orientation?
A:No. Its solid-state construction allows installation in various mounting orientations without the limitations of moving-coil velocity sensors.

Description

The Bently Nevada 125065-12 is supplied as part of the 330500 Velomitor Piezo-Velocity Sensor family for continuous vibration monitoring on rotating equipment. It uses piezoelectric sensing technology together with integrated electronics to generate a direct velocity signal. Since the design contains no moving coil, the sensor avoids mechanical wear and maintains consistent performance regardless of mounting direction. The sensor is installed on bearing housings or machine casings to monitor casing vibration. The measured velocity signal can be used to identify changes associated with imbalance, shaft misalignment, mechanical looseness, and other vibration-related conditions. It is suitable for machinery protection systems as well as condition monitoring applications where reliable vibration information is required.

Parameter

Model: 125065-12 2-conductor 18 AWG shielded cable
Frequency Response: 4.5 Hz to 5 kHz (±3 dB)
Standard Sensitivity: 3.94 mV/mm/s (100 mV/in/s) ±5%
Min. length: 2.0 ft (0.6 m)
Max. length: 99 ft (30 m)
Max Extension Cable Length: Up to 305 m (1,000 ft)

Application areas

• Power generation: Deployed on rotating machinery within utility and industrial power plants.
• Oil and gas: Used for upstream, midstream, and downstream equipment protection.
• Petrochemical processing: Applied across chemical production and refining facilities.
• Rotating machinery applications: Installed broadly on various types of industrial rotating equipment.
• Machinery protection systems: Integrated directly into critical assets safety systems.
