in stock#
Brand/ Manufacturer:
Bently NevadaDimensions:
29x29x3cmWeight:
0.65kgCountry of Origin: :
USADescription:

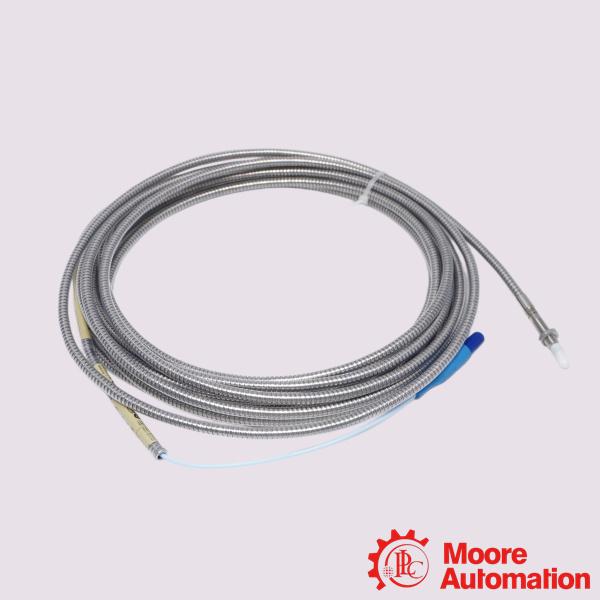

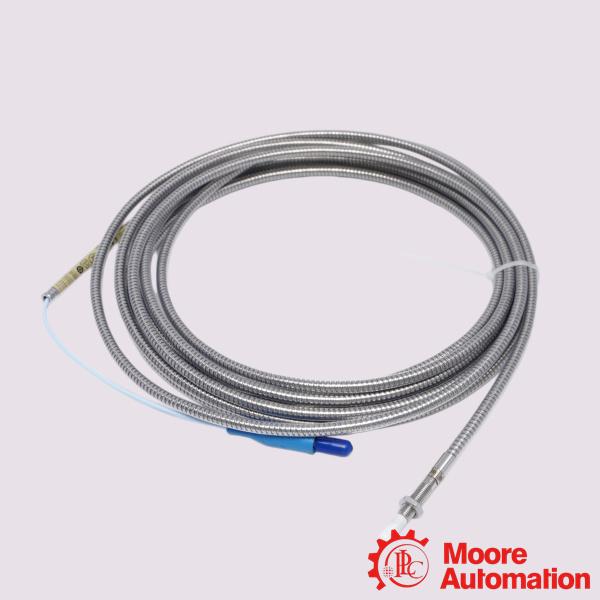

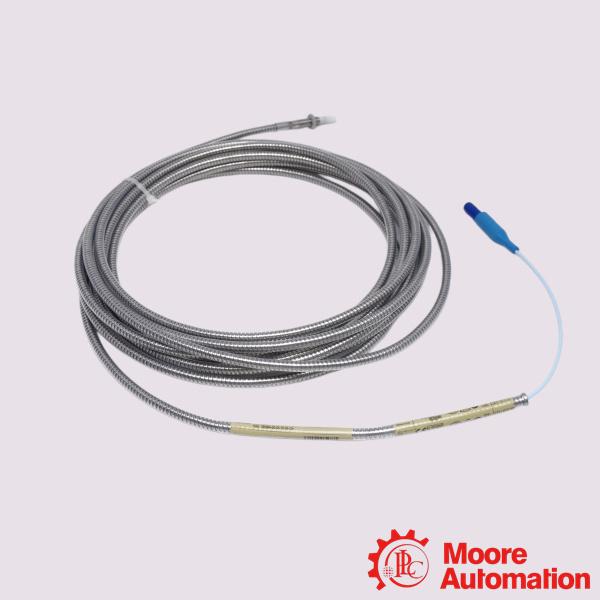

Bently Nevada 330904-00-25-10-01-00 3300 NSv Proximity Probes
| Mfr. Part Number: |
330904-00-25-10-01-00 |
| Manufacturer: |
Bently Nevada |
| Description: |
|
| Full Description: |
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. |
| Status: |
In stock |
Click to get price :
: plcinfo@mooreplc.com
: +86 18020776786
: mooreplc
Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
Product Description:
The Bently Nevada 330904-00-25-10-01-00 is a 3300 XL NSv Proximity Probe featuring an M8 x 1 metric thread and integral stainless steel armor. It is for tight installation environments—such as centrifugal air compressors and refrigeration compressors—where small target sizes or tight clearances limit standard 5mm or 8mm sensors.The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in).
Application:
Centrifugal Air Compressors: Monitored extensively in industrial plants for manufacturing, plant air utilities, and process gas optimization.
Refrigeration Compressors: Deployed within heavy-duty cooling loops and industrial HVAC chillers.
Process Gas Compressors: Leveraged across chemical facilities and oil refineries to protect critical, compact turbomachinery.
Small Fluid-Filmed Bearing Machinery: Tailored for precision machinery utilizing fluid bearings on micro-shaft designs.
Frequently Asked Questions (FAQ)
Q:Can this system integrate with condition monitoring software?
A:Yes. The complete sensor array is fully recognized by Bently Nevada System 1 software. Ensure your database configuration tags are set explicitly to the "NSv" transducer type for accurate trend calculations.
Q:Is this probe compatible with standard 3300 XL 8mm extension cables?
A:No. The NSv line utilizes unique tip geometries and electronics. You must connect this probe to a dedicated 3300 NSv extension cable and a matching 3300 XL NSv Proximitor Sensor.
Q:What is the typical gap voltage setting during commissioning?
A:The nominal installation gap is 1.0 mm (40 mils). This configuration yields a target gap voltage of approximately -10.4 VDC when measured at the monitor input terminals.
If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com
You will get Best price and Professional service (24/7)
|
Detailed Parameter |
Part Number：330904-00-25-10-01-00 |
|
Unthreaded Length Option |
0 mm |
|
Overall Case Length Option |
250 mm |
|
Total Length Option |
1.0 meter (39 in) |
|
Agency Approval Option |
Not required |
|
Output resistance |
50 Ω |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Operating Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
