990-08-XX-02-05 | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.3x6.1x9.8cm
Weight:
0.46kg
Country of Origin: :
USA
Description:

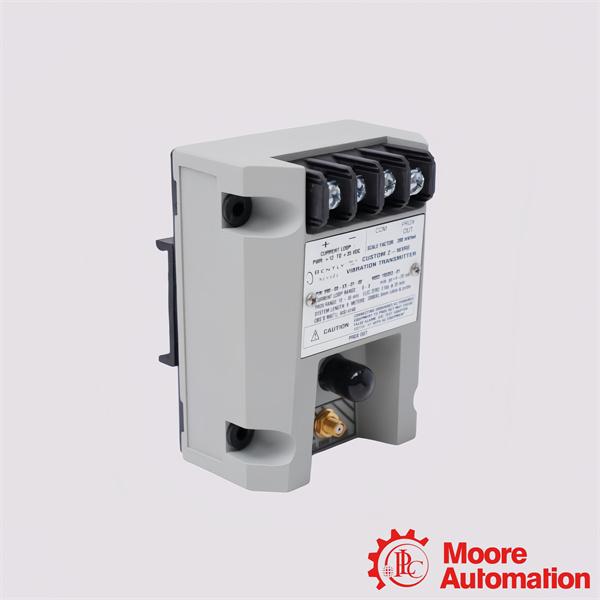

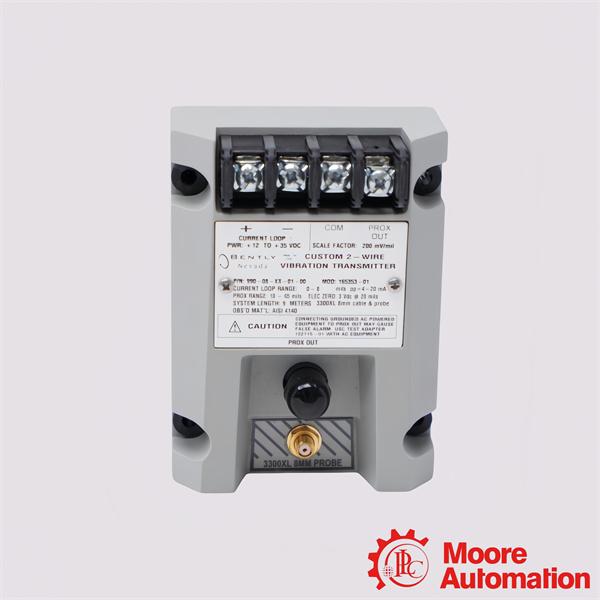

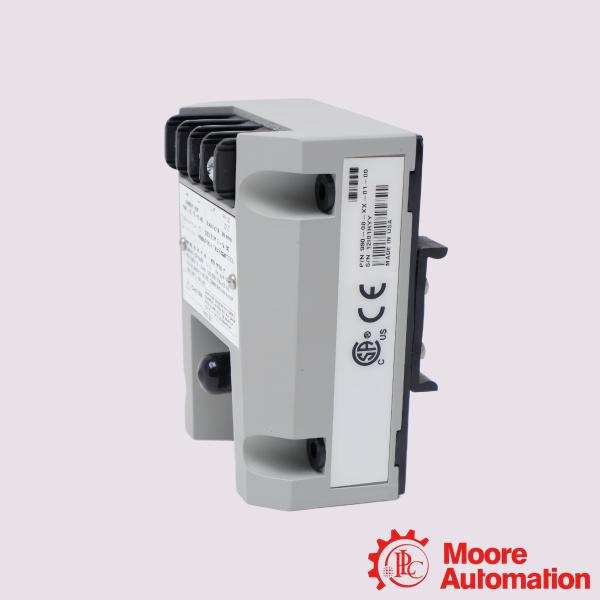

Bently Nevada 990-08-XX-02-05 Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-08-XX-02-05

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-08-XX-02-05 Vibration Transmitter

Full Description:	The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-08-XX-02-05 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Centrifugal Air Compressors:Monitoring fluid-film bearings for radial vibration and shaft stability.
Small Pumps & Process Pumps:Continuous condition monitoring of high-speed water feed pumps, hydrocarbon pumps, and chemical process pumps.
Industrial Fans and Blowers:Monitoring unbalance, misalignment, and structural looseness on primary air fans, induced-draft (ID) fans, and forced-draft (FD) fans.
Electric Motors & Small Steam Turbines: Bearing housing and rotor dynamic verification.

Frequently Asked Questions (FAQ)

Q:Which proximity probes are compatible with this transmitter?
A:It is engineered to accept input from one non-contacting 3300 NSv proximity probe and its corresponding extension cable. This combination allows installation in confined spaces with minimal clearance.
Q:What is the required gap distance between the probe and target?
A:The probe must be physically gapped between 0.5 mm and 1.75 mm (20 to 55 mils) from the target surface to maintain linear full-scale performance.

Q:Does the transmitter feature a startup delay?
A:Yes, it includes a Power-up Inhibit Circuit. After receiving power, the loop output stays under 3.6 mA for 2 to 3 seconds. This suppresses signal errors caused by initial line voltage transients.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：990-08-XX-02-05
Full-scale Option	0-8 mils pp (0-200 μm pp)
Mounting Option	Bulkhead screws
Maximum loop resistance	1,000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Frequency response	5 Hz to 6,000 Hz +0, 3 dB
Operating temperature	-35°C to +85°C(-31°F to +185°F)
Storage temperature	-52°C to +100°C(-62°F to +212°F)
Transducer tip material	Polyphenylene sulfide (PPS)
Transducer case material	AISI 303 or 304 Stainless Steel (SST)
