990-05-XX-03-00 | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
9.8x7.3x5.8cm
Weight:
0.46kg
Country of Origin: :
USA
Description:

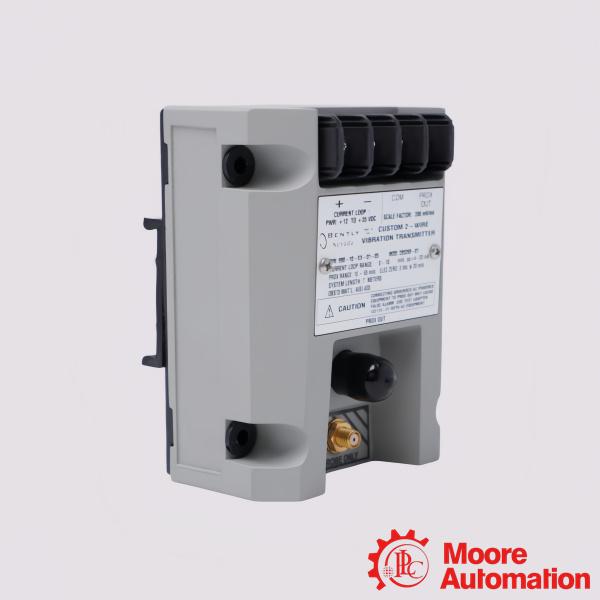

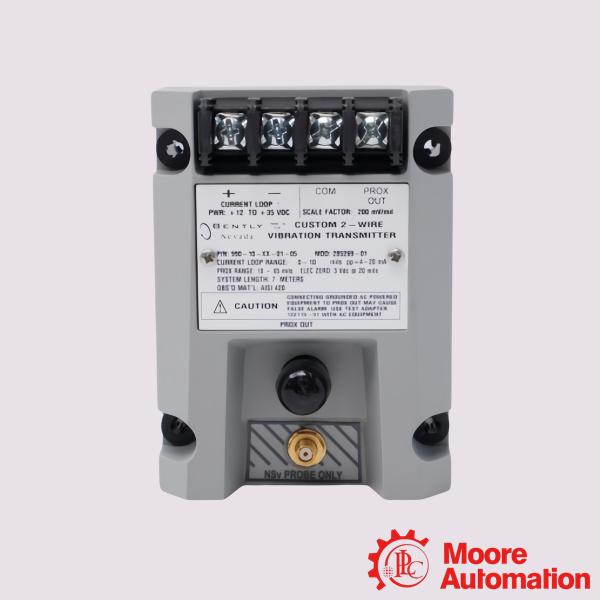

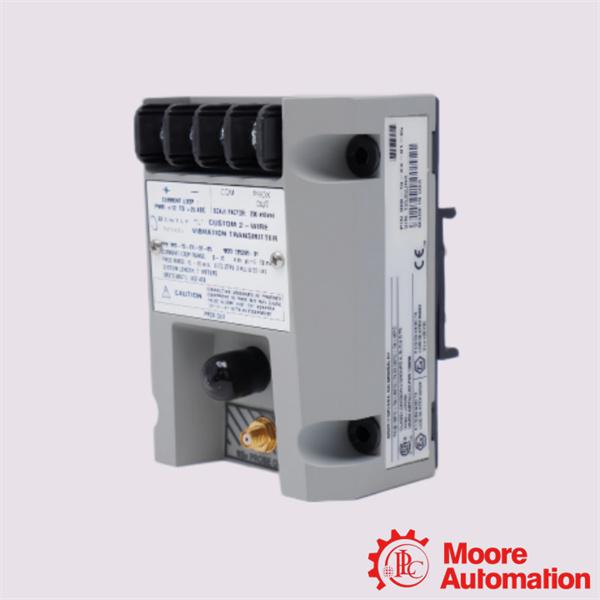

Bently Nevada 990-05-XX-03-00 Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-05-XX-03-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-05-XX-03-00 Vibration Transmitter

Full Description:	The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-05-XX-03-00 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system.The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Centrifugal Air Compressors: The transmitter works with the narrow-profile 3300 NSv proximity probe, making it ideal for tight spaces with minimal installation clearance typical of these compressors.
Industrial Electric Motors: Continuous vibration loop monitoring helps detect early shaft misalignment, unbalance, or structural looseness.
Small Industrial Pumps: Radial fluid forces and cavitation-induced shaft movement are translated directly into process control signals.
Ventilation and Cooling Fans: Monitors unbalanced rotor blades or structural breakdown before catastrophic failure occurs.

Frequently Asked Questions (FAQ)

Q:What sensor probe is compatible with this transmitter?
A:It is engineered to work specifically with a non-contacting 3300 NSv Proximity Probe and its matching extension cable. This setup allows transducer installation in small areas with minimal clearance
Q:How do you verify or test the loop signal?
A:The unit features an onboard Test Input pin. You can inject a signal using a function generator into this pin to quickly verify the 4–20 mA loop output without needing to mechanically vibrate the probe.

Q:Does it offer raw data for deeper diagnostic analysis?
A:Yes. The transmitter includes non-isolated "PROX OUT" and "COM" terminals alongside a coaxial connector. This supplies a dynamic vibration and gap voltage signal that diagnostic instruments or oscilloscopes can read.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：990-05-XX-03-00
Full-scale Option	0-5 mils pp (0-125 μm pp)
Mounting Option	DIN clips and screws
Agency Approval Option	Not required
Maximum loop resistance	1,000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Frequency response	5 Hz to 6,000 Hz +0, 3 dB
Operating temperature	-35°C to +85°C(-31°F to +185°F)
Storage temperature	-52°C to +100°C(-62°F to +212°F)
Transducer tip material	Polyphenylene sulfide (PPS)
Transducer case material	AISI 303 or 304 Stainless Steel (SST)
