330930-040-05-00 | Bently Nevada 3300 NSv Extension Cable

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
30.5x31.5x5cm
Weight:
0.46kg
Country of Origin: :
USA
Description:

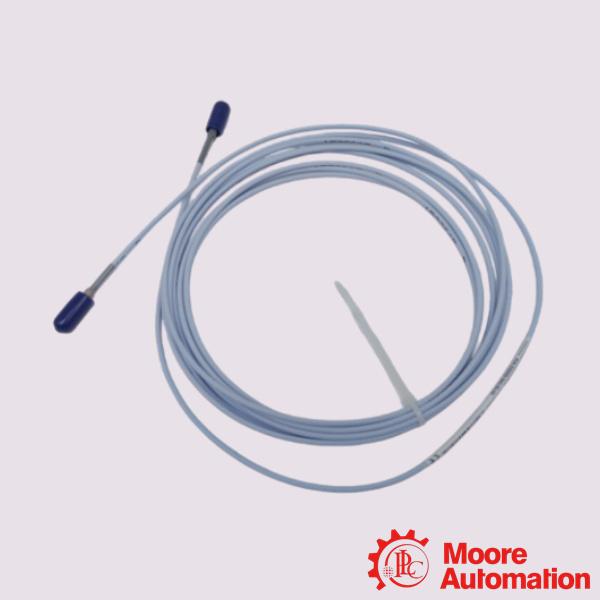

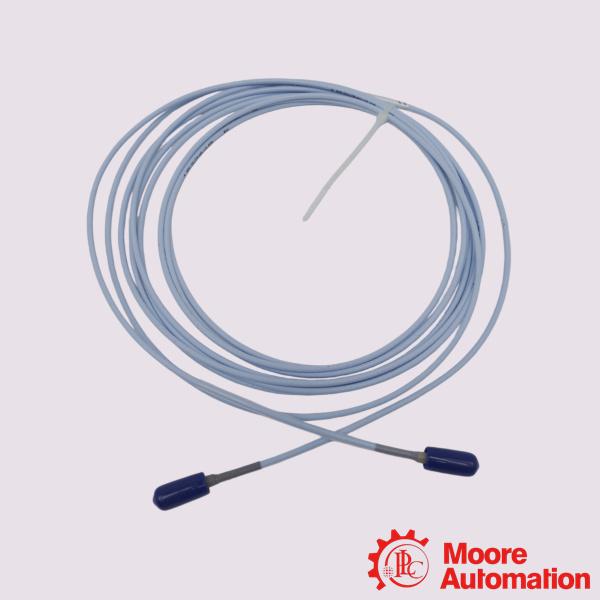

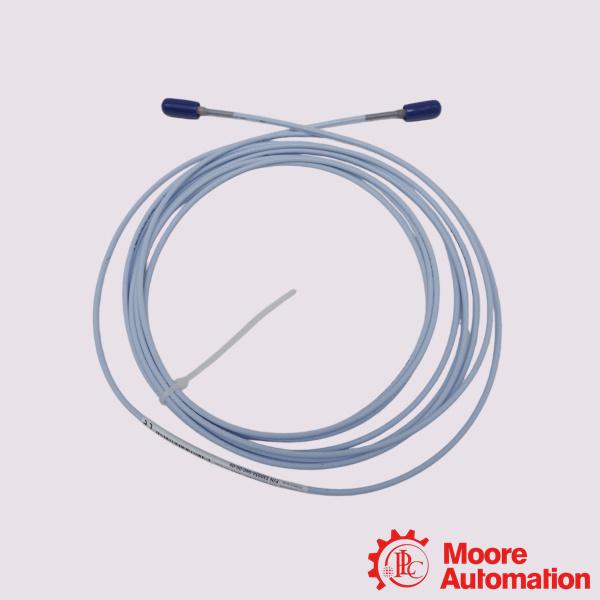

Bently Nevada 330930-040-05-00 3300 NSv Extension Cable

Inquiry now

Mfr. Part Number:	330930-040-05-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 330930-040-05-00 3300 NSv Extension Cable

Full Description:	The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 3300 NSv probe and 30930-040-05-00 3300 NSv Extension Cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.

Application:

Centrifugal Air Compressors: These sensors are designed for machines with tight installation requirements, providing reliable monitoring in compact internal spaces
Refrigeration Compressors: Ideal for vibration and position measurements on specialized refrigeration units where space for sensor mounting is limited
Process Gas Compressors: Used for monitoring small process gas units in petro-chemical and other industrial settings
Small Shaft Machinery: The NSv probe is specifically suited for fluid-filmed bearing machines with shafts smaller than 51 mm (2 inches).

Frequently Asked Questions (FAQ)

Q:What is the primary purpose of this cable?
A:It connects a 3300 NSv proximity probe to a 3300 XL NSv Proximitor Sensor. It transfers low-power radio frequency (RF) signals to measure dynamic rotor vibration and shaft position using eddy current technology.
Q:What does the "NSv" designation mean for application?
A:NSv stands for Narrow Side View. This transducer hardware is specialized for tight, restricted spaces (such as counterbore limitations) or small target areas like shafts under 51 mm (2 inches). It is frequently deployed on centrifugal air compressors and refrigeration units.

Q:Can I use this cable with standard 5 mm or 8 mm 3300 XL probes?
A:No. The NSv system operates on different electrical constraints and has a unique linear range profile (1.5 mm / 60 mils). You must explicitly match 3300 NSv probes, 3300 NSv extension cables, and 3300 XL NSv Proximitor Sensors together for accurate scale factor outputs (7.87 V/mm or 200 mV/mil). Refer to the 3300 XL NSv Transducer System Datasheet to verify proper system mixing limits.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：330930-040-05-00
Cable Length Option	4.0 meters (13.1 feet)
Agency Approval Option	Not Required
Output resistance	50 Ω
Extension cable capacitance	69.9 pF/m (21.3 pF/ft) typical
Extension Cable Material	75 Ω coaxial, fluoroethylene propylene (FEP) insulated.
System Weight (typical）	45 g/m (0.5 oz/ft)
Operating and Storage Temperature	-52°C to +177°C (-62°F to +351°F)
