990-05-50-03-01 | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
7.3x5.2x9.8cm
Weight:
0.44kg
Country of Origin: :
USA
Description:

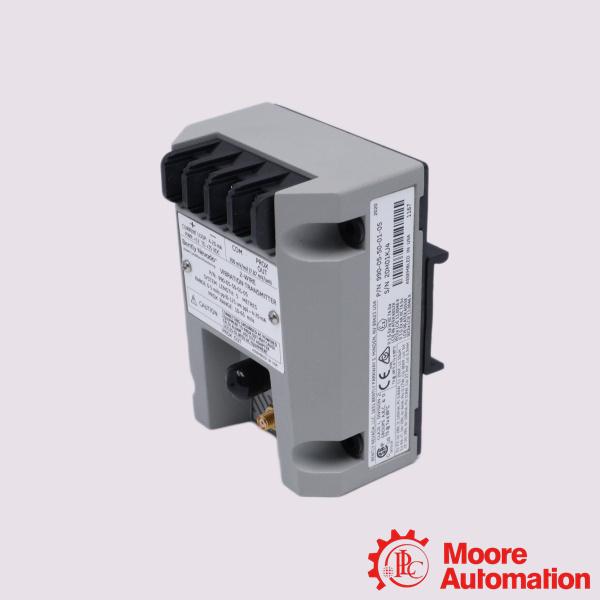

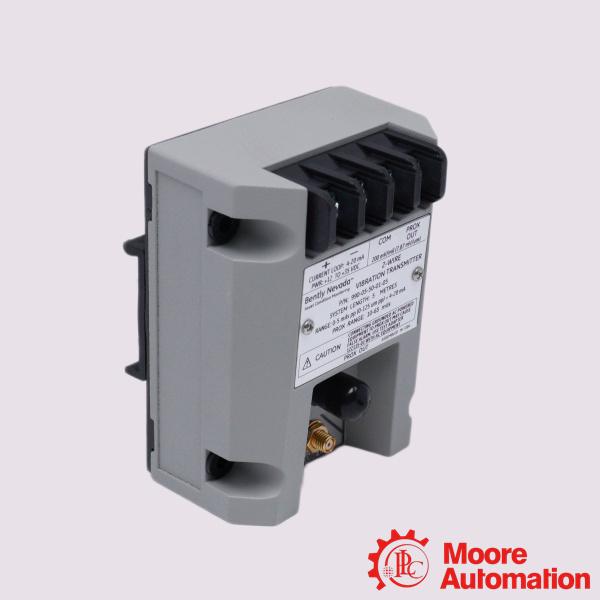

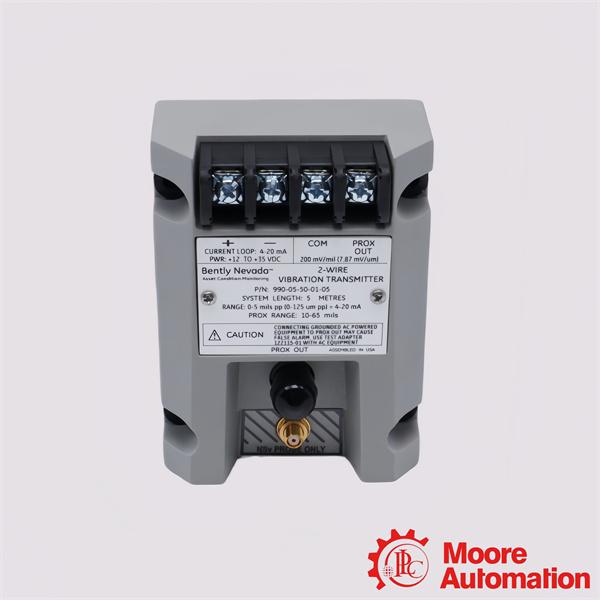

Bently Nevada 990-05-50-03-01 Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-05-50-03-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-05-50-03-01 Vibration Transmitter

Full Description:	The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-05-50-03-01 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Chemical & Petrochemical: Utilizing its Zone 2/Division 2 hazardous area ratings to securely monitor light machinery near processing zones.
Oil & Gas: Deployed on auxiliary gas handling and lubrication skid pumps.
Power Generation: Integrated into plant-balance equipment like water pumps and cooling fans.
Water & Wastewater Treatment: Ensuring automated protection on continuous-duty distribution pumps.

Frequently Asked Questions (FAQ)

Q:Does this transmitter require a separate Proximitor sensor?
A:No. The 990 series features an integrated Proximitor sensor built directly into the transmitter housing. You plug the probe's extension cable directly into the coaxial connector on the transmitter, removing the need for an external driver unit.
Q:How do I capture dynamic wave data for diagnostic testing?
A:The 990 transmitter includes non-isolated "PROX OUT" and "COM" terminals, alongside a dedicated coaxial BNC connector. You can attach a portable data collector or oscilloscope to these terminals to extract unconditioned gap voltage and dynamic vibration wave signals without interrupting the primary 4-20 mA loop.

Q:How should the wiring shield be grounded?
A:To avoid introducing loop-induced measurement noise, signal input wiring must maintain continuous shielding from the probe head to the transmitter. The shield must be terminated at a single-point ground reference (typically at the control system/DCS side), and must never be grounded at both ends.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：990-05-50-03-01
Full-scale Option	0-5 mils pp (0-125 μm pp)
System Length Option	5.0 meters (16.4 feet)
Mounting Option	DIN clips and screws
Agency Approval Option	CSA Division 2
Power	Requires +12 to +35 Vdc input at the transmitter terminal
Current limiting	23 mA typical
Frequency response	5 Hz to 6,000 Hz +0, 3 dB
Minimum target size	9.5 mm (0.375 in) diameter
