190501-01-99-04 | Bently Nevada Velomitor CT Velocity Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
8.3x3.5x3.2cm
Weight:
0.3kg
Country of Origin: :
USA
Description:

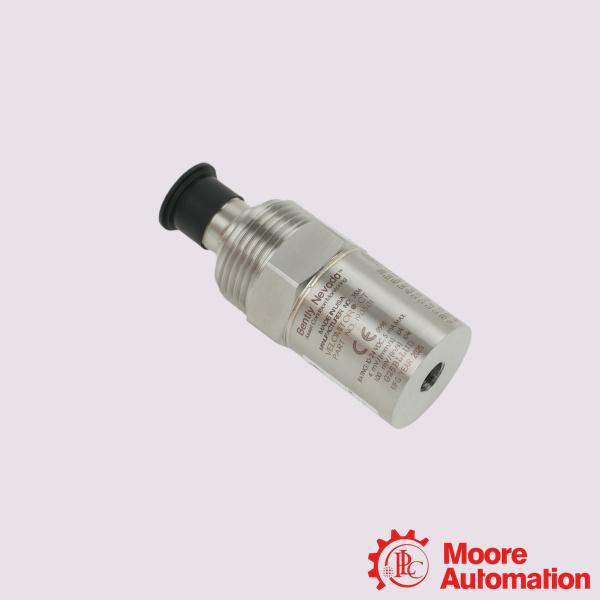

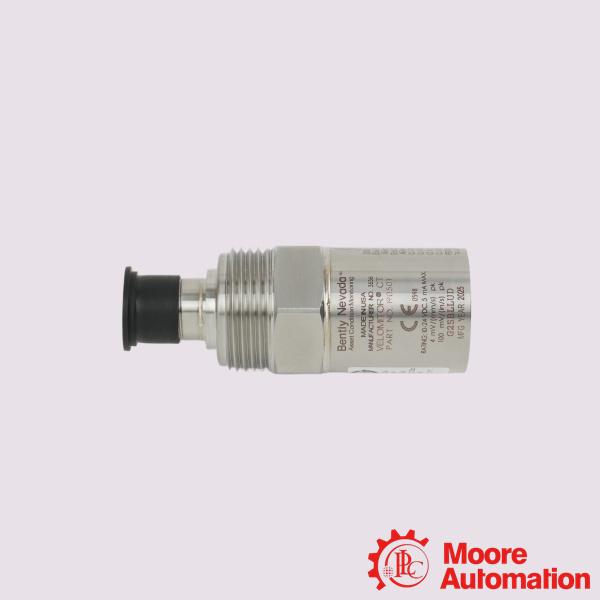

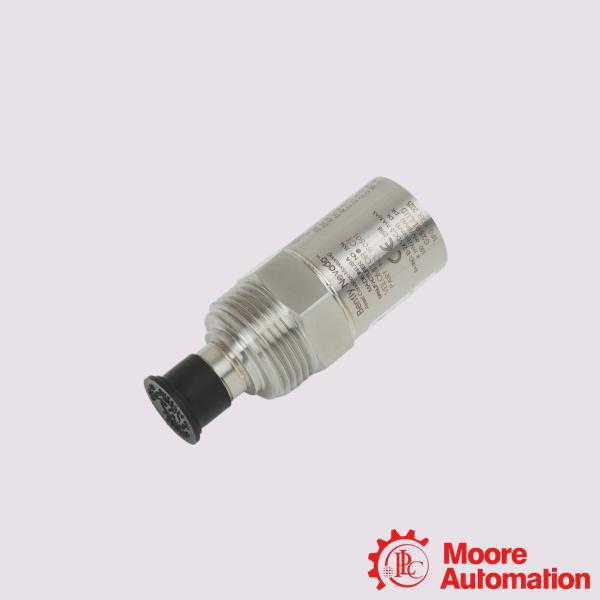

Bently Nevada 190501-01-99-04 Velomitor CT Velocity Transducer

Inquiry now

Mfr. Part Number:	190501-01-99-04

Manufacturer:	Bently Nevada

Description:	Bently Nevada 190501-01-99-04 Velomitor CT Velocity Transducer

Full Description:	The Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 190501-01-99-04 Velomitor CT Velocity Transducer is a low-frequency version of our standard Velomitor Piezo-velocity Sensor. Its design specifically measures casing vibration velocity on cooling tower and air-cooled heat-exchanger fan assemblies that operate at or above 90 rpm (100 to 300 rpm typical). The Velomitor CT Transducer can measure vibration amplitudes at these frequencies as well as the vibration frequencies generated by the fan motor and speed reducer.

Application:

Petrochemical & Oil Refining: Monitoring critical cooling loops and heat dissipation equipment in volatile processing environments.
Power Generation: Coal-fired, combined-cycle, and geothermal plants utilizing heavy industrial cooling towers.
Chemical Processing & Fertilizer Plants: Tracking structural degradation on low-frequency rotating utility equipment.
Heavy Manufacturing: Pulp and paper, steel mills, and wastewater treatment facilities that rely on continuous plant-wide asset monitoring.

Frequently Asked Questions (FAQ)

Q:What are the main applications for this sensor?
A:The sensor is explicitly engineered to monitor low-speed machinery operating at or above 90 RPM (typically 100 to 300 RPM). It is primarily deployed on cooling tower fan assemblies and air-cooled heat exchangers to detect imbalances, mechanical looseness, and gear defects.
Q:Does it require a separate proximity probe or driver?
A:No. Unlike standard proximity systems, the 190501 is a stud-mounted sensor that measures absolute casing vibration directly. It integrates internal electronics to output a velocity signal, but it must be paired with compatible vibration monitors like the Bently Nevada 3500 System.

Q:What is the proper installation mounting torque?
A:The sensor should be torqued precisely to 4.5 N-m ± 0.6 N-m (40 in-lbf ± 5 in-lbf). Improper torque or an uneven mounting surface (requires a minimum 33 mm diameter flat space) will cause false readings or loss of signal tracking.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：190501-01-99-04
Mounting Hardware Option	Stud 3/8-in 24 to 3/8-in 24
Connection Option	Unit with included 32-foot cable
Sensitivity	3.94 mV/mm/s (100 mV/in/s) ±5%
Transverse Response	Less than 5% of the axial sensitivity
Dynamic Output Impedance	<400 Ω typical
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-40°C to +100°C (-40°F to +212°F)
