990-05-50-03-00 | Bently Nevada Vibration Transmitter

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10x7.4x5.8cm
Weight:
0.5kg
Country of Origin: :
USA
Description:

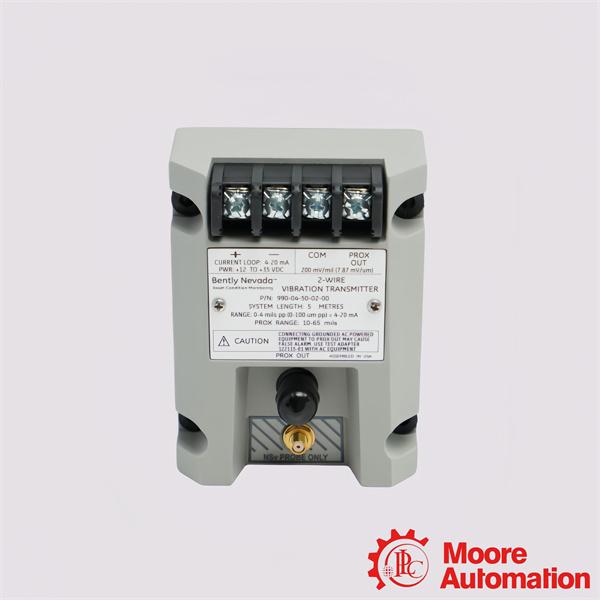

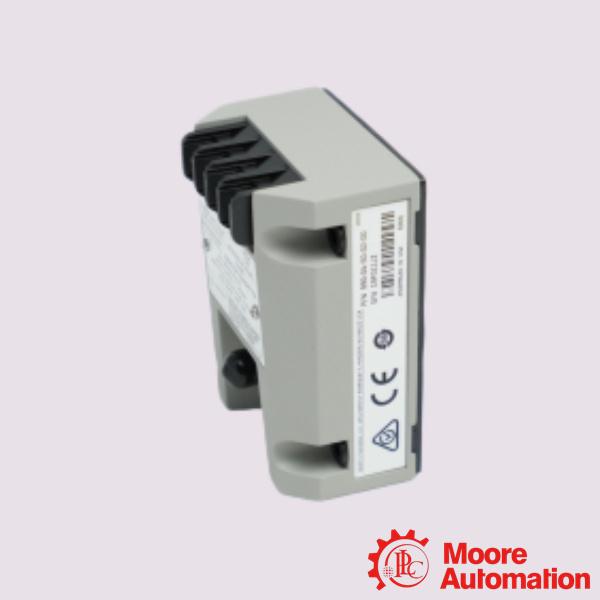

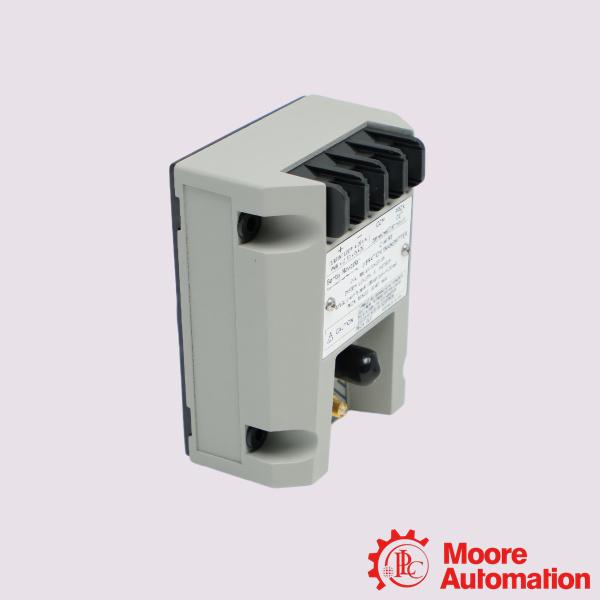

Bently Nevada 990-05-50-03-00 Vibration Transmitter

Inquiry now

Mfr. Part Number:	990-05-50-03-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 990-05-50-03-00 Vibration Transmitter

Full Description:	The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 990-05-50-03-00 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Application:

Power Generation: Deployed on balance-of-plant (BOP) machinery such as boiler feed pumps and small forced-draft fans.
Water & Wastewater Treatment: Protects continuous-duty water lift pumps, aeration blowers, and high-pressure filtration systems.
Chemical & Petrochemical Processing: Ideal for raw material feed pumps and compact pneumatic delivery systems where reliable asset protection is critical.
Oil & Gas (Downstream & Midstream): Used for auxiliary pumps and small air compressors on refining blocks and transport pipelines.

Frequently Asked Questions (FAQ)

Q: Which proximity probes are compatible with this transmitter?
A:This device is designed exclusively to work with the Bently Nevada 3300 NSv (Narrow Side View) non-contacting proximity probe and its matching extension cables. Because the 3300 NSv probe has a highly compact design, this combination is ideally suited for installations in tight spaces with minimal side clearance.
Q:Does it include an onboard Proximitor sensor?
A:Yes. The 990 transmitter features an integrated Proximitor sensor directly built into the housing. You do not need to buy or wire an external Proximitor unit; the 3300 NSv probe extension cable plugs directly into the transmitter's coaxial port.

Q:Can I extract raw dynamic data for diagnostic analysis?
A:Yes. For field troubleshooting, the unit provides non-isolated "PROX OUT" and "COM" coaxial terminals. You can connect portable machinery diagnostic equipment or an oscilloscope to these terminals to view raw gap voltage and real-time dynamic vibration waveforms

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：990-05-50-03-00
Full-scale Option	0-5 mils pp (0-125 μm pp)
System Length Option	5.0 meters (16.4 feet)
Mounting Option	DIN clips and screws
Agency Approval Option	Not required
Power	Requires +12 to +35 Vdc input at the transmitter terminal
Current limiting	23 mA typical
Frequency response	5 Hz to 6,000 Hz +0, 3 dB
Minimum target size	9.5 mm (0.375 in) diameter
