9200-06-05 9571-08 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10.2x4x4cm
Weight:
0.42kg
Country of Origin: :
USA
Description:
Bently Nevada 9200-06-05 9571-08 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-06-05 9571-08

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-06-05 9571-08 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

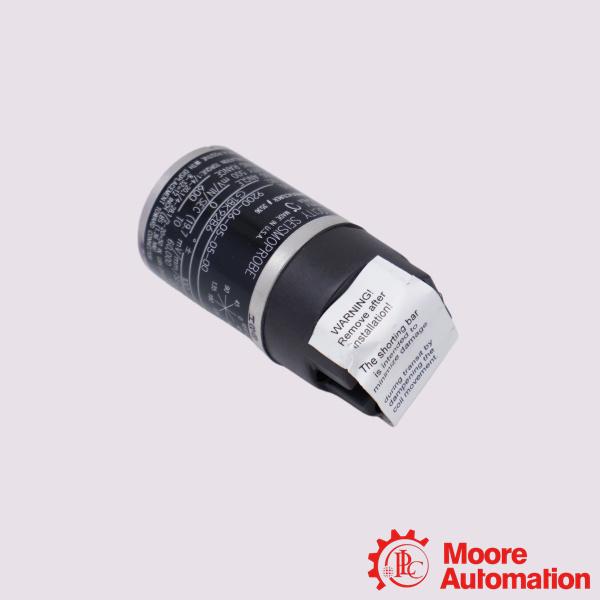

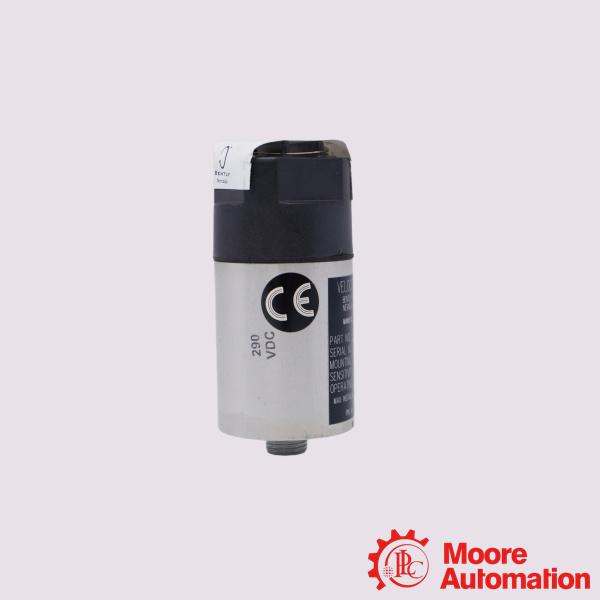

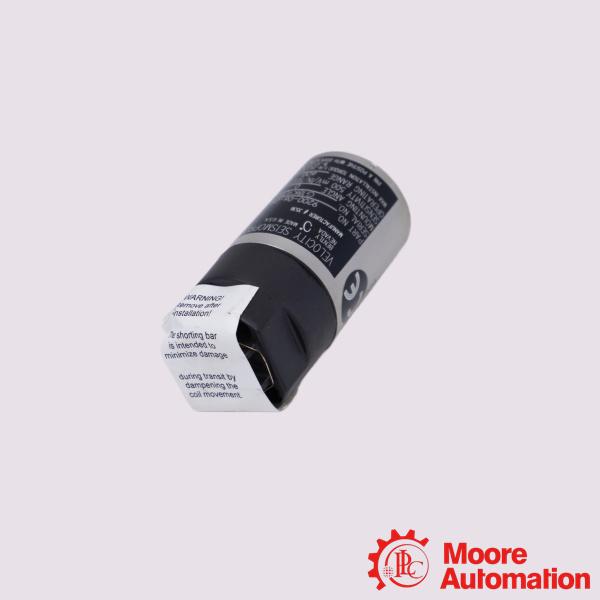

The Bently Nevada 9200-06-05 is a rugged, two-wire seismic probe velocity sensor used to measure the absolute vibration of rotating machinery housings. The 9571-08 is its matching 8-foot standard interconnect cable. The Bently Nevada seismic probe velocity sensor system measures the absolute vibration of bearing housings, housings, or structures relative to free space. This two-wire system consists of the sensor and the corresponding cable. The seismic probe series velocity sensors feature a two-wire moving-coil design, with the output voltage proportional to the sensor's vibration velocity.

Application:

Power Generation: Monitoring auxiliary rotating plant machinery, cooling tower fans, and water feed pumps.
Oil & Gas Refining: Found on midstream or downstream process pumps, air blowers, and secondary compressor casings.
Chemical and Petrochemical Processing: Tracking machine health across highly automated production lines where sudden sensor failure from structural shocks must be avoided.
Pulp, Paper, and Water Utilities: Employed in heavy structural monitoring and on slow-moving processing equipment where baseline vibrations exceed 10 Hz.

Frequently Asked Questions (FAQ)

Q:What does the 9571-08 part number mean?

A:The 9571 series represents Bently Nevada's standard 2-conductor, shielded 22 AWG interconnect cables. The -08 suffix specifies the exact cable length of 8 feet (approx. 2.4 meters). It features a 2-socket moisture-resistant female plug on the sensor side and terminal lugs on the monitor end.
Q:What is the maximum distance I can run the 9571 cable?
A:The maximum approved lead wire length between the 9200 Seismoprobe and a Bently Nevada 3500 or 3300 monitor is 305 meters (1,000 feet). Running lengths beyond this may induce signal frequency roll-off.

Q:How does signal polarity work on the connector?
A:Pin A goes positive with respect to Pin B when the machine casing velocity moves towards the cable connector.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-06-05 9571-08
Connector/Cable Option	Terminal block top mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
