9200-03-02-10-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10x4x4cm
Weight:
0.44kg
Country of Origin: :
USA
Description:

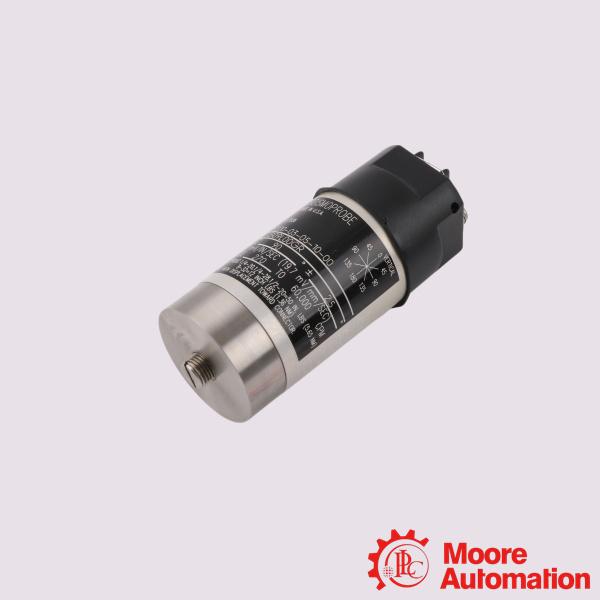

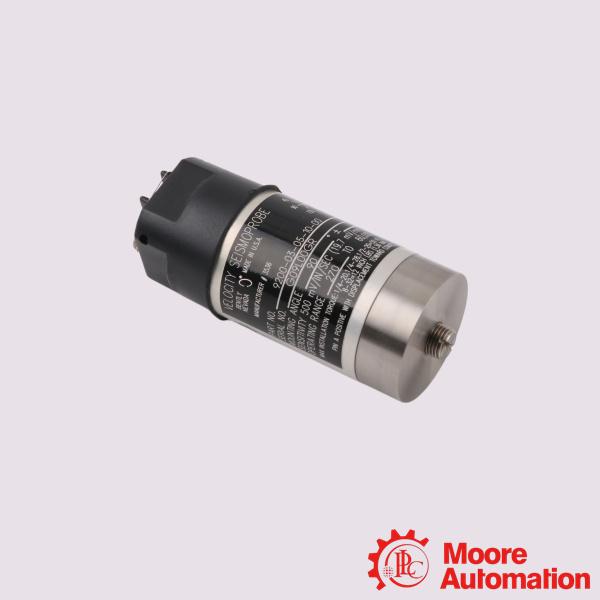

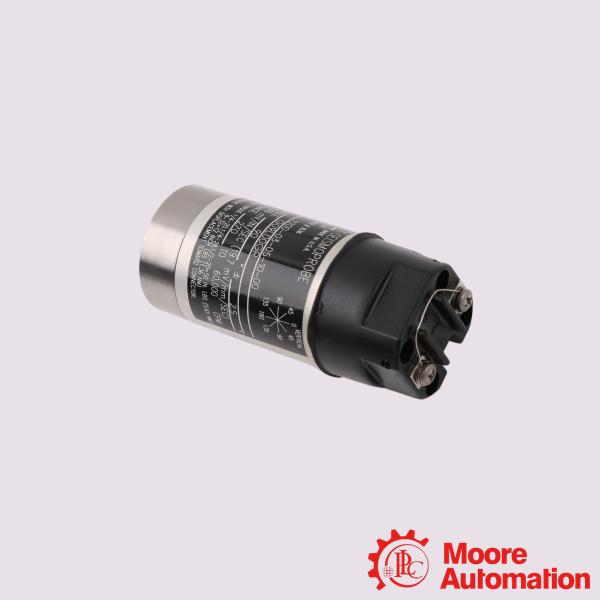

Bently Nevada 9200-03-02-10-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-03-02-10-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-03-02-10-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-03-02-10-00 is a dual-wire moving-coil seismic probe velocity sensor used to measure the absolute vibration of housings, structures, or bearing pedestals. The Bently Nevada seismic probe velocity sensor system is designed to measure the absolute vibration of bearing pedestals, housings, or structures relative to free space. This dual-wire system consists of a sensor and a matching cable. The seismic probe series velocity sensors utilize a dual-wire design and moving-coil technology, with a voltage output proportional to the sensor's vibration velocity.

Application:

Steam and Gas Turbine Casings: Monitors absolute structural vibration on large turbine bearing housings where solid-state electronics would fail from minor background structural taps.
Industrial Generators: Identifies unbalance, misalignment, and mechanical looseness across generator shaft bearings.
Hazardous Environment Pumps: Safely monitors massive hydrocarbon process pumps. The explosion-proof certifications prevent ignition risks in volatile atmospheres.
Wastewater Aeration Blowers: Ensures fans and continuous-duty blowers do not suffer catastrophic structural fatigue.

Frequently Asked Questions (FAQ)

Q:Does this sensor require external power?

A:No. Because it relies on moving-coil electro-magnetic technology, it generates its own voltage output directly proportional to vibration velocity. This makes it highly efficient for both permanent wiring and portable machinery diagnostics.
Q:What is the maximum allowable cable length?
A:The maximum distance between the 9200 transducer and a 3300 or 3500 monitor is 305 meters (1,000 feet). Exceeding this distance requires consulting the official manual due to high-frequency signal roll-off.

Q:Can I mount this sensor horizontally?
A:No. The "03" option signifies a strict vertical calibration (90° ± 2.5°). Mounting this specific unit horizontally or at an incorrect inclination will result in internal spring misalignment, rendering the velocity readings highly inaccurate.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-03-02-10-00
Connector/Cable Option	Side Mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Circular; M10X1 stud
Agency Approval Option	No Approvals
