9200-06-05-03-00 | Bently Nevada Two-wire Transducer

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
10.2x4x4cm
Weight:
0.42kg
Country of Origin: :
USA
Description:

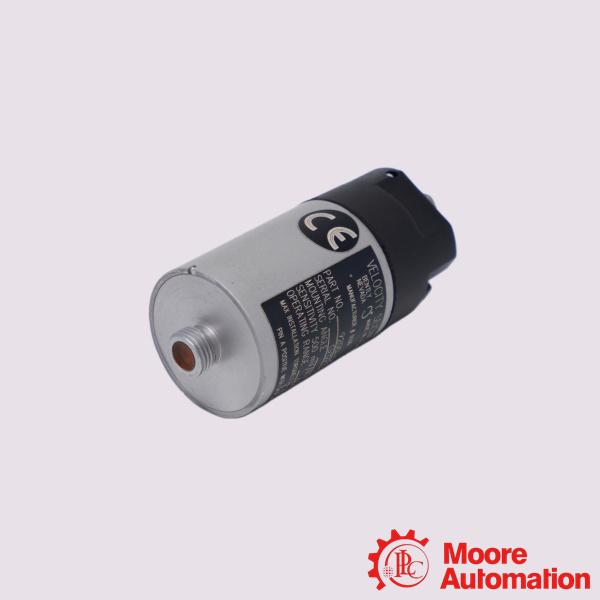

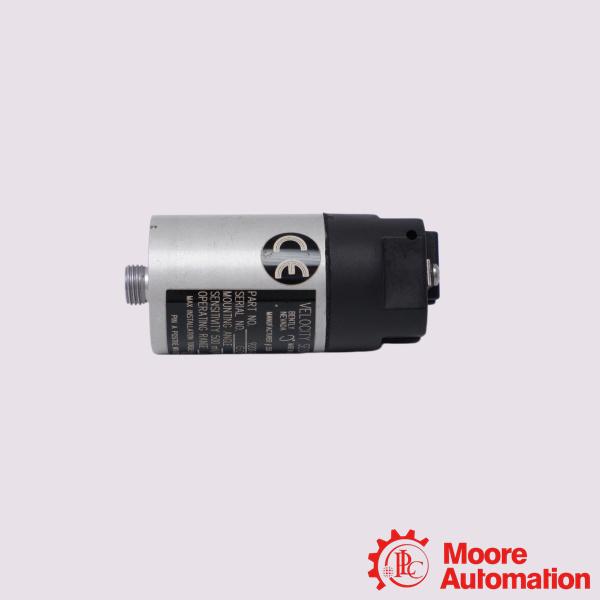

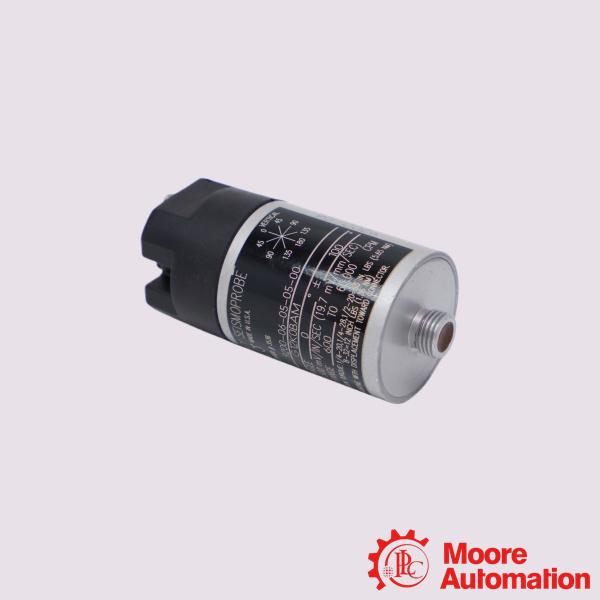

Bently Nevada 9200-06-05-03-00 Two-wire Transducer

Inquiry now

Mfr. Part Number:	9200-06-05-03-00

Manufacturer:	Bently Nevada

Description:	Bently Nevada 9200-06-05-03-00 Two-wire Transducer

Full Description:	Bently Nevad Seismoprobe Velocity Transducer Systems are designed to measure absolute (relative to free space) bearing housing, casing, or structural vibration.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The Bently Nevada 9200-06-05-03-00 is a dual-wire moving-coil seismic probe velocity sensor used to measure the absolute vibration of housings, structures, or bearing pedestals. The Bently Nevada seismic probe velocity sensor system is designed to measure the absolute vibration of bearing pedestals, housings, or structures relative to free space. This dual-wire system consists of the sensor and its matching cable. The seismic probe series velocity sensors utilize dual-wire moving-coil technology, and their output voltage is proportional to the vibration velocity of the sensor.

Application:

Steam and Gas Turbines: Monitors structural case vibrations and bearing housings to detect misalignment, unbalance, or rotor friction.
Generators: Measures casing stability and structural resonance while the unit is synchronized to the grid.
Large Cooling Fans: Tracks health across cooling towers where low frequencies (down to 10 Hz) are prevalent.
Large Water Supply Pumps: Placed on horizontal and vertical pumps to log steady-state vibration metrics.

Frequently Asked Questions (FAQ)

Q:Does the 9200-06-05-03-00 require external power?

A:No, it requires no external power source. The movement of the internal coil through the magnetic field self-generates the voltage signal, making it exceptionally reliable and useful for portable or remote vibration monitoring equipment.
Q:Is this sensor compatible with my existing machinery protection system?
A:Yes, it integrates natively into traditional continuous machinery monitoring infrastructures. It connects directly via a 2-conductor cable up to 305 meters long to standard monitors like the Bently Nevada 3500 Series or legacy 3300 systems.

Q:How does moving-coil technology differ from solid-state velocity sensors?
A:Moving-coil sensors use a mechanical spring-suspended coil around a permanent magnet to produce a voltage directly proportional to velocity. Because they lack integrated micro-electronics, they are significantly less sensitive to high-frequency structural shocks or accidental impacts compared to solid-state sensors.

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：9200-06-05-03-00
Connector/Cable Option	Terminal block top mount (no cable)
Cable operating temperature	-50˚C to 120˚C
Sensitivity Temperature Coefficient	0.2%/°C
Coil Resistance	1.25 kΩ ±5%
Locked Coil Inductance	125 mH, typical
Gasket Material	Neoprene
Minimum length	2.0 ft (0.6 m)
maximum length	99 ft (30 m)
Mounting Base Option	Rectangular flange
Agency Approval Option	No Approvals
