24765-03-01 | Bently Nevada dc LVDT Assembly

in stock#

Brand/ Manufacturer:
Bently Nevada
Dimensions:
25x11.6x9.2cm
Weight:
1.75kg
Country of Origin: :
USA
Description:

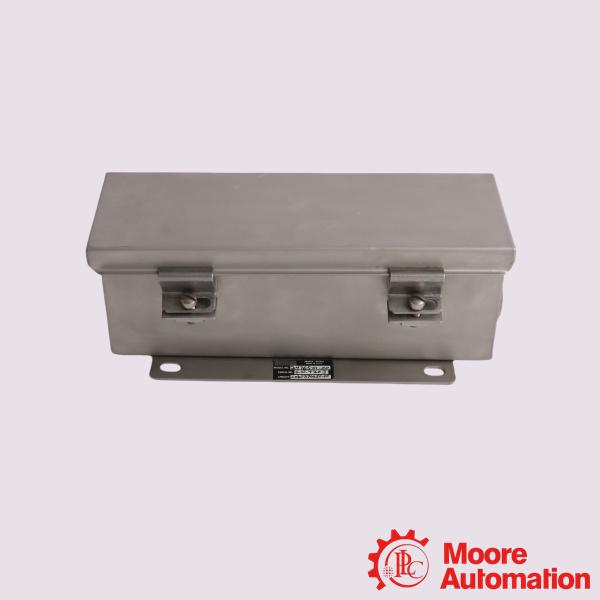

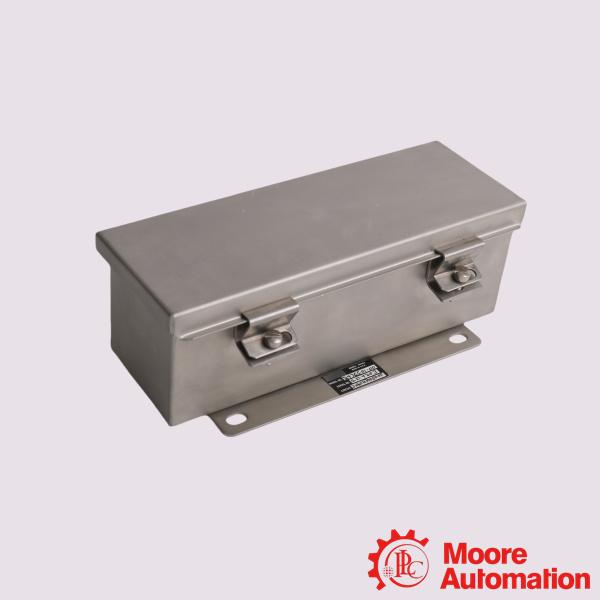

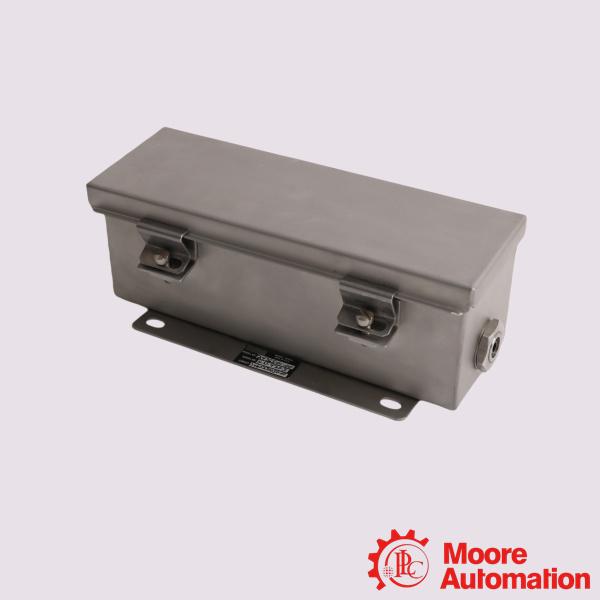

Bently Nevada 24765-03-01 dc LVDT Assembly

Inquiry now

Mfr. Part Number:	24765-03-01

Manufacturer:	Bently Nevada

Description:	Bently Nevada 24765-03-01 dc LVDT Assembly

Full Description:	This device is a casing expansion monitoring sensor specifically designed for large rotating machinery.

Status:	In stock

Click to get price : : plcinfo@mooreplc.com : +86 18020776786 : mooreplc

Moore Automation Limited is not affiliated with or a distributor for Bently Nevada. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.

Product Description:

The 24765-03-01 is a DC-powered casing expansion sensor assembly manufactured by Bently Nevada, belonging to the 24765 series casing expansion sensor system. Based on Linear Variable Differential Transformer (LVDT) technology, this product converts the thermal expansion displacement of the casing into an electrical signal through a mechanical connection between its probe and the machine casing. After electronic conditioning, the signal is output to the monitor for display and alarm processing.

Application:

Power Generation: Nuclear, thermal, and natural gas power facilities where steam turbine uptime is vital.
Oil & Gas / Petrochemical: Refineries and extraction plants that rely heavily on massive, continuously operating turbomachinery.
Aerospace & Research: Large-scale mechanical testing facilities and industrial aerodynamics labs.
Steam and Gas Turbines: Tracks the thermal expansion of the massive outer casing during start-up, operation, and cool-down cycles to prevent misalignments.

Frequently Asked Questions (FAQ)

Q:Why does the system output a negative voltage?
A:Legacy engineering choices from early solid-state development favored P-N-P transistors, which require negative bias voltages (typically a -24 VDC supply to the Proximitor). As the probe gap increases, the output voltage becomes more negative.
Q:Can I mix 5 mm and 8 mm components?
A:Yes, 3300 XL 8 mm components are both physically and electrically interchangeable with older non-XL 3300 5 mm components, provided the total system loop length matches.

Q:Can I use a 9.0-metre probe with any extension cable?
A:No. The Proximitor sensor is calibrated for a specific total electrical length (usually 5.0 or 9.0 metres). Since this probe has a total length of 9.0 metres, it must plug directly into a 9.0m Proximitor Sensor without using an extra extension cable. Adding an extension cable will ruin the system's calibration

If you need other brands products like below, please feel free write email to plcinfo@mooreplc.com

You will get Best price and Professional service (24/7)

Detailed Parameter	Part Number：24765-03-01
Input Power	+24 Vdc, 30 mA minimum
Scale Facto	0.143 V/mm (3.63 V/in)
Linear Range	± 51 mm (±2.00 in)
-3 dB Frequency	10 Hz
Output Impedance	7 kΩ. nominal, all models
Minimum Load Resistance	200 kΩ
Operating Temperature	-18 °C to +71 °C(0 °F to +160 °F)
Storage Temperature	-54 °C to +93° C(-65 °F to +200 °F)
